Front Passenger Airbag Assembly: Removal

PRECAUTION
CAUTION: Be sure to read "PRECAUTION " thoroughly before servicing (See AIRBAG SYSTEM ).
DISCONNECT BATTERY NEGATIVE TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.
REMOVE FRONT DOOR SCUFF PLATE (w/o Illumination) (See REMOVAL )
REMOVE FRONT DOOR SCUFF PLATE (w/ Illumination) (See REMOVAL )
REMOVE FRONT DOOR OPENING TRIM COVER RH (See REMOVAL )
REMOVE INSTRUMENT SIDE PANEL RH (See REMOVAL )
REMOVE NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE FRONT PASSENGER SIDE AIRBAG ASSEMBLY (See REMOVAL )
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See REMOVAL )
DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY
1. Disconnect the connector.
REMOVE INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY
HINT:

Refer to the procedures up to "REMOVE INSTRUMENT"

PANEL SAFETY PAD SUB-ASSEMBLY " (See REMOVAL ).

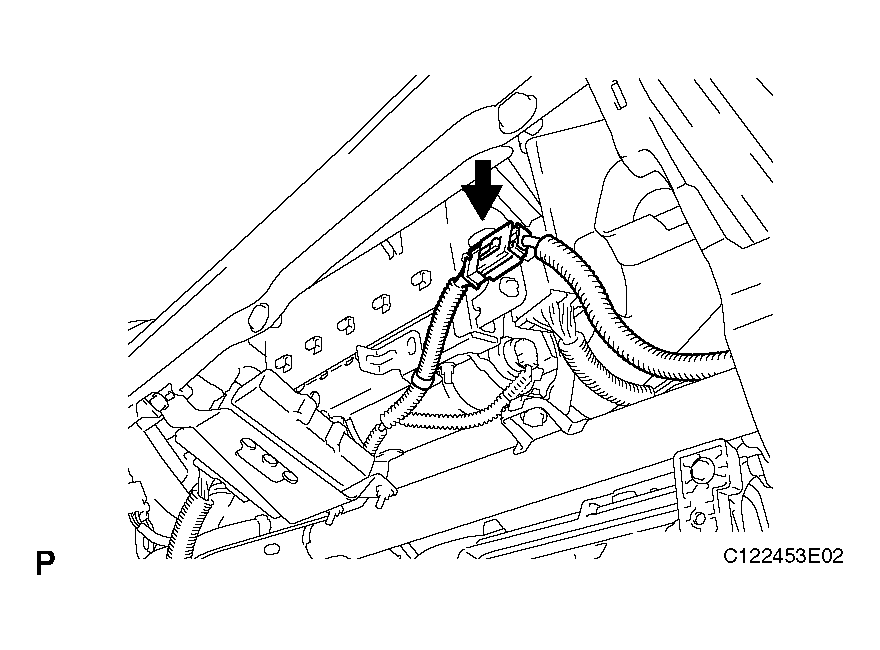

Fig 1: Identifying Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER TO REGISTER NO.3 DUCT (See DISASSEMBLY )
REMOVE SIDE DEFROSTER NOZZLE NO.2 DUCT (See DISASSEMBLY )
REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
1. Remove the 2 screws.

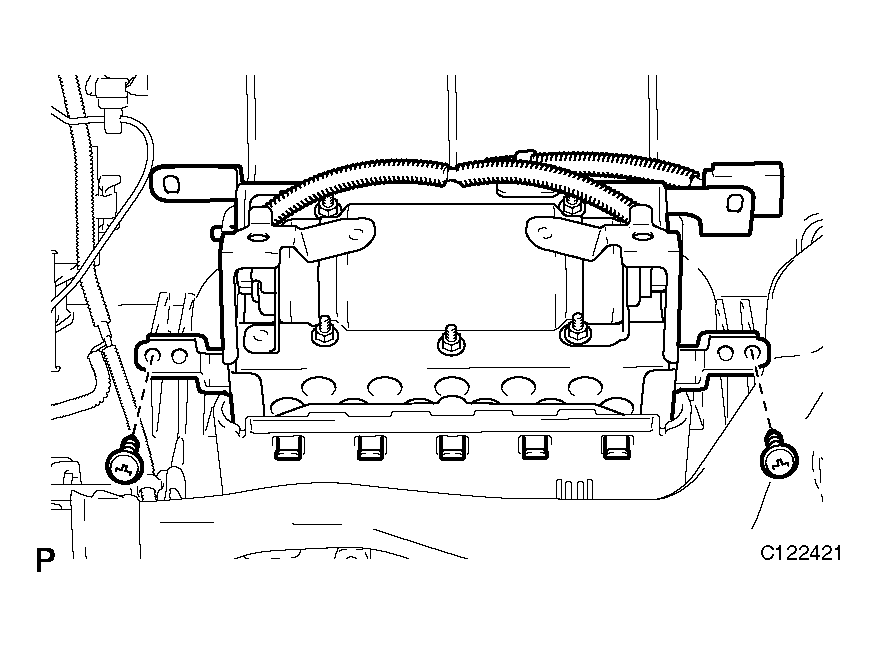

  Fig 2: Identifying Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 5 hooks (A).
3. Disengage the 5 hooks (B) and remove the front passenger airbag assembly from the instrument panel.

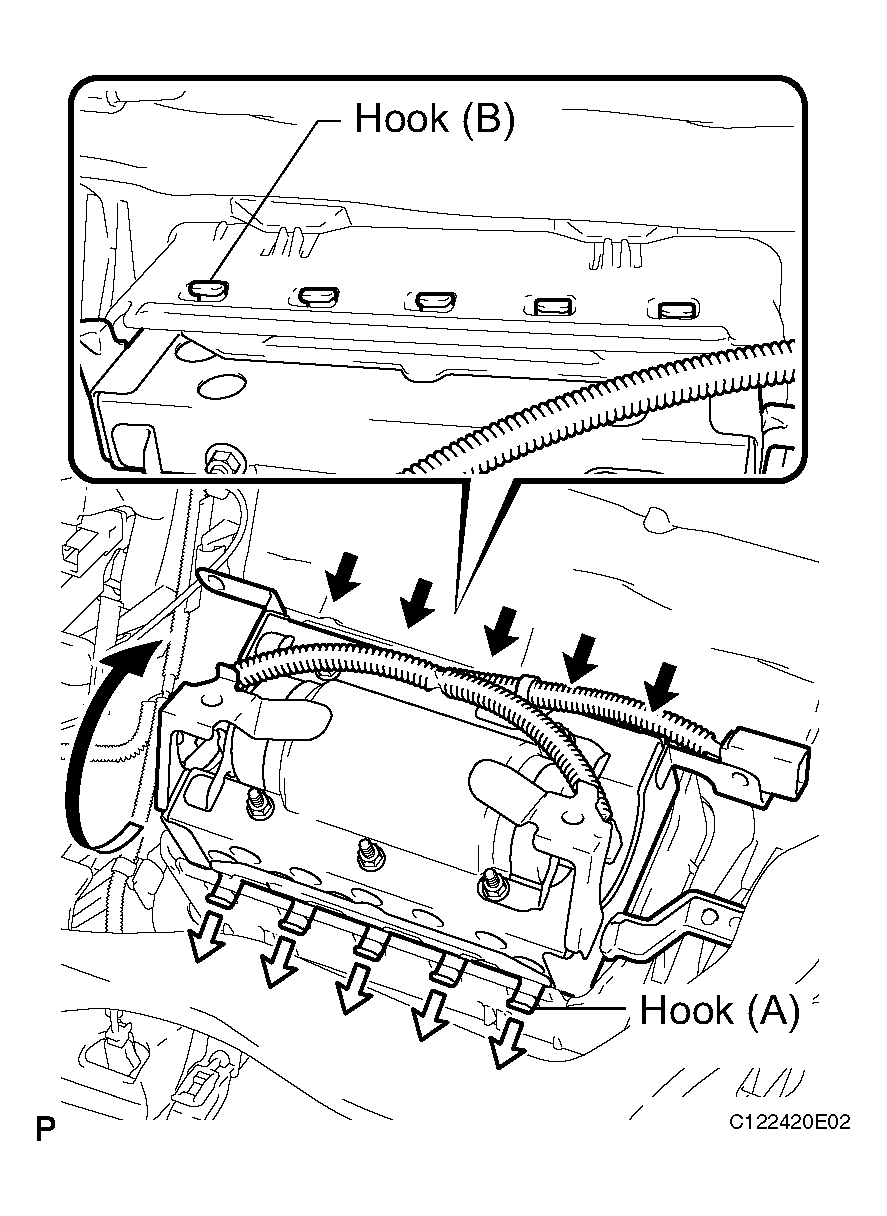

  Fig 3: Removing Front Passenger Airbag Assembly From Instrument Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the 2 connectors and remove the 2 clamps.
5. Remove the instrument panel wire assembly from the front passenger airbag assembly.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

Fig 4: Identifying Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
