Steering Pad: Removal

PRECAUTION
CAUTION: Be sure to read "PRECAUTION " thoroughly before servicing (See AIRBAG SYSTEM ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
(See AIRBAG SYSTEM )

CAUTION: Wait for 90 seconds after disconnecting cable to prevent the airbag deployment.
REMOVE LOWER NO. 3 STEERING WHEEL COVER
1. Using a screwdriver, remove the steering wheel No.3 cover lower.
  HINT:

  Tape up the screwdriver tip before use.

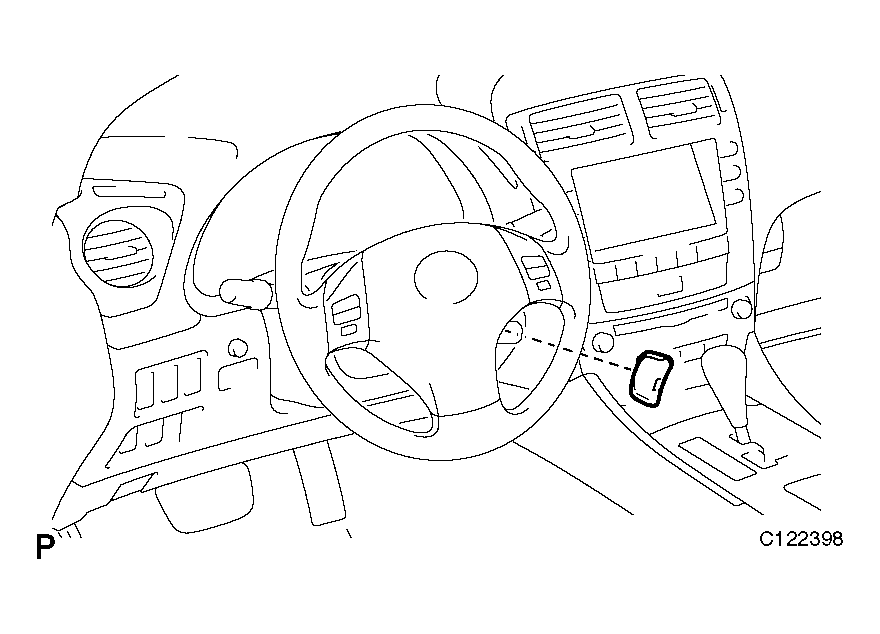

Fig 1: Identifying Steering Wheel No 3 Cover Lower
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER NO. 2 STEERING WHEEL COVER
1. Using a screwdriver, remove the steering wheel No.2 cover lower.
  HINT:

  Tape up the screwdriver tip before use.

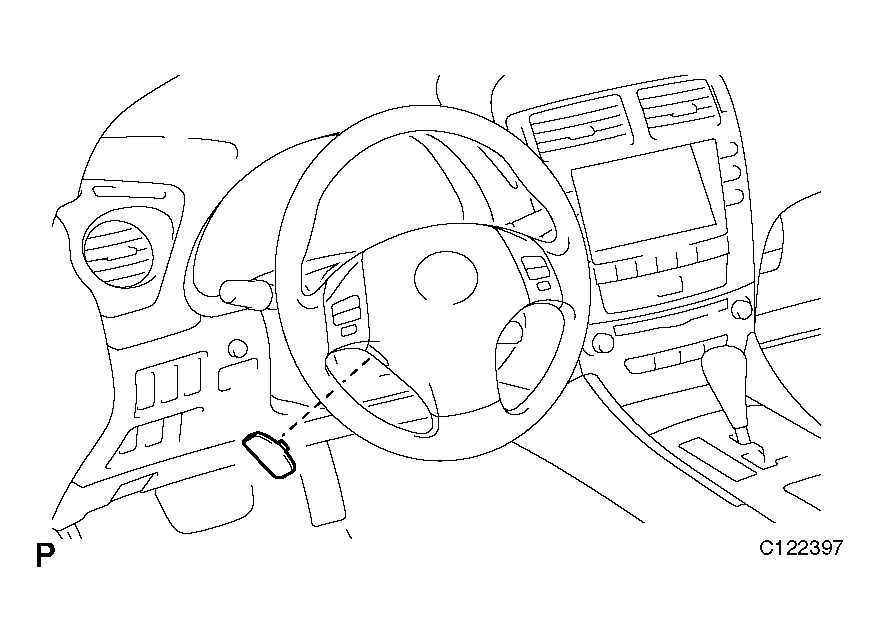

Fig 2: Identifying Steering Wheel No 2 Cover Lower
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING PAD
1. Using a "torx " socket wrench (T30), loosen the 2 "torx " screws until the groove along the screw circumference catches on the screw case.

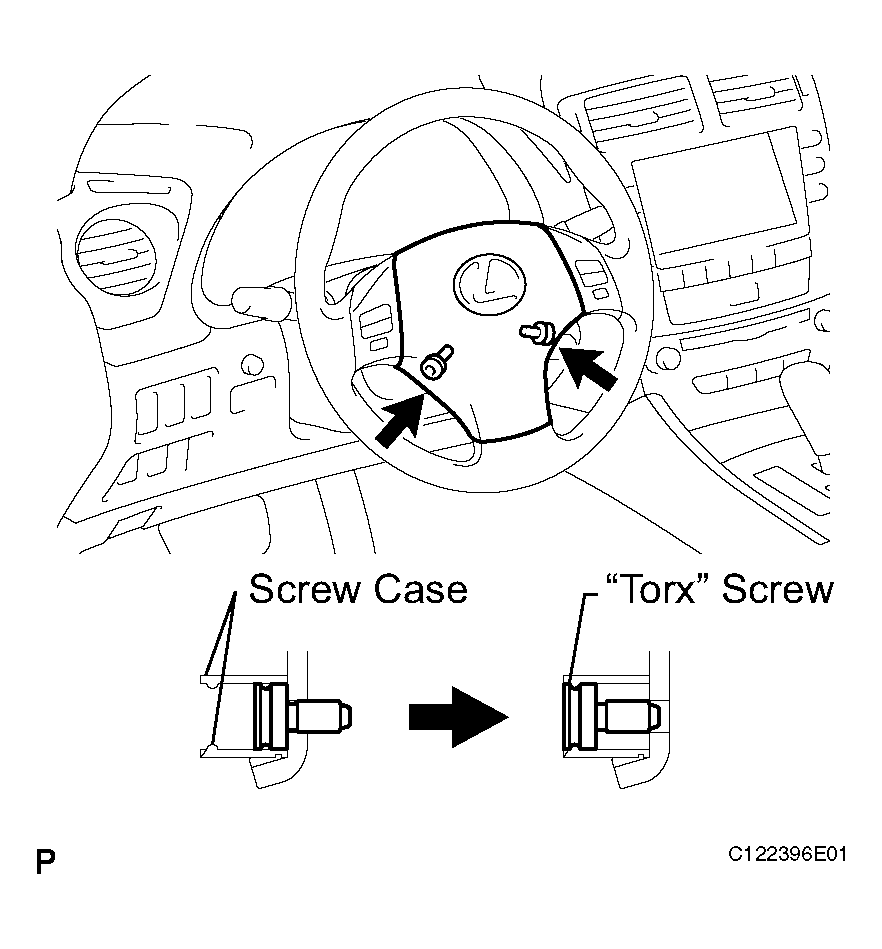

  Fig 3: Identifying Steering Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the steering pad from the steering wheel assembly and support the steering pad with one hand as shown in the illustration.
  NOTE: When removing the steering pad, do not pull the airbag wire harness.
3. Disconnect the horn connector.
4. Disconnect the 2 connectors from the steering pad.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
5. Remove the steering pad.

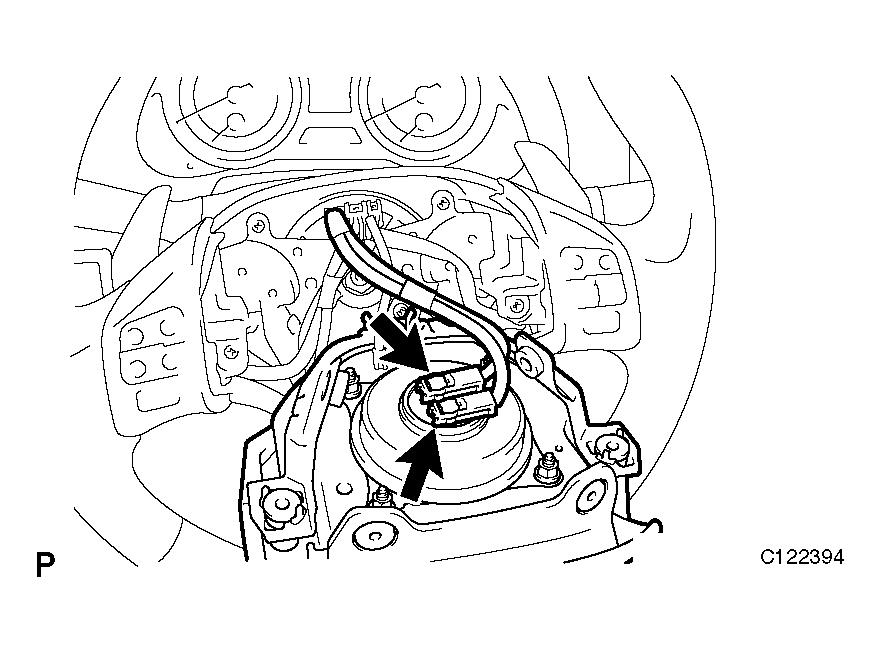

Fig 4: Identifying Connectors For Steering Pad
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
