Instrument Panel Safety Pad: Removal
- PRECAUTION
(See PRECAUTION )
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See PRECAUTION ).
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
- Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
- Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
- REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)

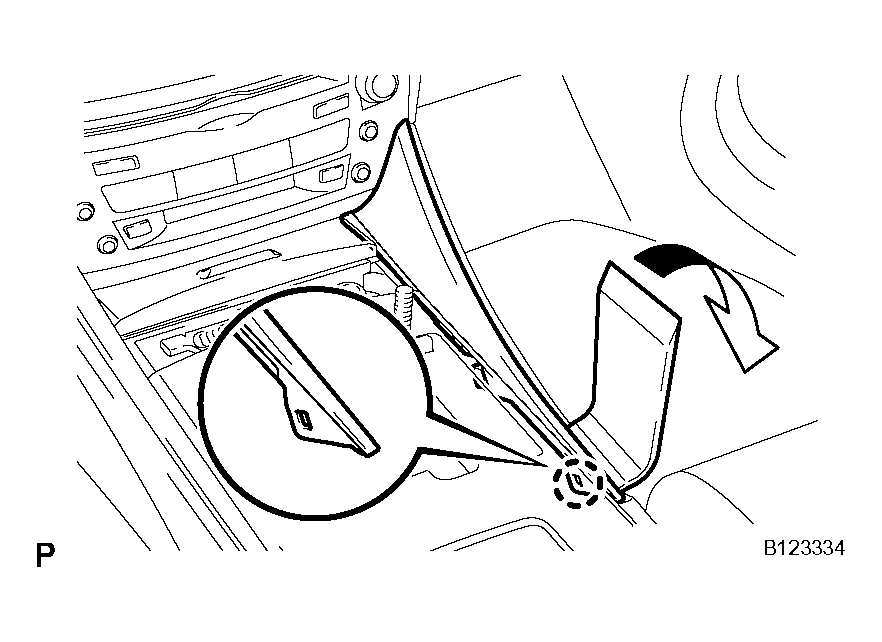

- Using a molding remover, disengage the claw.
- Pull the upper No. 1 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.

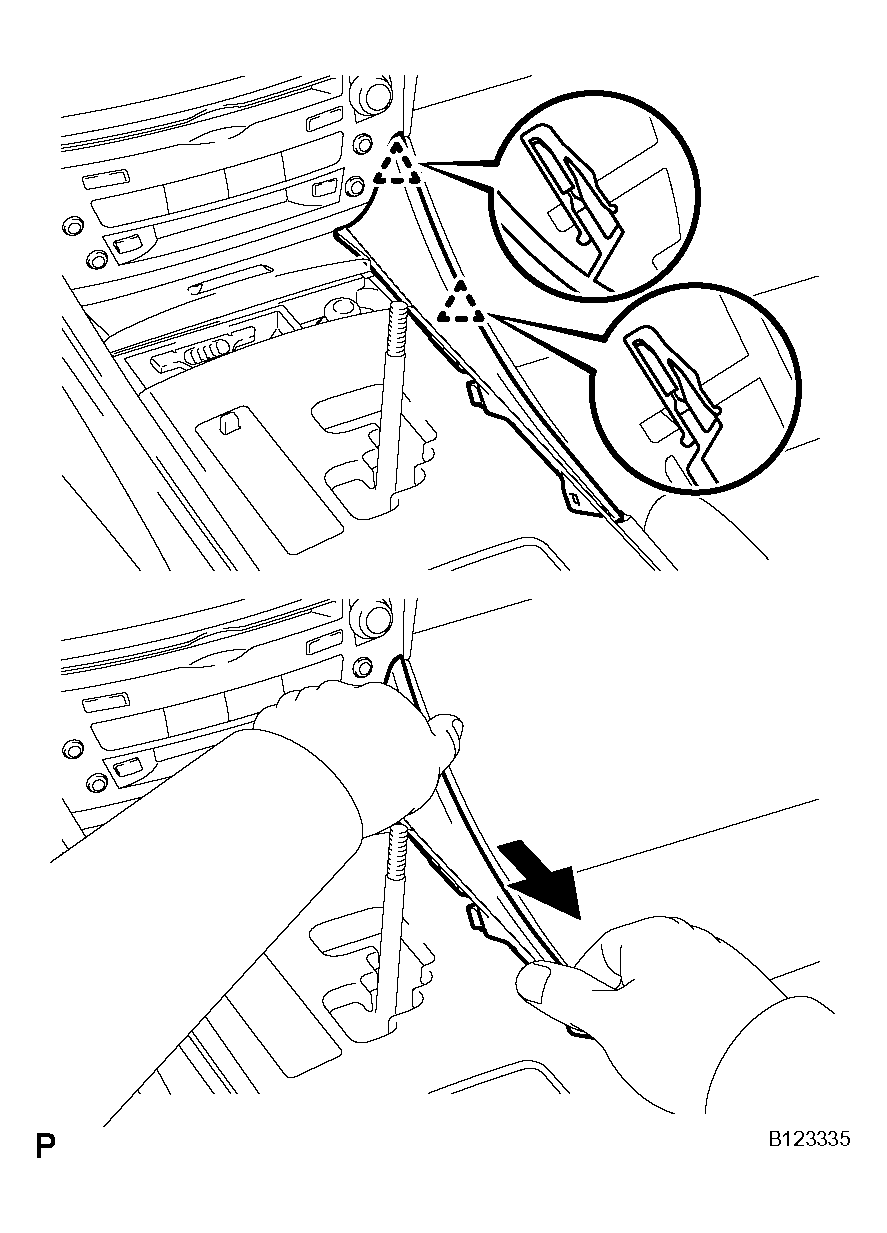

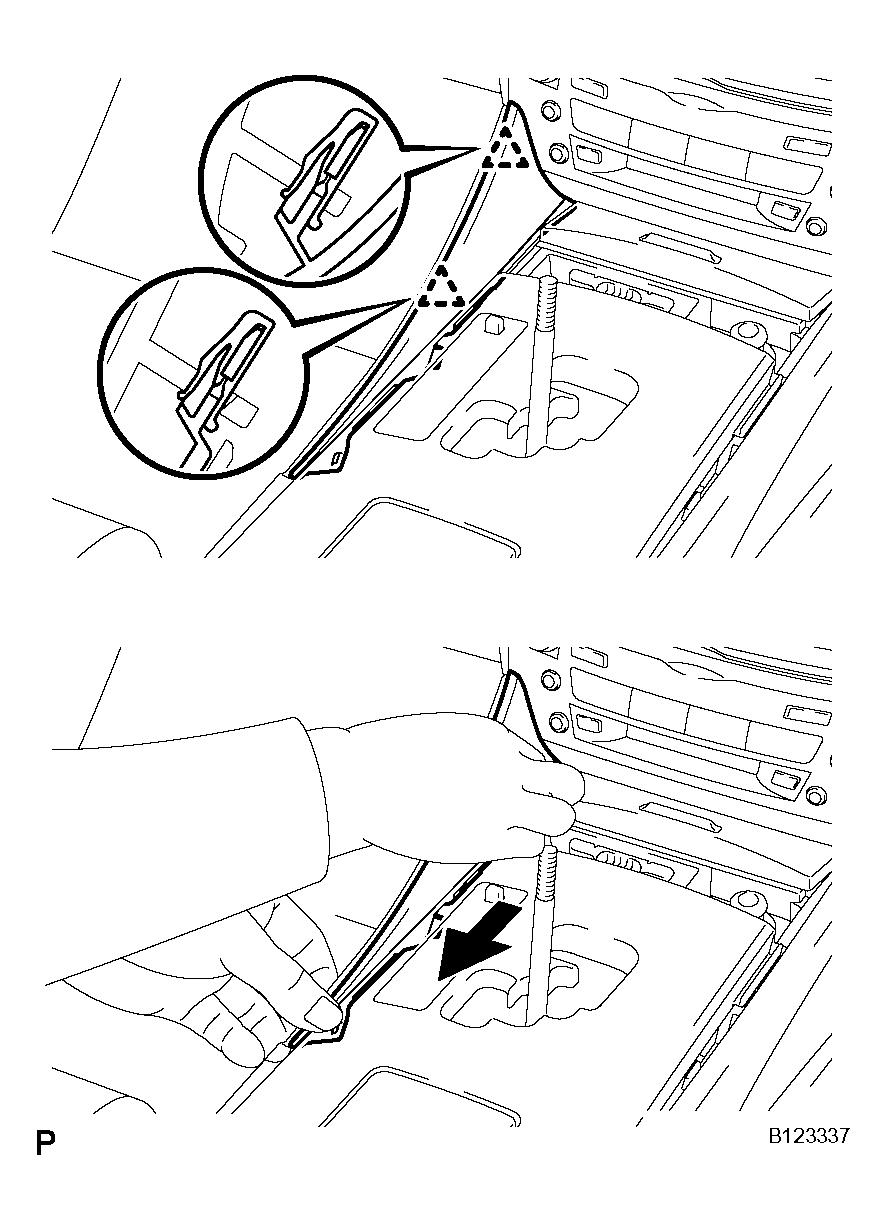

- REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
- Using a molding remover, disengage the claw.
- Pull the upper No. 2 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.

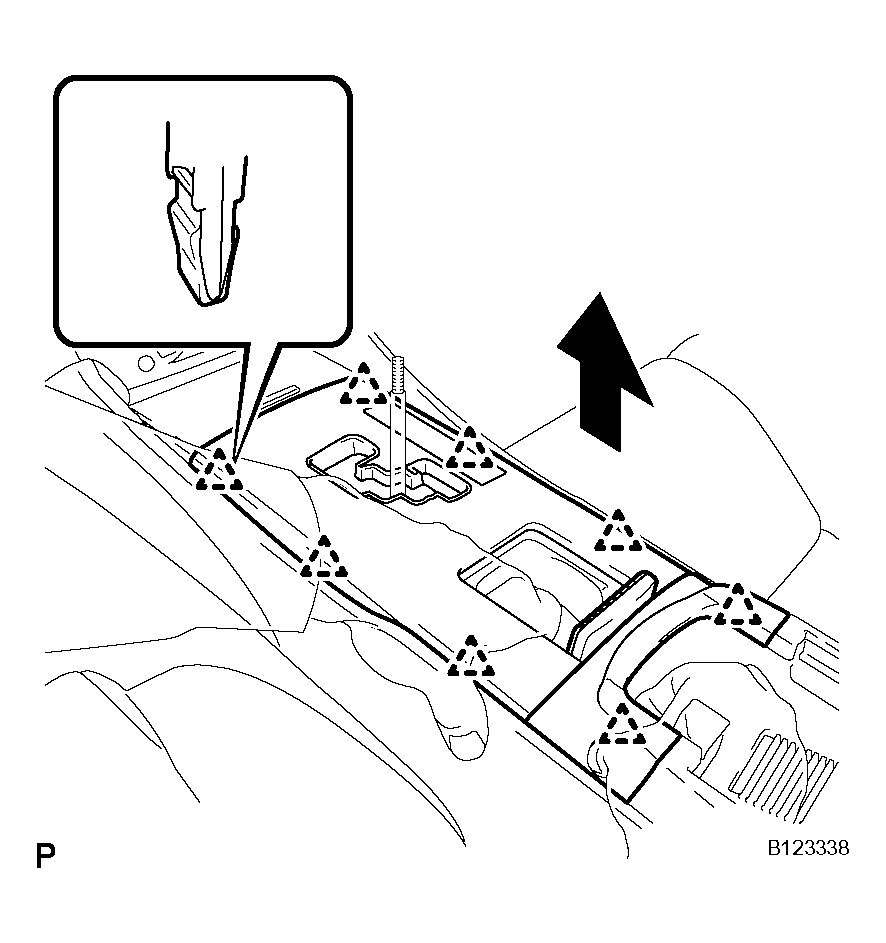

- REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
- Disengage the 8 clips.
- Disconnect the connectors and remove the console panel sub-assembly.

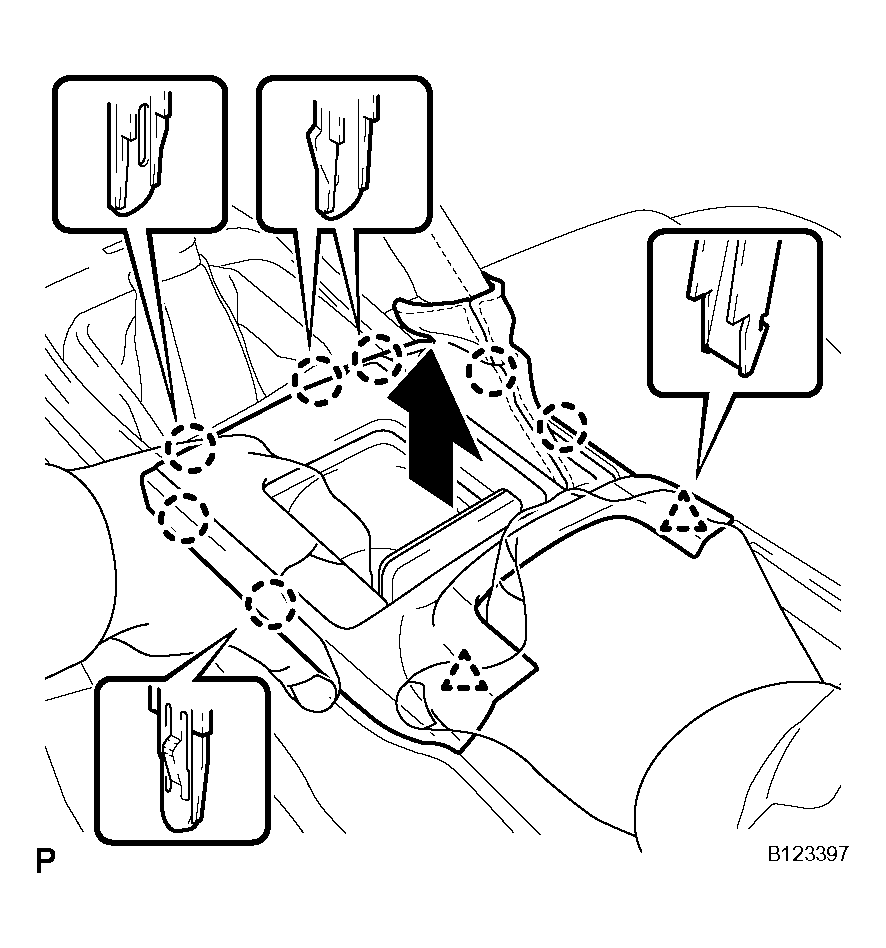

- REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
- Open the snap.
- Disengage the 7 claws and 2 clips, and then remove the rear console panel sub-assembly.

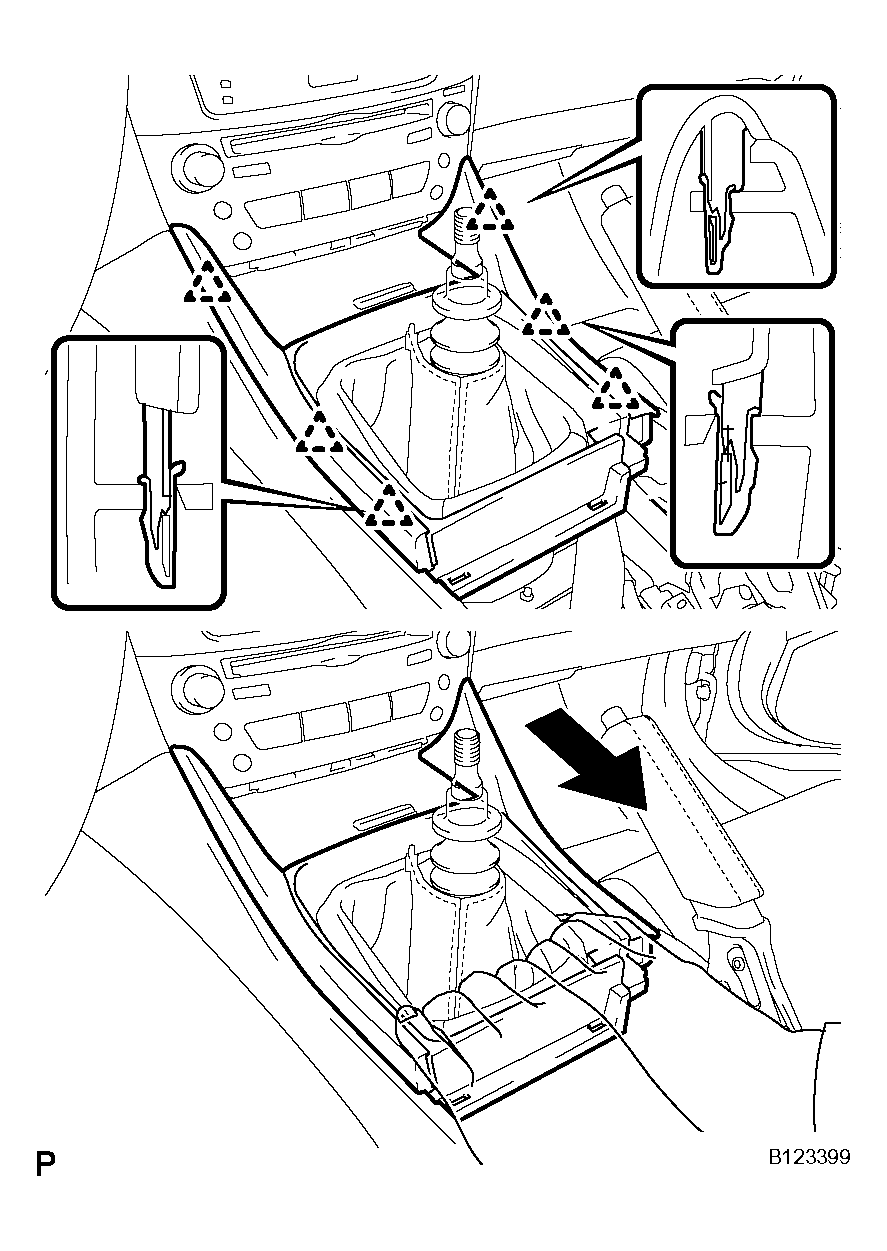

- REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
- Open the snap.
- Pull the front console panel sub-assembly in the direction indicated by the arrow to disengage the 6 clips and remove it.

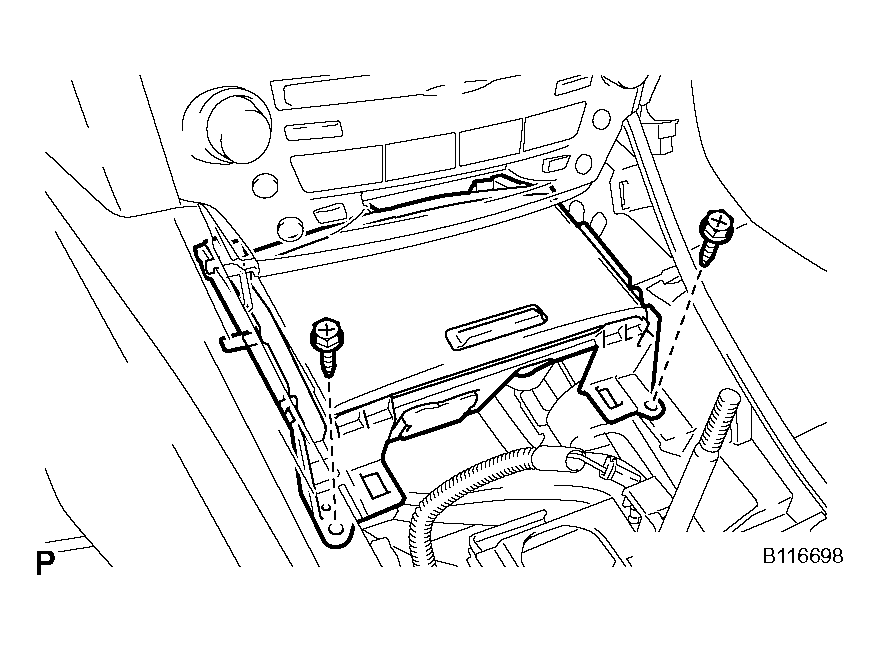

- REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY
- Remove the 2 screws < F >.

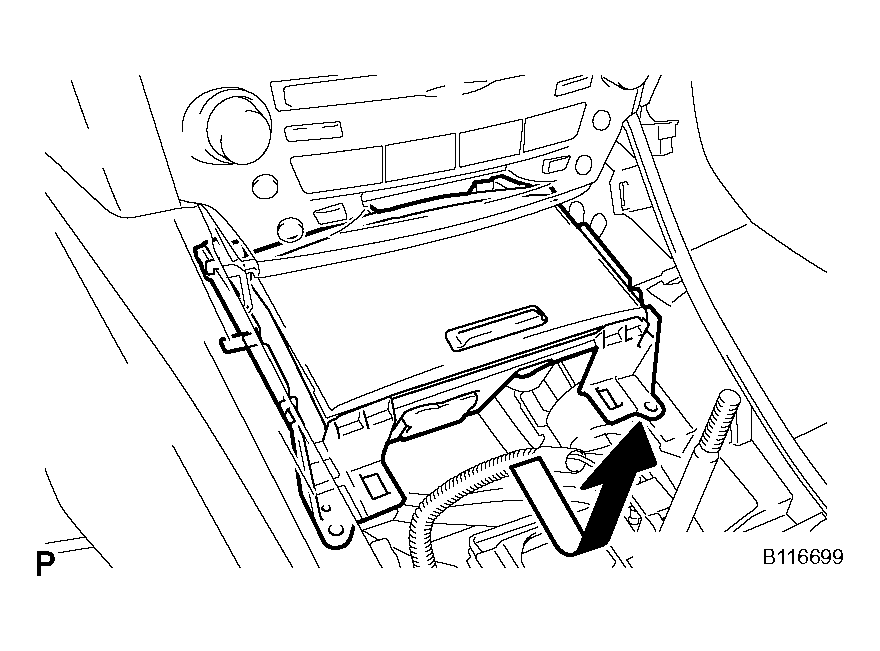

- Pull the front ash receptacle sub-assembly in the direction indicated by the arrow to disconnect the connectors and remove it.

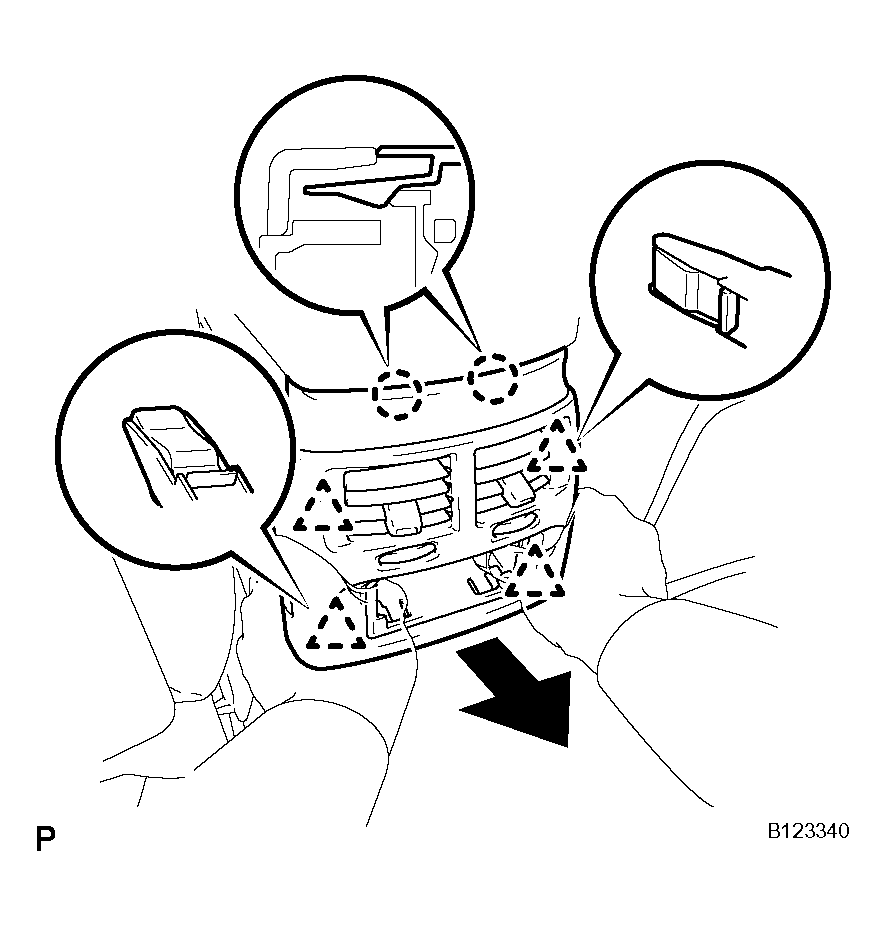

- REMOVE CONSOLE BOX REGISTER ASSEMBLY
- Remove the rear ash receptacle assembly.
- Disengage the 2 claws and 4 clips, and then remove the console box register assembly.

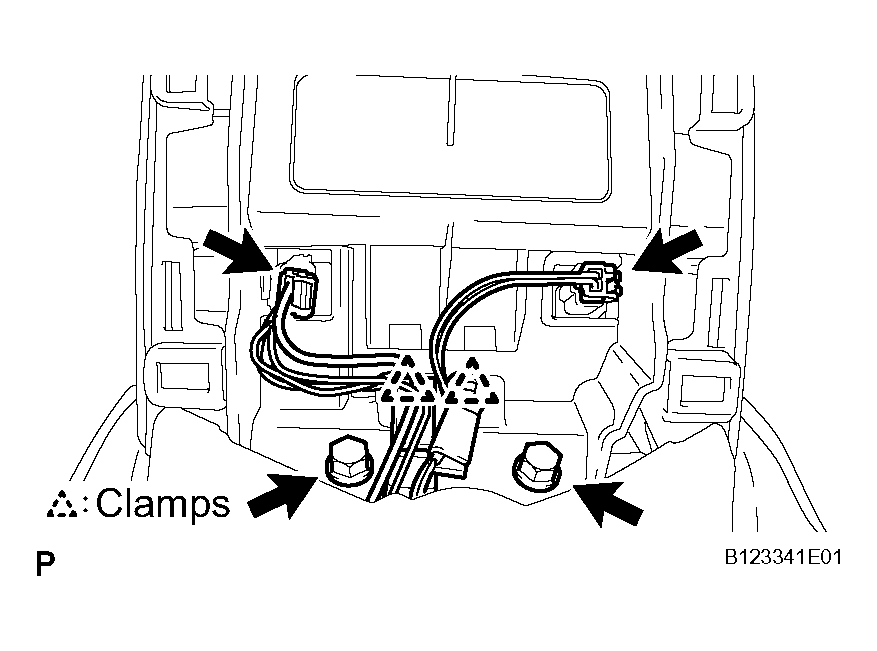

- REMOVE CONSOLE BOX
- Remove the 2 bolts < C >.
- Disconnect the 2 connectors.
- Disengage the 2 clamps.

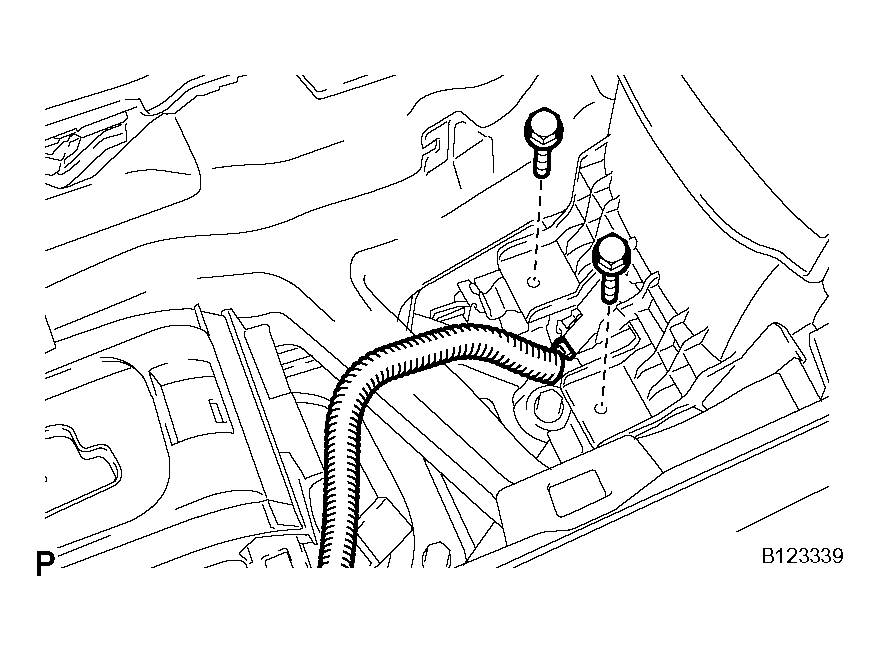

- Remove the 2 bolts < C >.
- Disconnect the connector.
- Remove the 2 bolts < C >.
- Disengage the 2 claws and 2 clips, and then remove the console box.

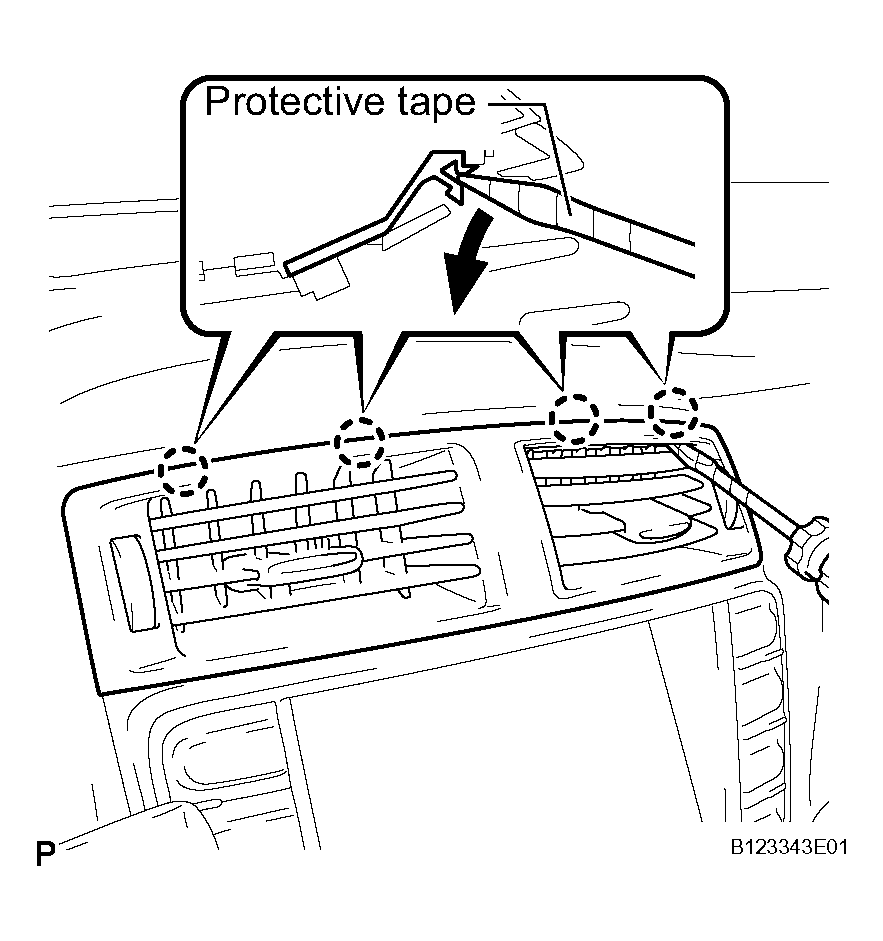

- REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
- Using a screwdriver, disengage the 4 claws.
HINT:
Tape the screwdriver tip before use.

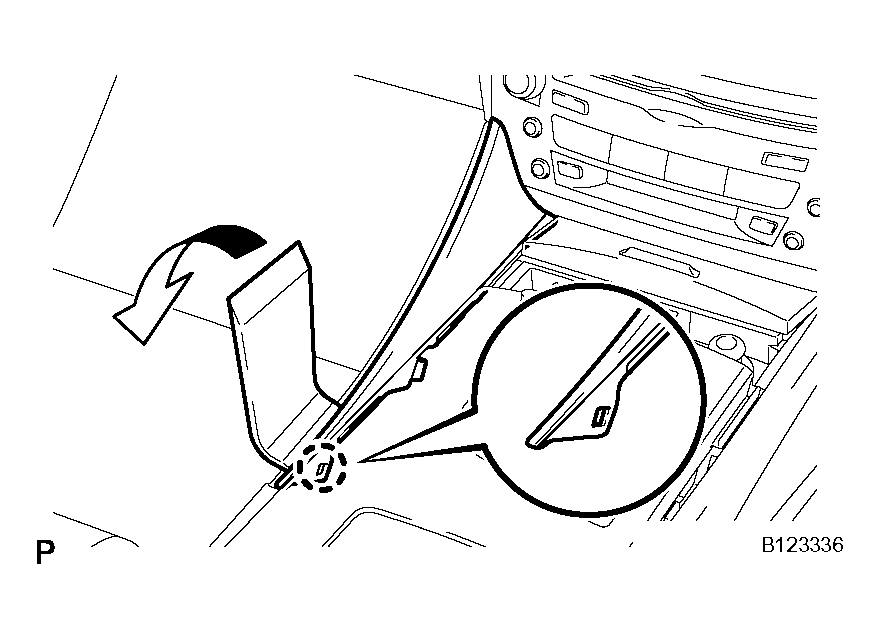

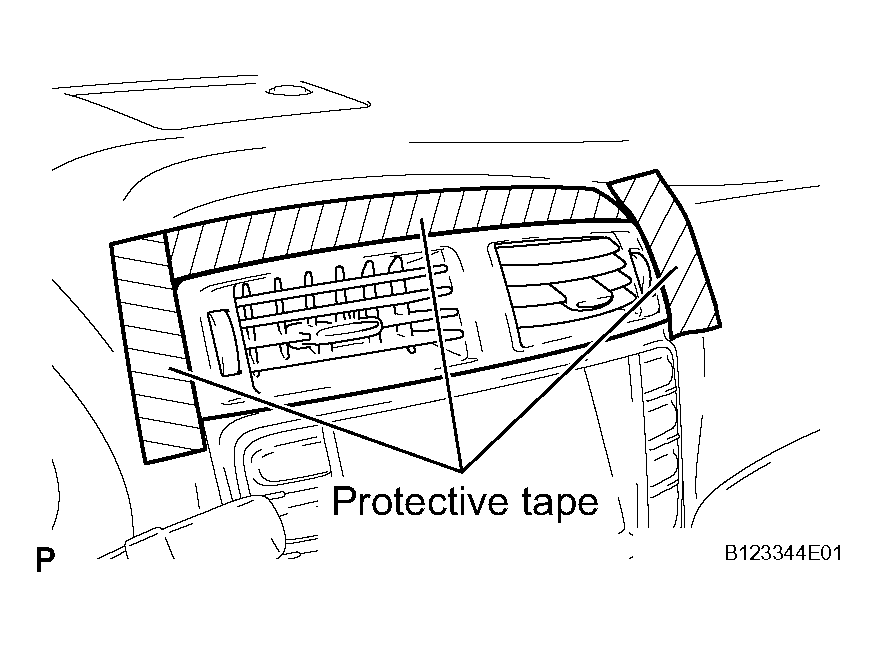

- Apply protective tape to the areas shown.

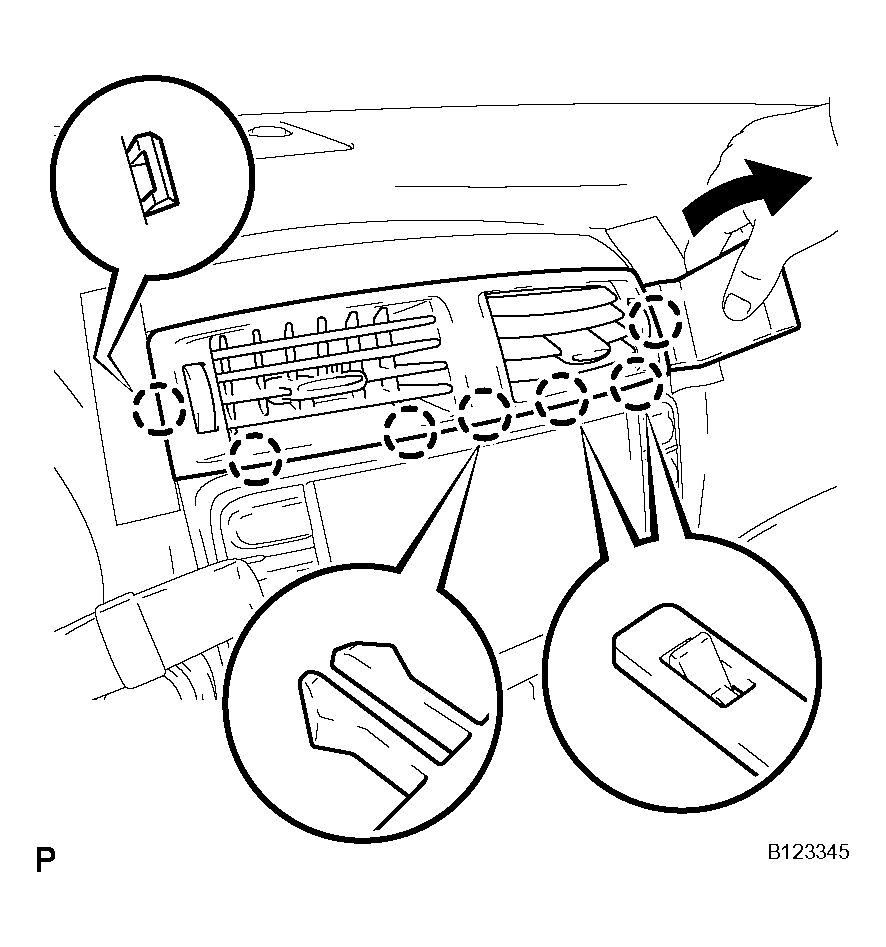

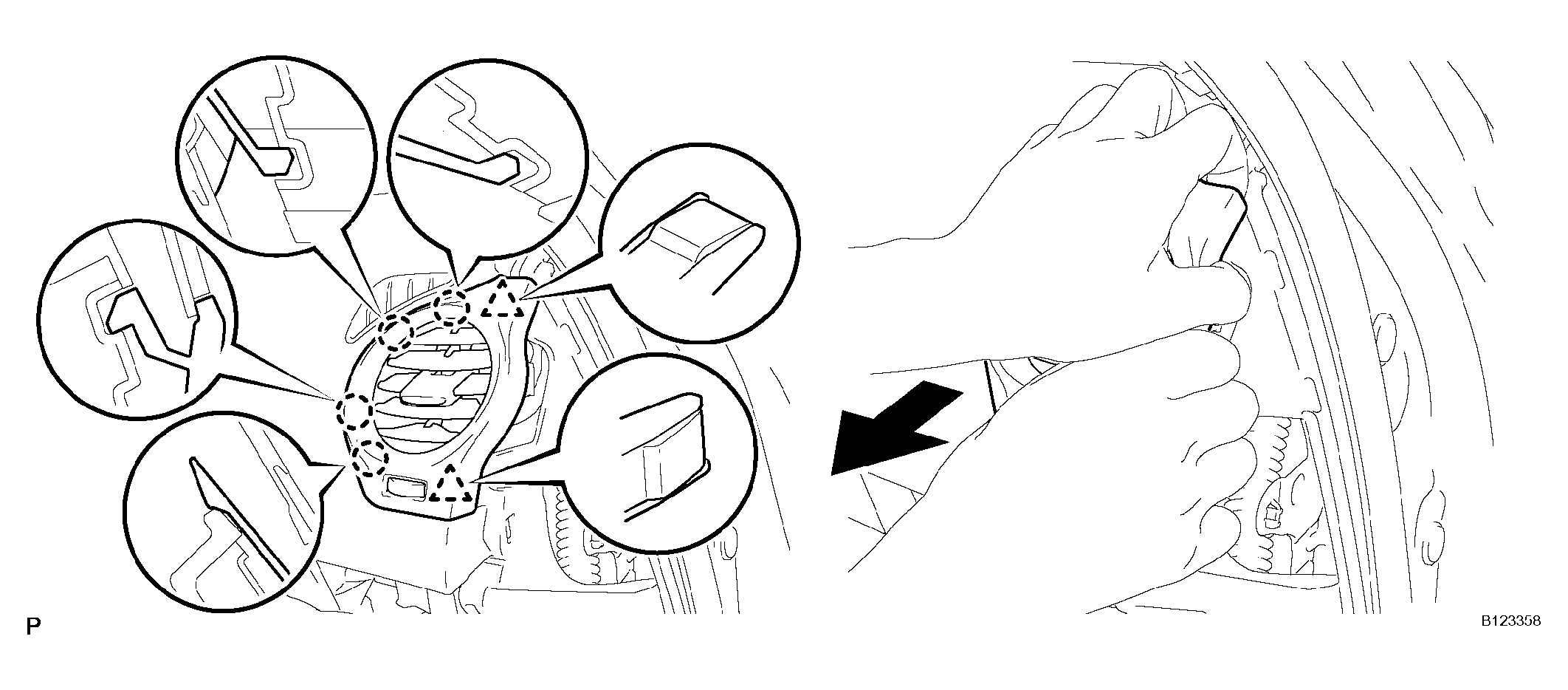

- Using a molding remover, disengage the 4 claws starting from the right of the No. 3 instrument panel register assembly. Disengage the remaining 3 claws by pulling the No. 3 instrument panel register assembly by hand.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Do not pry the lower part of the No. 3 instrument panel register assembly. Doing so may damage the assembly. - Disconnect the connectors.
- Using a screwdriver, disengage the 4 claws.

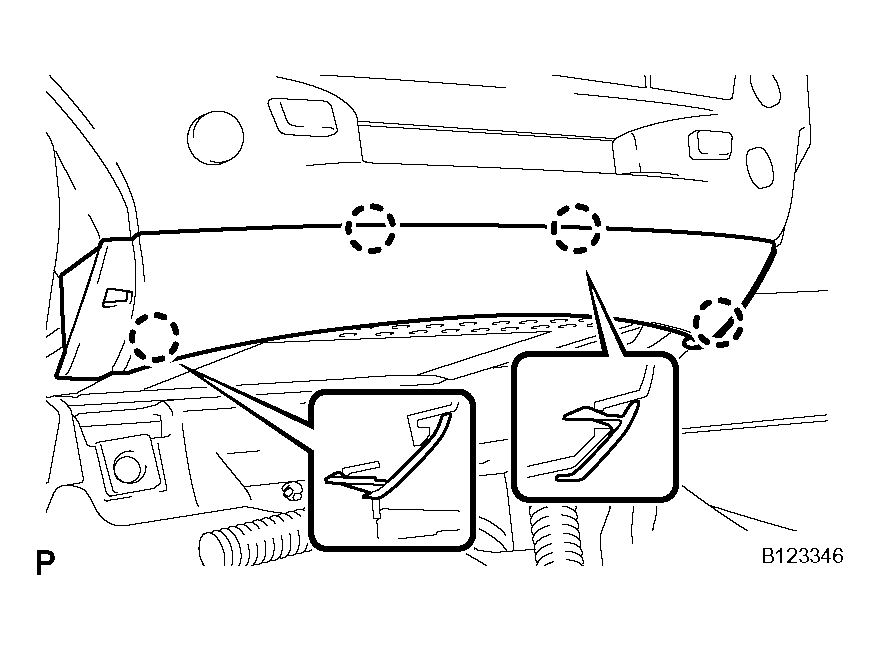

- REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL

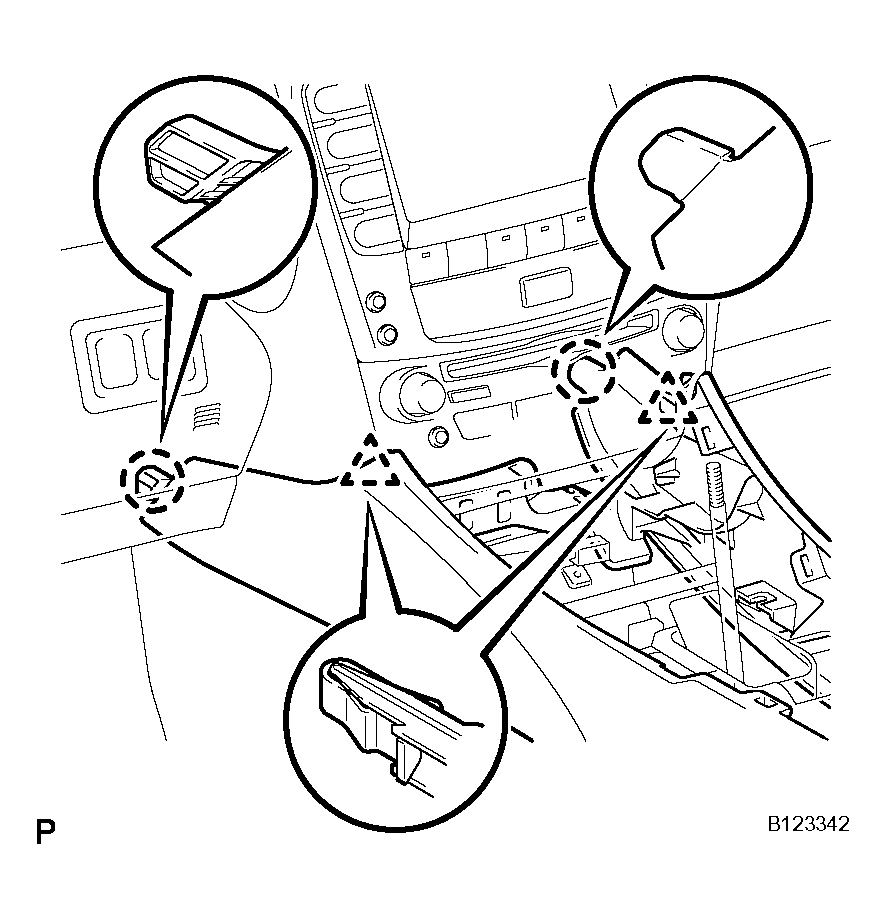

- Disengage the 4 claws and remove the center lower instrument cluster finish panel.
- REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See Step 17 in REMOVAL )
- REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See Step 13 in REMOVAL )
- REMOVE LOWER NO. 2 STEERING WHEEL COVER (See Step 4 in REMOVAL )
- REMOVE LOWER NO. 3 STEERING WHEEL COVER (See Step 3 in REMOVAL )
- REMOVE STEERING PAD (See Step 5 in REMOVAL )
- REMOVE STEERING WHEEL ASSEMBLY (See Step 11 in REMOVAL )
- REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See Step 12 in REMOVAL )
- REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic) (See Step 12 in REMOVAL )
- REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (See Step 13 in REMOVAL )
- REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) (See Step 50 in REMOVAL )
- REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) (See Step 52 in REMOVAL )

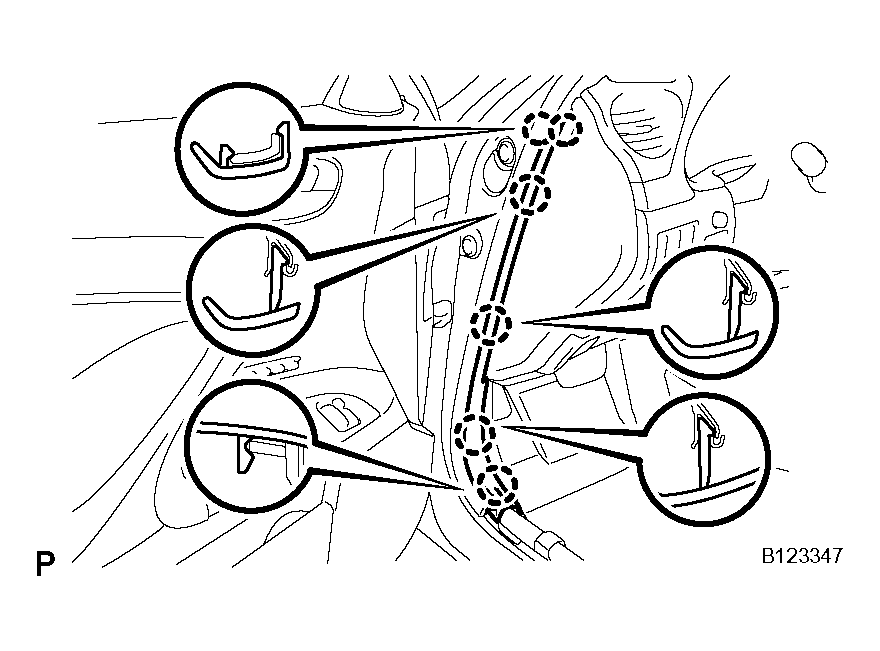

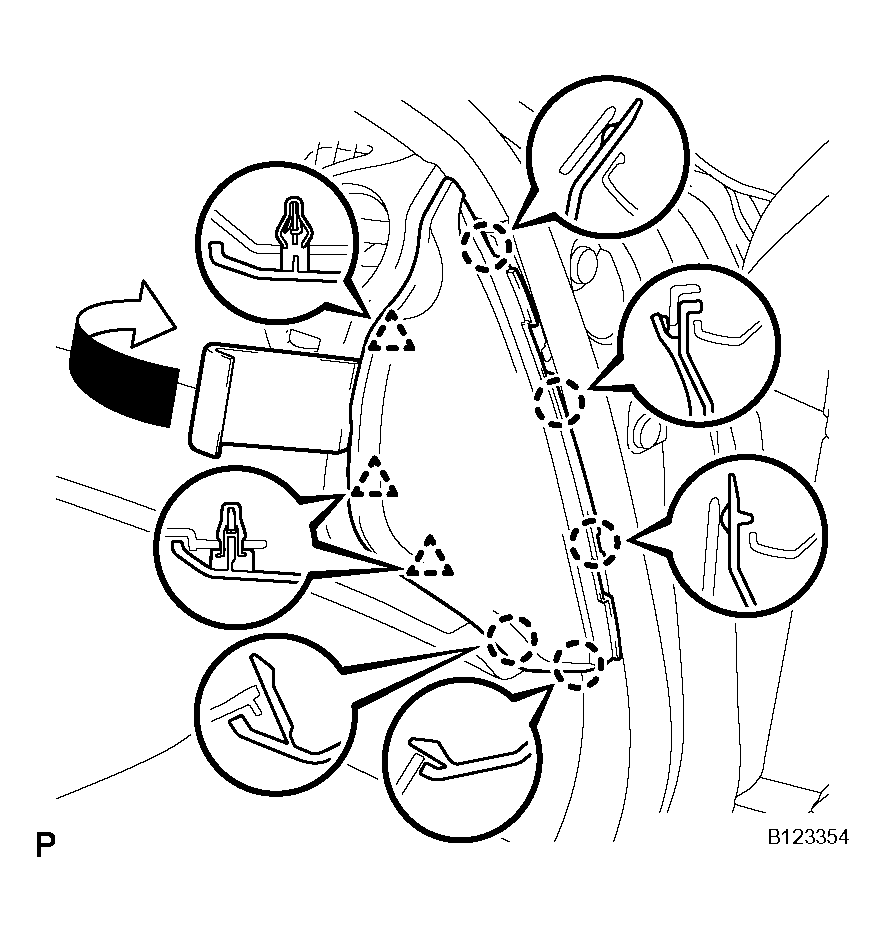

- REMOVE FRONT DOOR OPENING TRIM COVER LH
- Disengage the 6 claws and remove the front door opening trim cover LH.

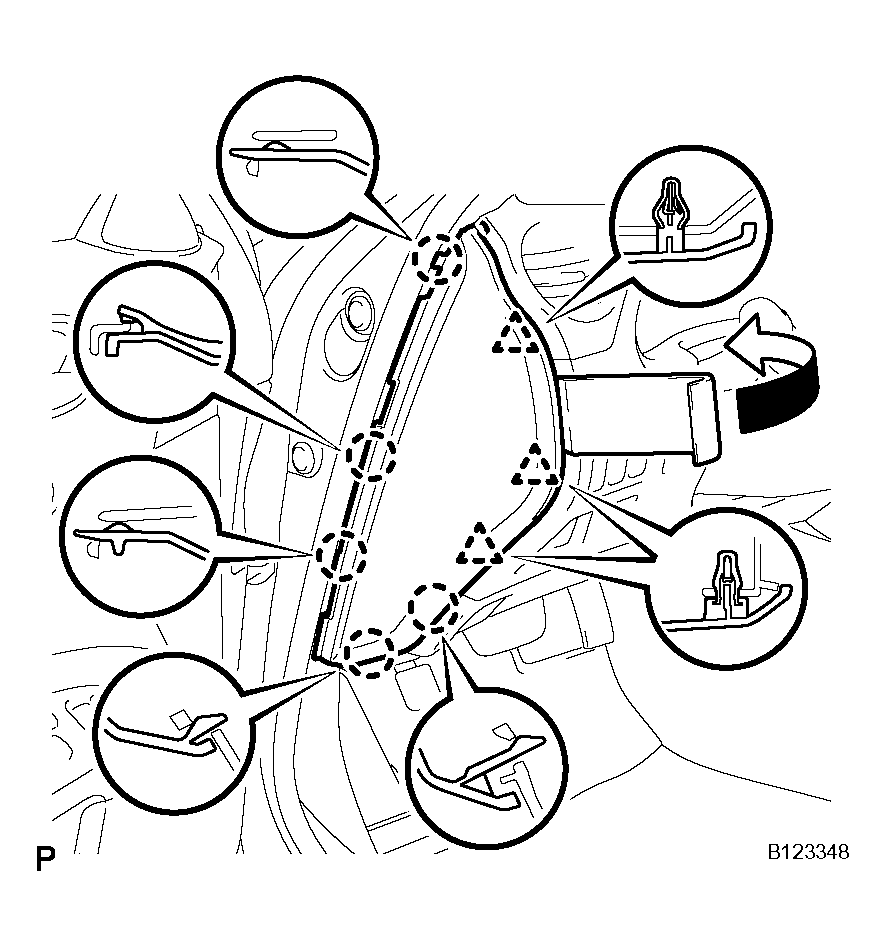

- REMOVE SIDE INSTRUMENT PANEL LH
- Using a molding remover, disengage the 5 claws and 3 clips, and then remove the side instrument panel LH.

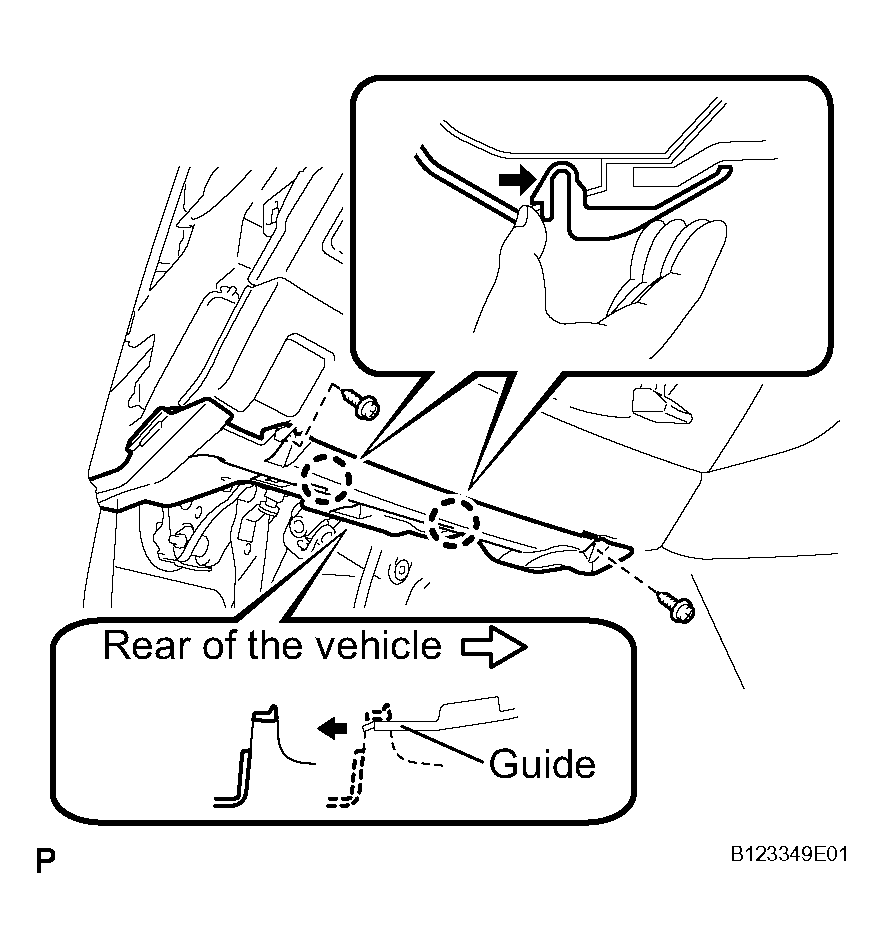

- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- Remove the 2 screws < E >.
- Push the 2 claws in the direction indicated by the arrow to disengage them.
- Remove the No. 1 instrument panel under cover sub-assembly from the guide as shown in Fig 25 and pull the cover toward the rear of the vehicle.
- Disconnect the connectors and remove the No. 1 instrument panel under cover sub-assembly.

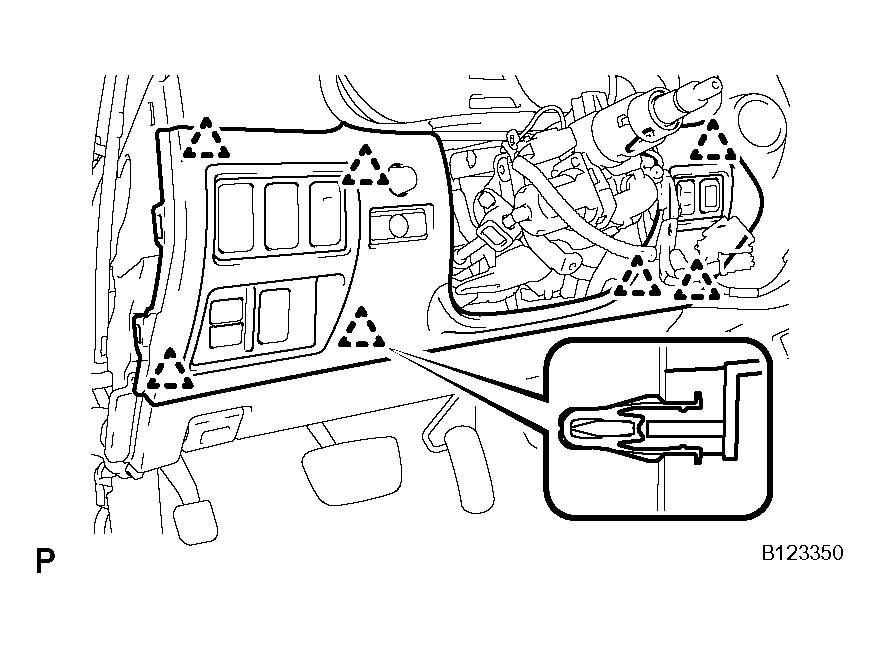

- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
- Disengage the 7 clips.
- Disconnect the connectors and remove the lower instrument panel finish panel sub-assembly.
- REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See Step 9 in REMOVAL )
- REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
- Remove the 2 screws < G > and 2 clips, and then remove the instrument cluster finish panel sub-assembly.

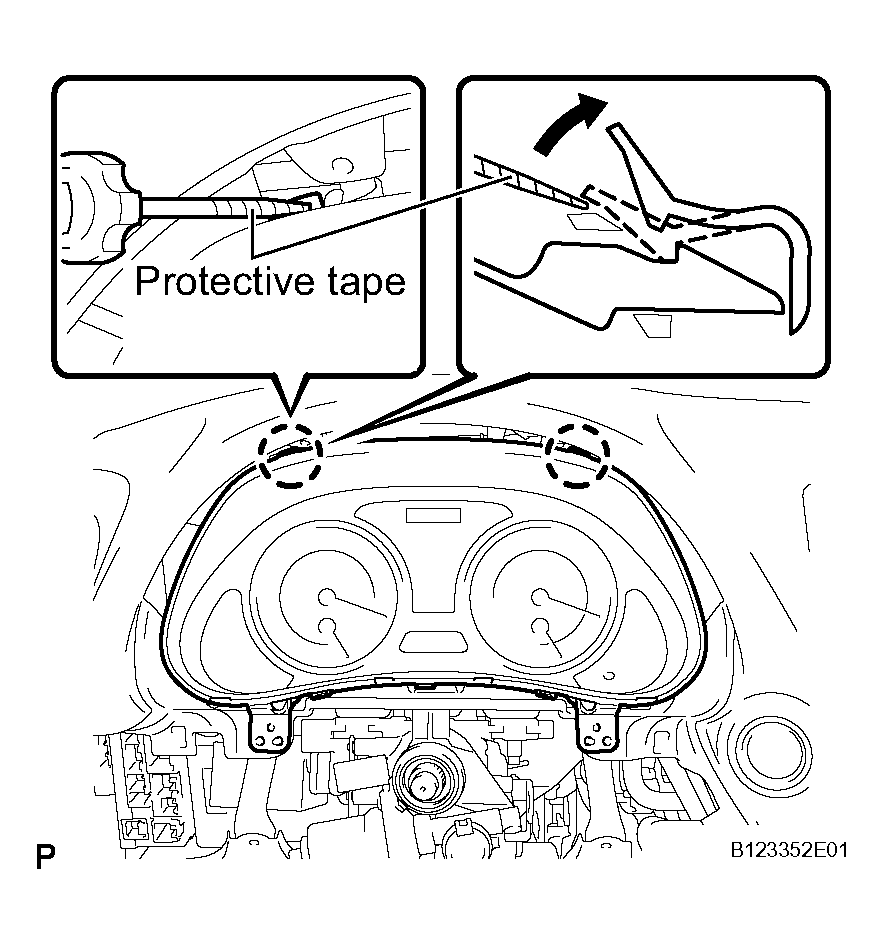

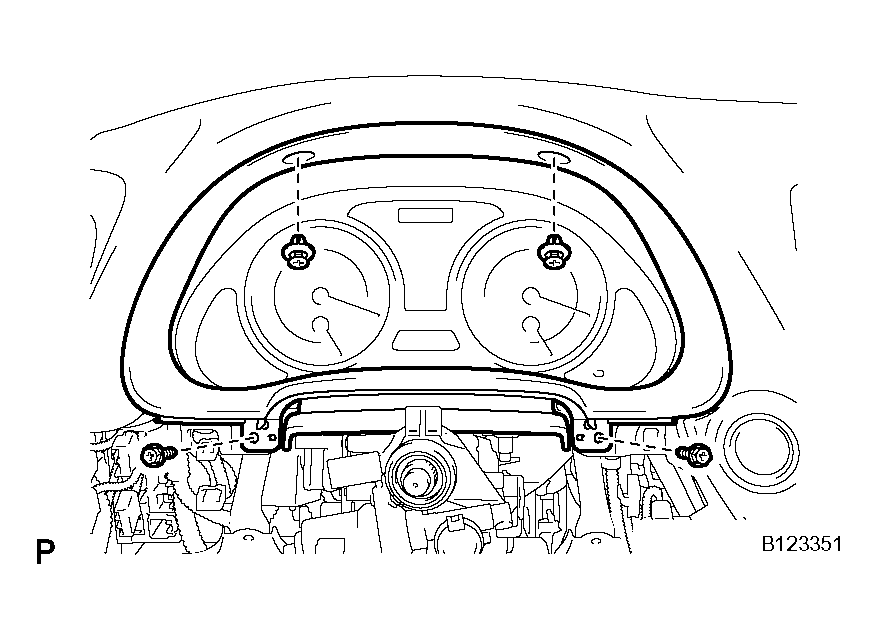

- REMOVE COMBINATION METER ASSEMBLY
- Using a screwdriver, disengage the 2 claws.
HINT:
Tape the screwdriver tip before use.
- Disconnect the connectors and remove the combination meter assembly.
- Using a screwdriver, disengage the 2 claws.
- REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
HINT:
Use the same procedures for the RH side and the LH side.
- REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
HINT:
Use the same procedures for the RH side and the LH side.

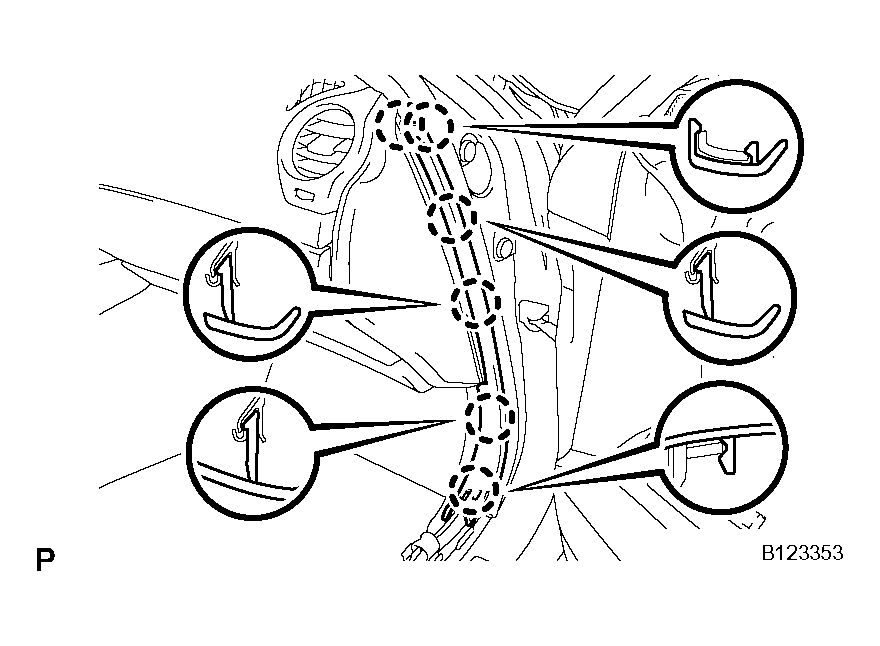

- REMOVE FRONT DOOR OPENING TRIM COVER RH
- Disengage the 6 claws and remove the front door opening trim cover RH.
- REMOVE SIDE INSTRUMENT PANEL RH
- Using a molding remover, disengage the 5 claws and 3 clips, and then remove the side instrument panel RH.
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

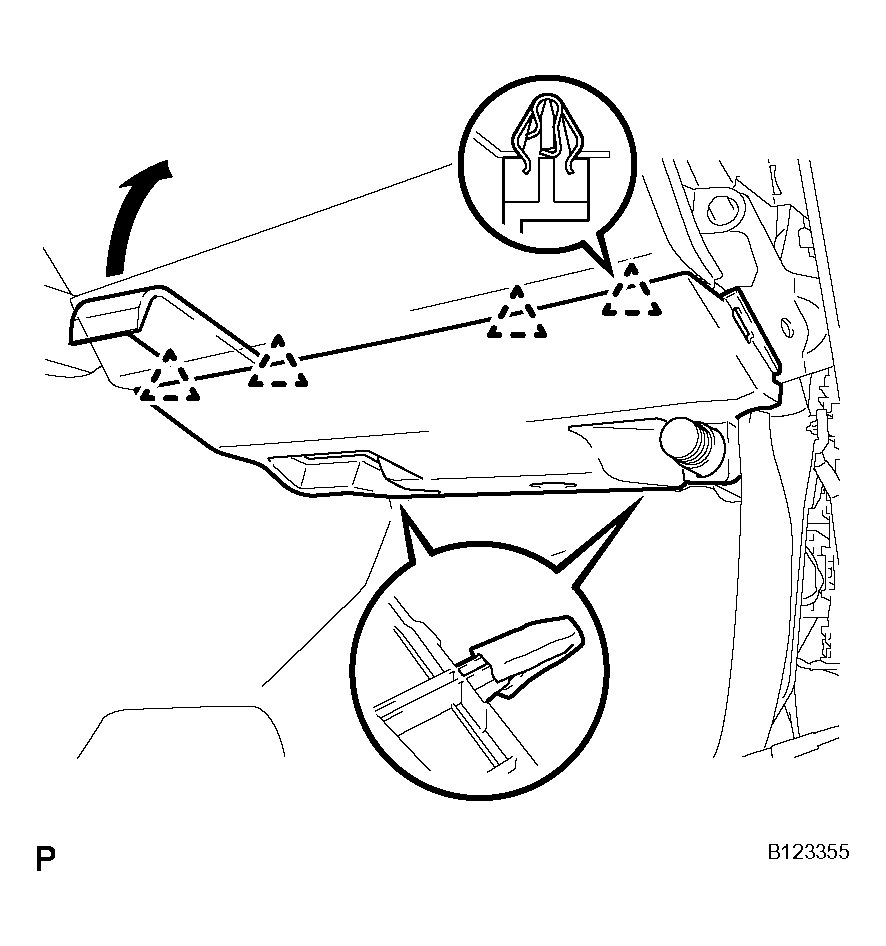

- Using a molding remover, disengage the 4 clips and remove the No. 2 instrument panel under cover sub-assembly.
- REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See Step 8 in REMOVAL )

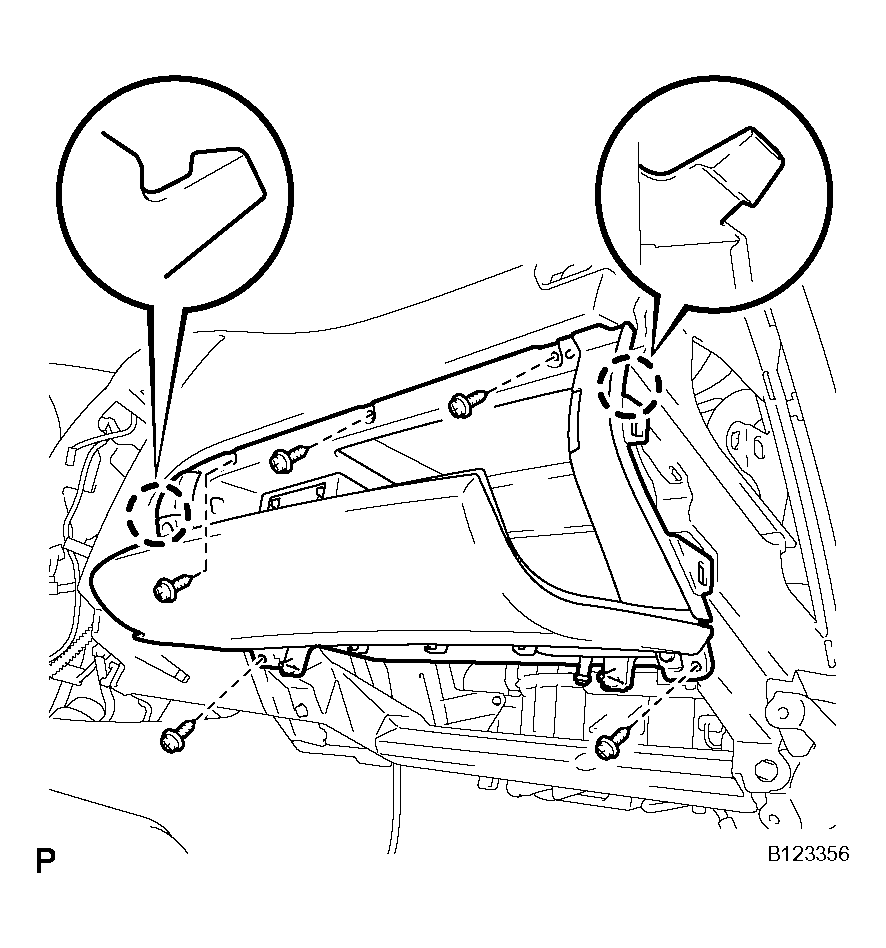

- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
- Remove the 5 screws < E >.
- Disengage the 2 claws.
- Disconnect the connectors and remove the glove compartment door assembly.
- REMOVE FRONT PILLAR GARNISH LH (See Step 56 in REMOVAL )
- REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedures for the RH side and the LH side.

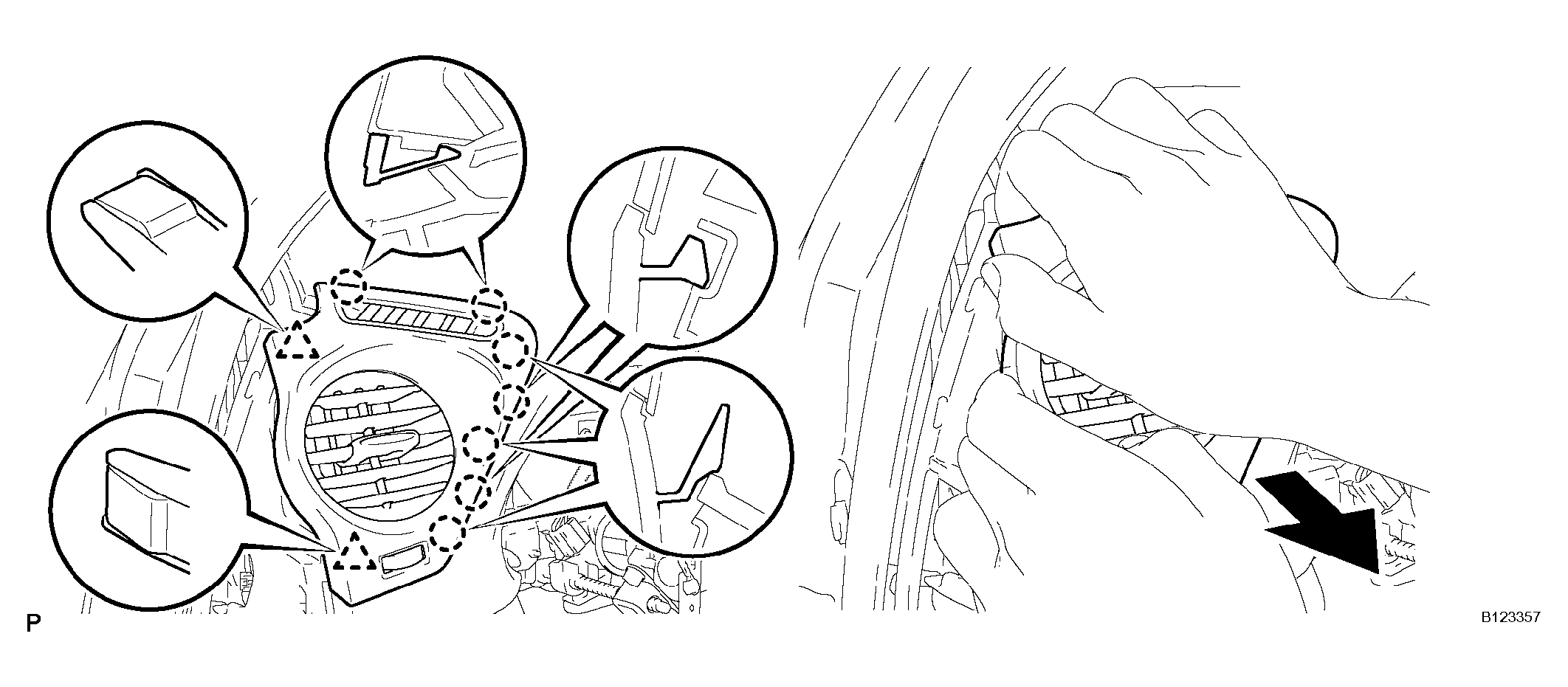

- REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
- Pull the No. 1 instrument panel register assembly in the direction indicated by the arrow to disengage the 7 claws and 2 clips, and then disconnect the connector and remove it.
- REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
- Pull the No. 2 instrument panel register assembly in the direction indicated by the arrow to disengage the 4 claws and 2 clips, and then disconnect the connector and remove it.

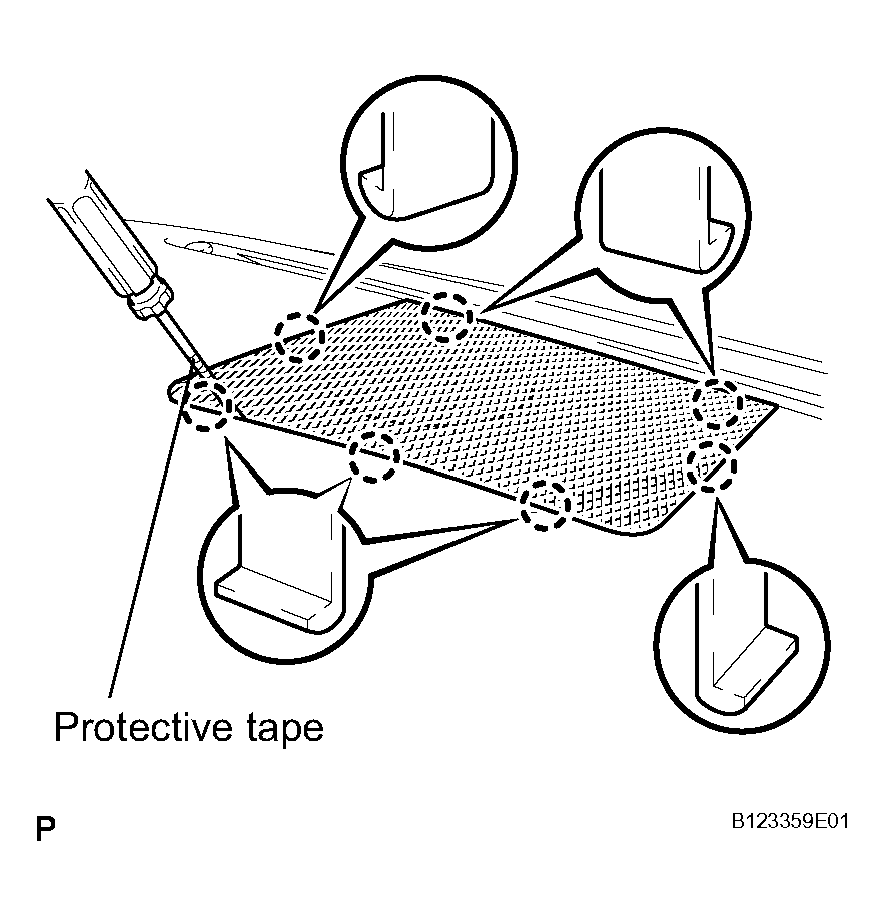

- REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
- Using a screwdriver, disengage the 7 claws and remove the No. 3 instrument panel speaker panel sub-assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, disengage the 7 claws and remove the No. 3 instrument panel speaker panel sub-assembly.
- REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker) (See Step 2 in REMOVAL )

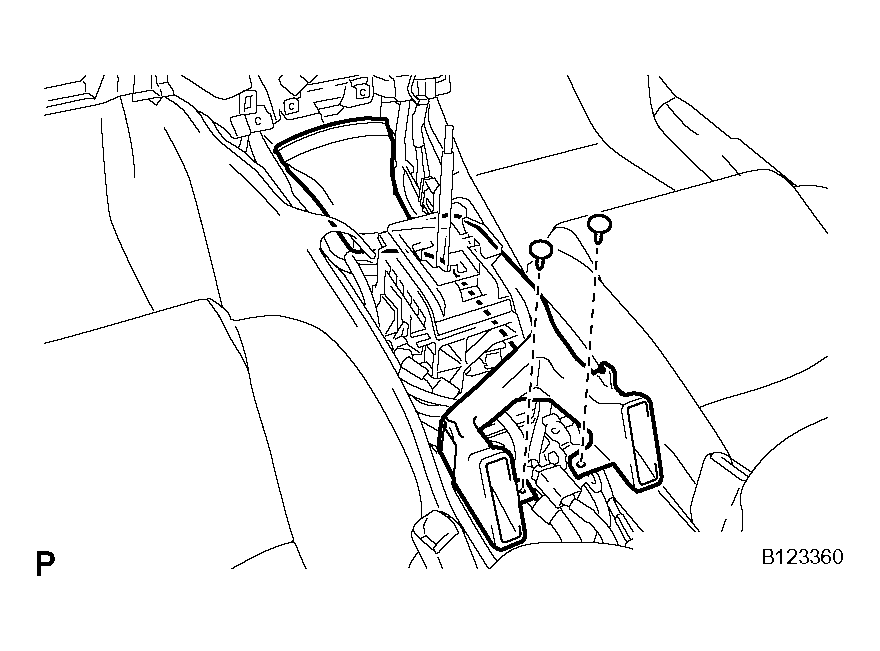

- REMOVE NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)

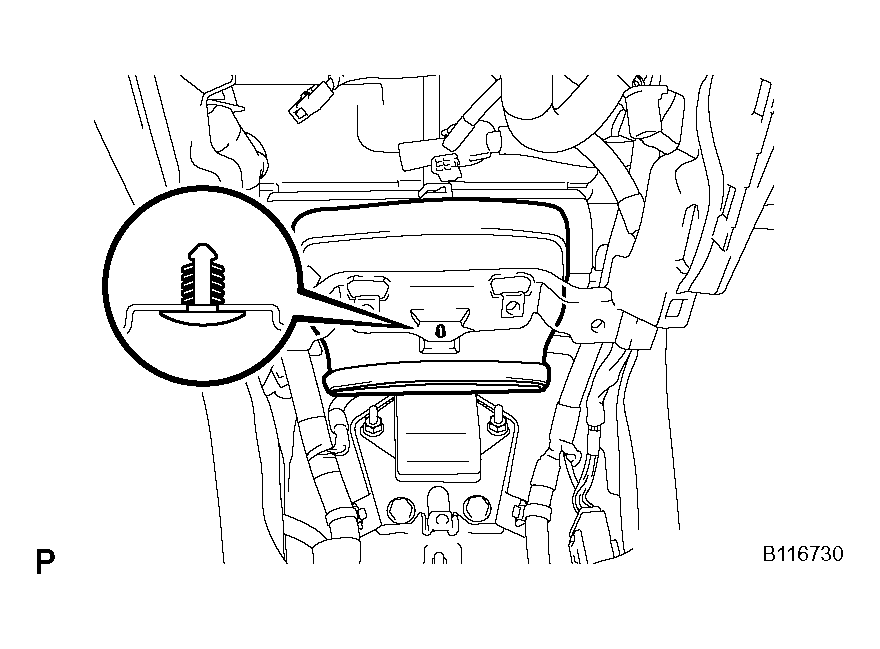

- Remove the 2 clips and No. 2 console box duct.
- REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)
- Remove the clip and No. 1 console box duct.

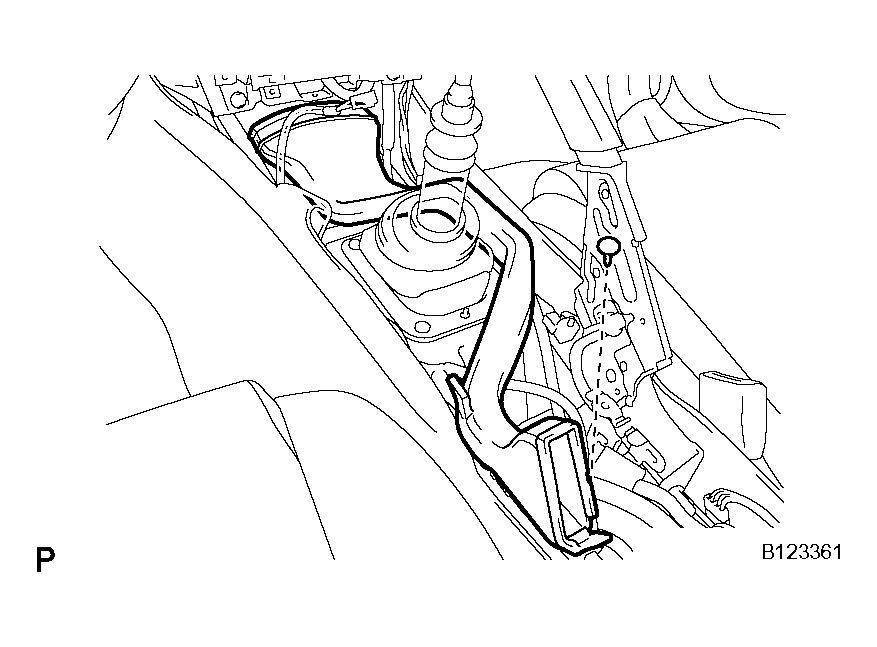

- REMOVE NO. 2 CONSOLE BOX DUCT (for Manual Transmission)
- Remove the clip and No. 2 console box duct.
- DISCONNECT PASSENGER AIRBAG CONNECTOR (See REMOVAL )

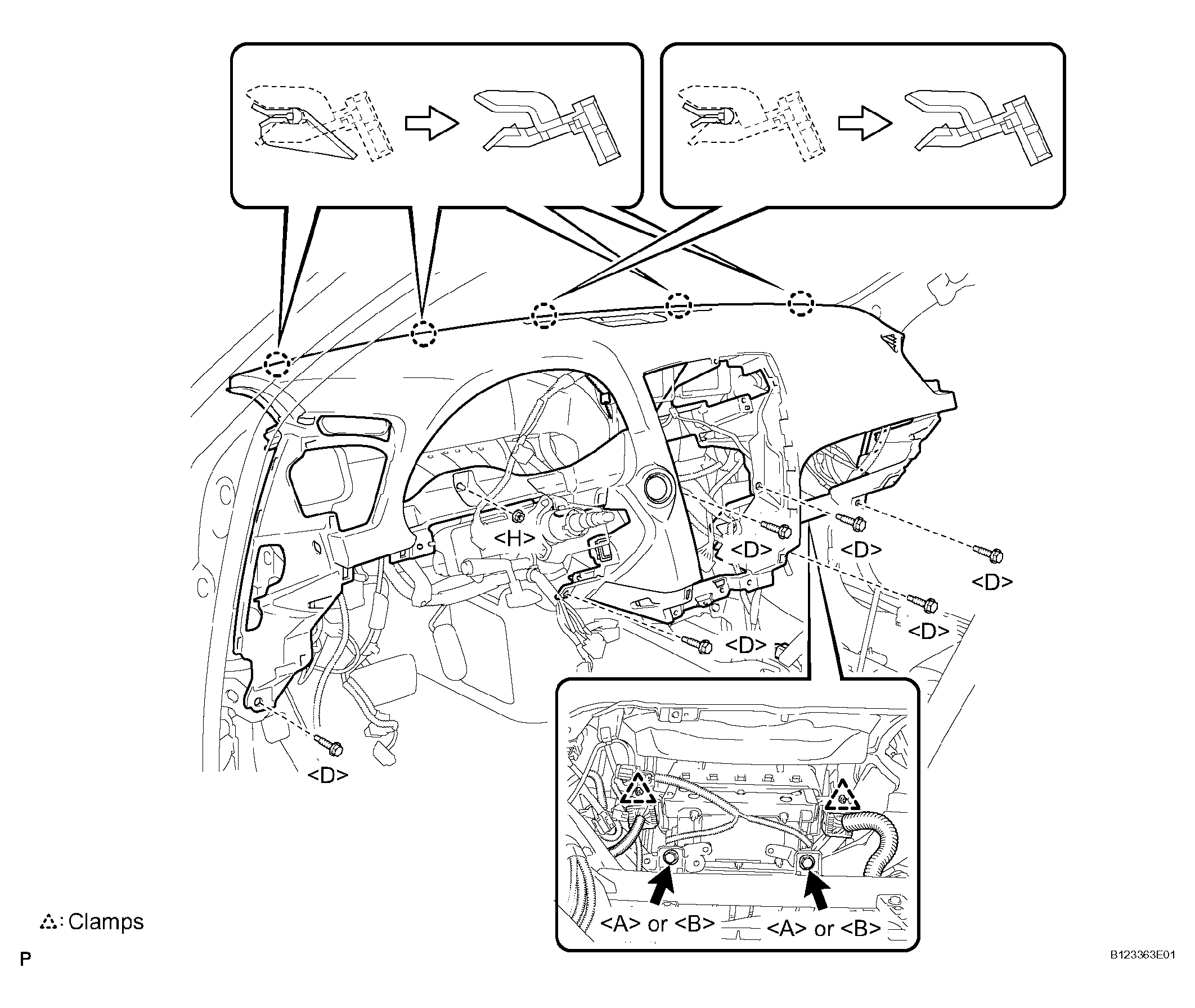

- REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

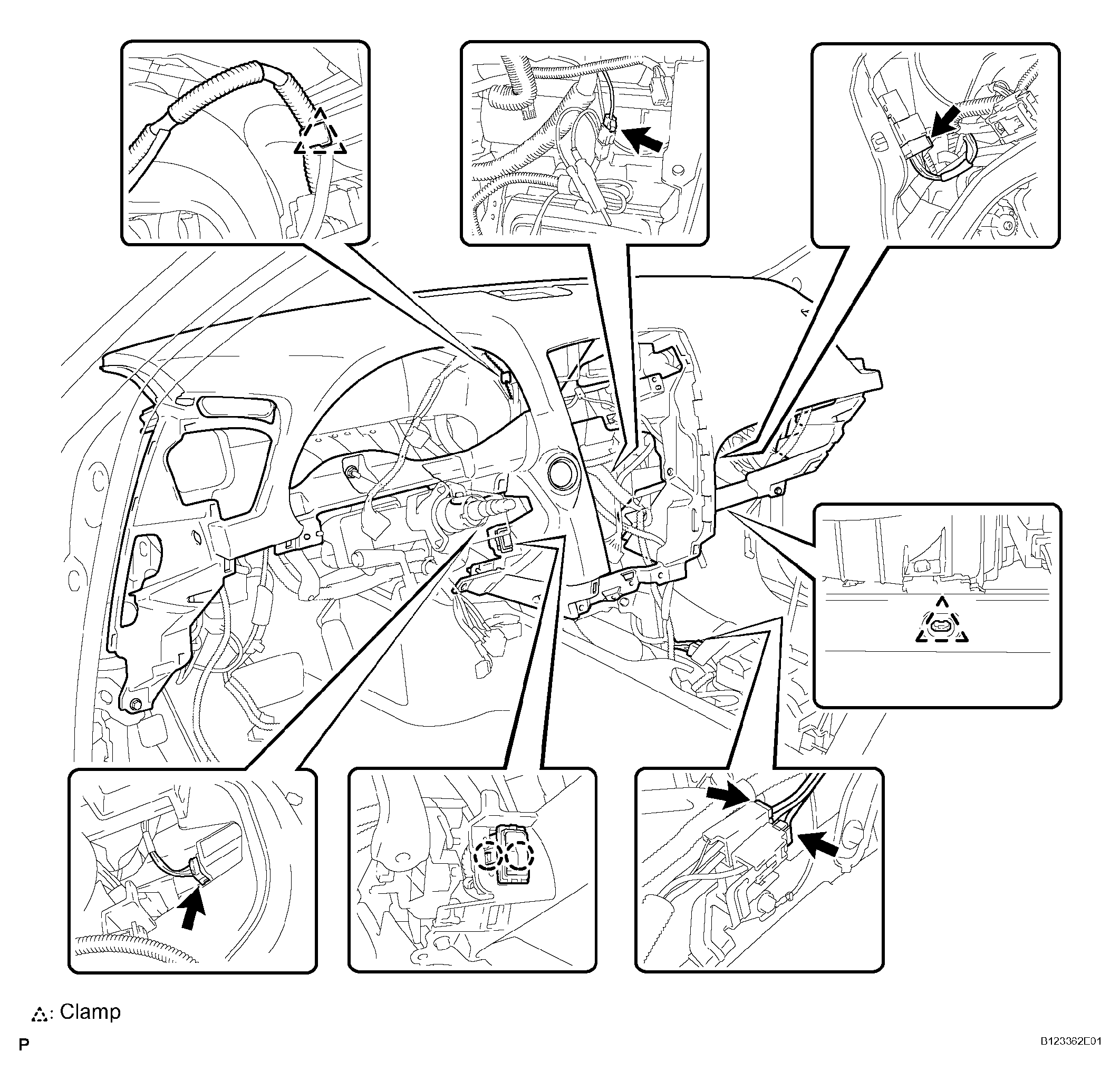

- Disengage the clamps.
- Disconnect the connectors.
- Disengage the 2 claws and separate the cooler thermistor.
- Remove the 6 bolts < D > and nut < H >.

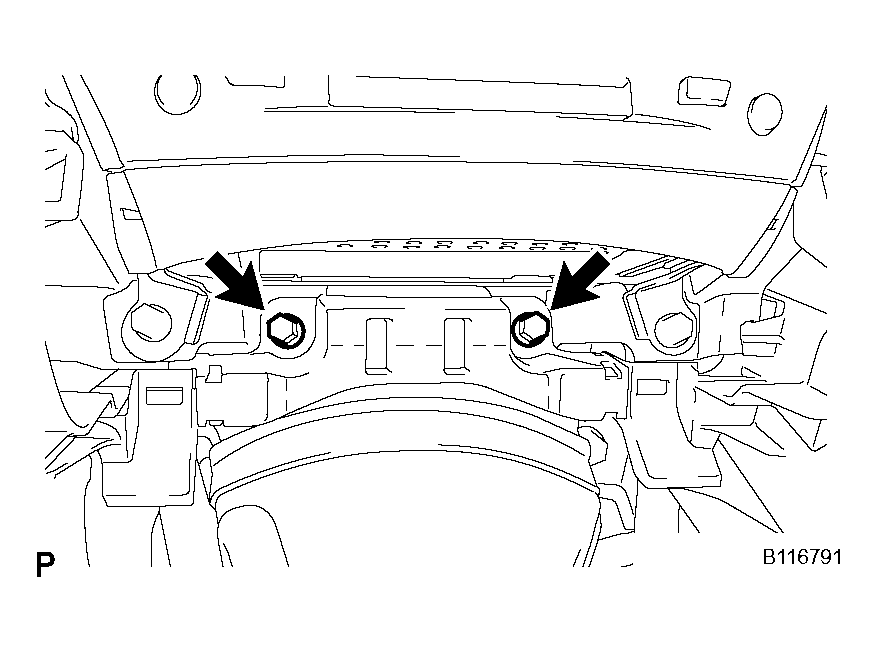

- Remove the 2 passenger airbag bolts < A >.
- Disengage the 2 clamps.
- Disengage the 5 claws and remove the instrument panel safety pad assembly.

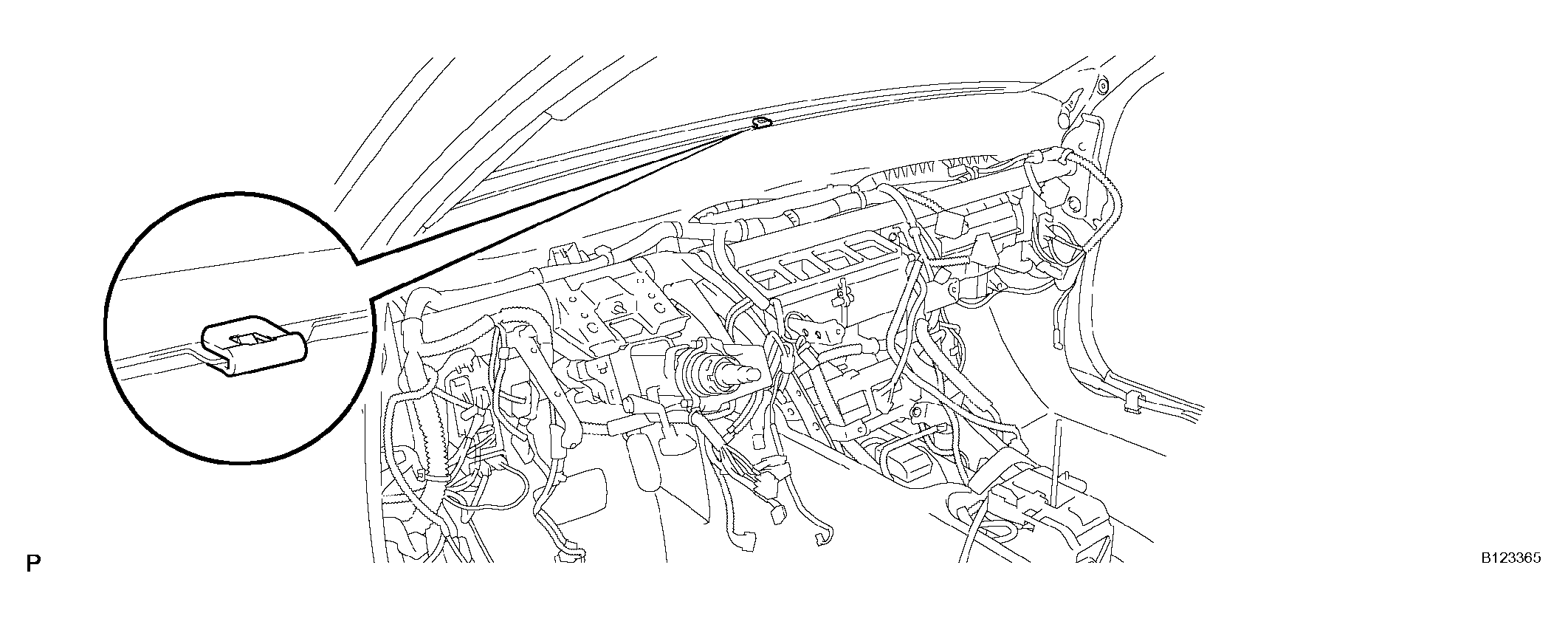

- REMOVE INSTRUMENT PANEL CLIP

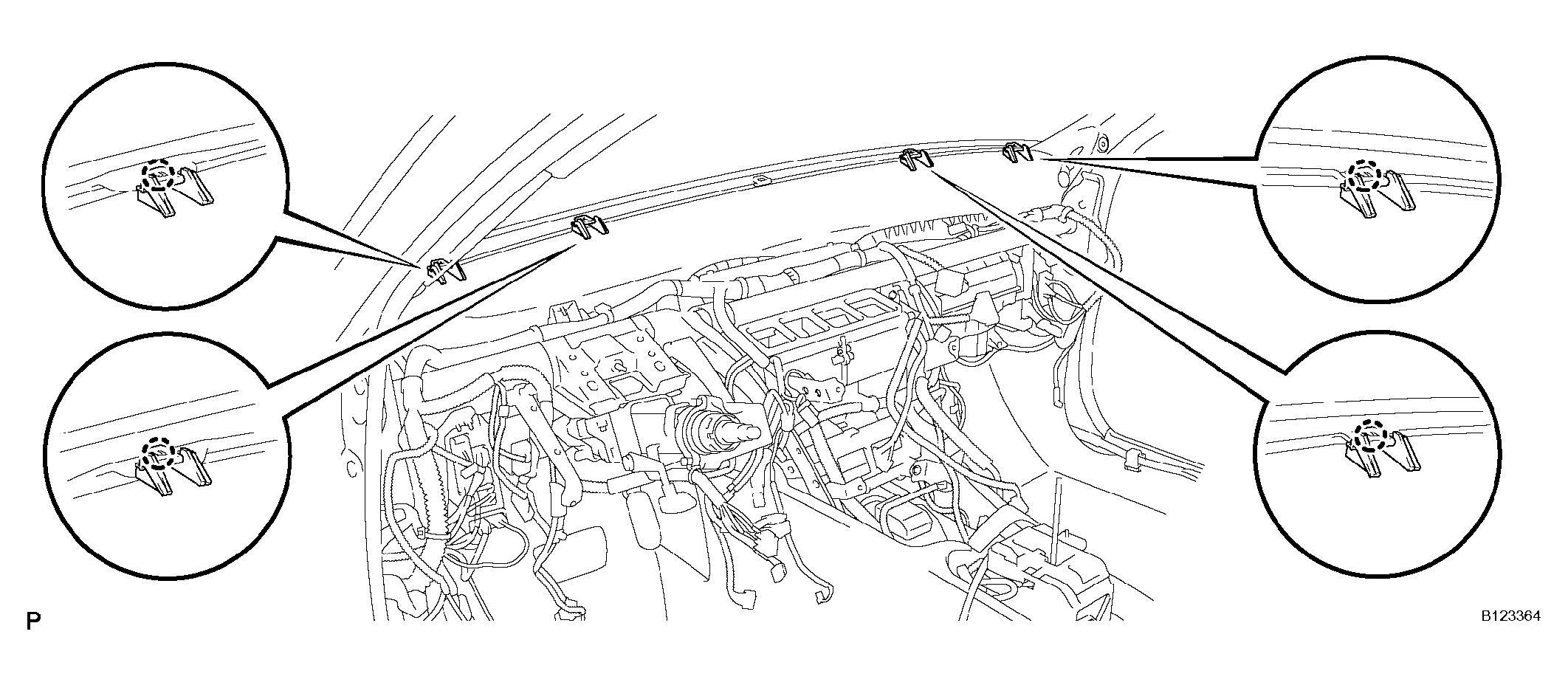

- Disengage the claw and remove the 4 instrument panel clips.
- REMOVE INSTRUMENT PANEL STAY
- Disengage the claw and remove the instrument panel stay.
