Shift Lever Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See step 4 in  REMOVAL  )
  2. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH (See step 6 in  REMOVAL  )
  3. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH (See step 7 in  REMOVAL  )
  4. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY (See step 11 in  REMOVAL  )
  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (See step 8 in  REMOVAL  )
  6. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See step 12 in  REMOVAL  )
  7. REMOVE CONSOLE BOX (See step 13 in  REMOVAL  )
  8. REMOVE NO. 2 CONSOLE BOX DUCT (See step 47 in  REMOVAL  )
  9. REMOVE NO. 1 REAR FLOOR PANEL BRACE (See  REMOVAL  )
  10. REMOVE FRONT CENTER FLOOR BRACE (See step 2 in  REMOVAL  )
  11. REMOVE OXYGEN SENSOR (See  REMOVAL  )
  12. REMOVE FRONT EXHAUST PIPE ASSEMBLY (See step 5 in  REMOVAL  )
  13. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR (See step 2 in  REMOVAL  )
  14. REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Remove the nut and separate the floor shift gear shifting rod sub-assembly.

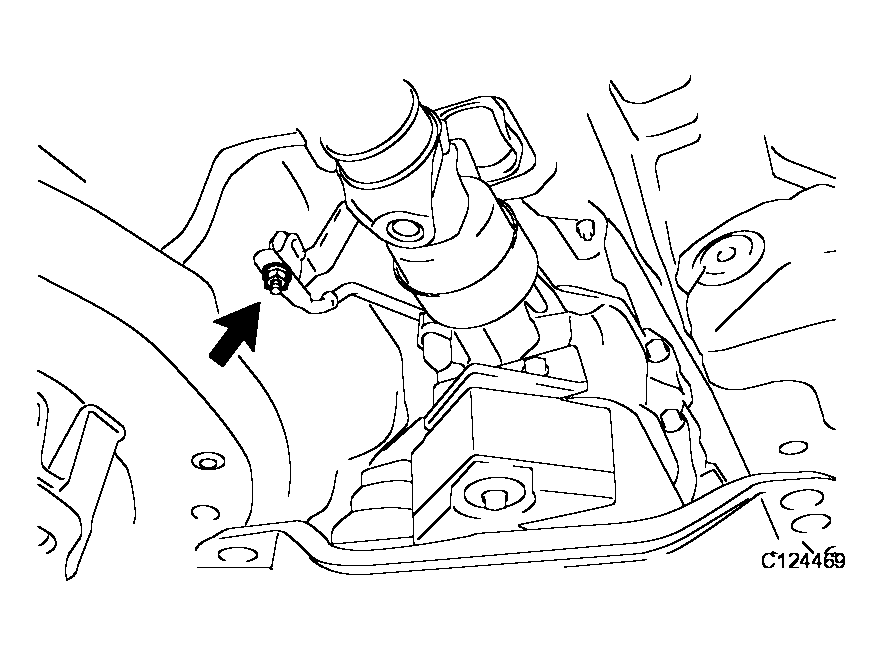

    Fig 1: Removing Nut & Separating Floor Shift Gear Shifting Rod Sub-Assembly
    G04045317Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  15. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
    1. Disconnect the 2 connectors.
    2. Remove the 4 bolts.
    3. Remove the floor shift assembly.

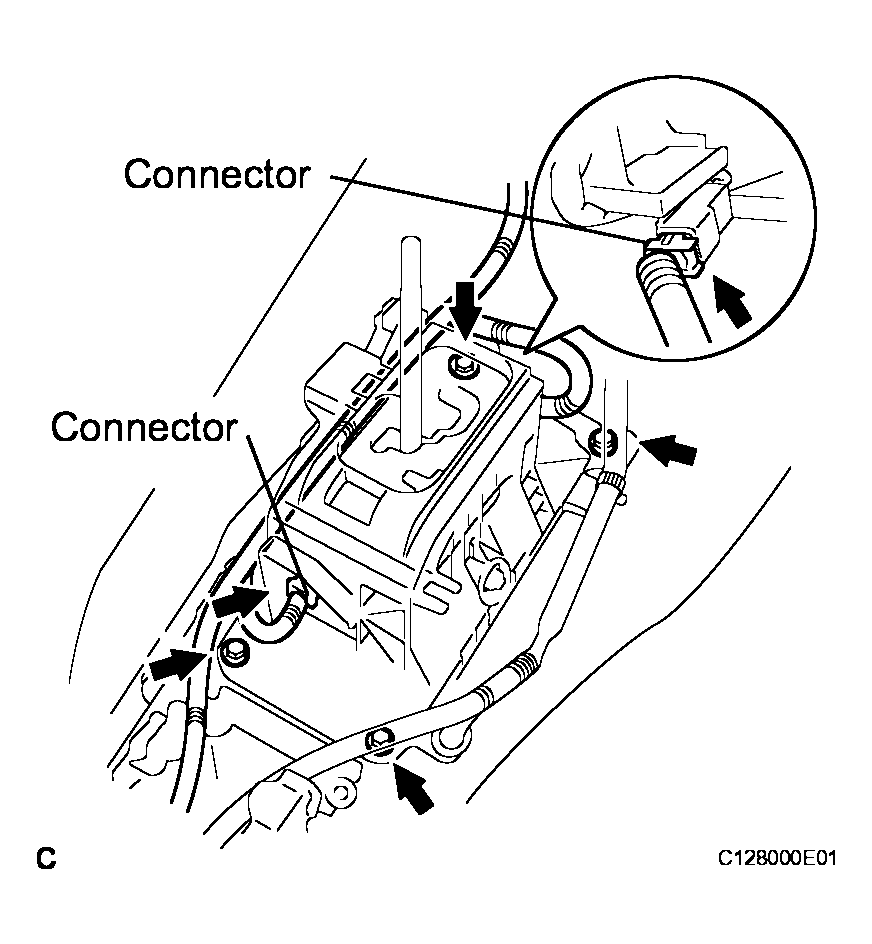

    Fig 2: Removing Transmission Floor Shift Assembly
    G04045318Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
