Installing the complete front axle with the engine and automatic transmission (rear wheel drive)

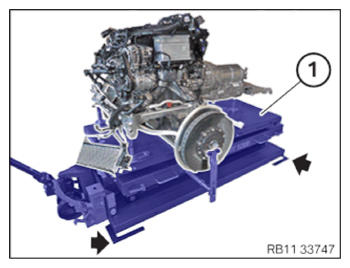

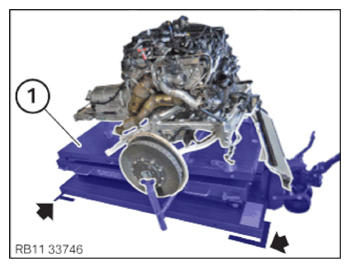

• Position the lifting table (1)  with the engine under the vehicle.

  The marks made during removal (arrows) on the workshop floor are used as positioning aid.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the lifting table (1)  with the engine under the vehicle.

  The marks made during removal (arrows) on the workshop floor are used as positioning aid.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CAUTION: Heavy component  .
  Heavy components can lead to injury or damage  .

  • Remove and install heavy components with the aid of another person/other persons.

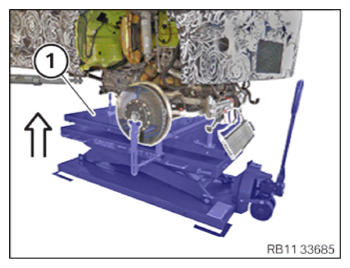

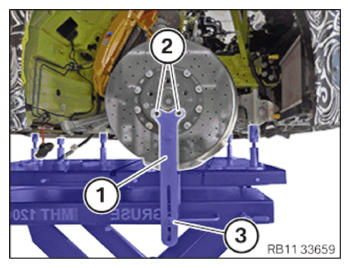

• Raise the lifting table (1)  in arrow direction  and pay attention to the free movement  of all components.

Courtesy of BMW OF NORTH AMERICA, INC.

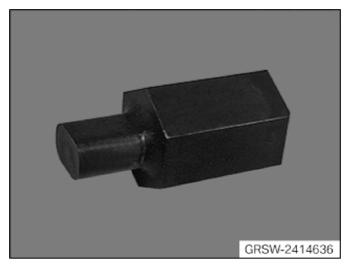

• Keep special tool 2 414 636  at hand.

Courtesy of BMW OF NORTH AMERICA, INC.

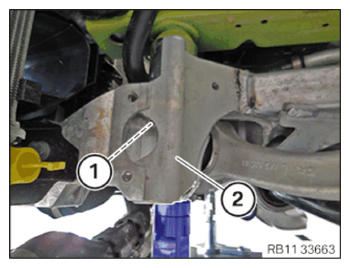

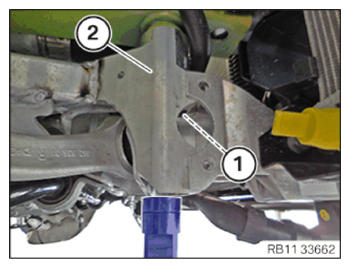

• Spread the swivel bearing (1)  in arrow direction with the special tool 2 414 636  .
• Feed in the swivel bearing (1)  at the spring strut (2)  and position it correctly.
• Remove the special tool 2 414 636  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Spread the swivel bearing (1) with the special tool 2 414 636 in arrow direction  .
• Feed in the swivel bearing (1)  at the spring strut (2)  and position it correctly.
• Remove the special tool 2 414 636  .

Courtesy of BMW OF NORTH AMERICA, INC.

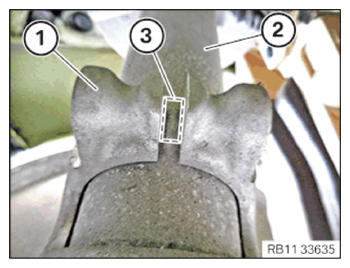

• Make sure that the installation position of the spring strut (1)  and the swivel bearing (2)  in the marked area (3) is correct  .

Courtesy of BMW OF NORTH AMERICA, INC.

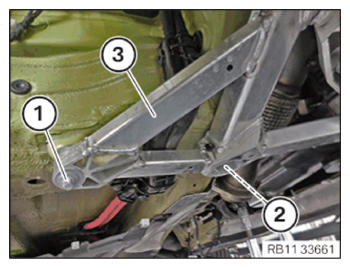

• Tighten the screw (1)  on the front subframe (3)  on the outer rear left  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe to outer body at the rear
  M10 Replace screws.	Tightening torque	56 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

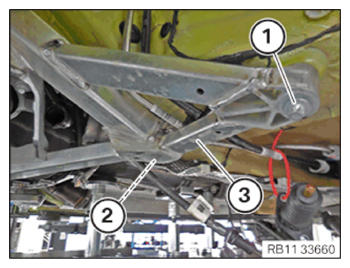

• Tighten the screw (2)  on the front subframe (3) on the inner rear left  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front axle carrier to body, rear
  M14 Replace screws.	Tightening torque	120 Nm

• Tighten the screw (1)  on the front subframe (3) on the outer right rear  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe to outer body at the rear
  M10 Replace screws.	Tightening torque	56 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (2)  on the front subframe (3) on the inner right rear  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front axle carrier to body, rear
  M14 Replace screws.	Tightening torque	120 Nm

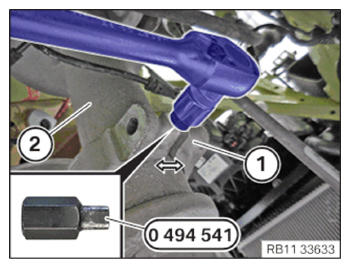

• Tighten the screw (1)  on the front subframe (2) on the right front  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe on front/center of body
  M12 Replace screws.	Tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

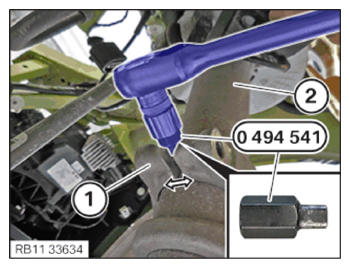

• Tighten the screw (1)  on the front subframe (2) on the left front side  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe on front/center of body
  M12 Replace screws.	Tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

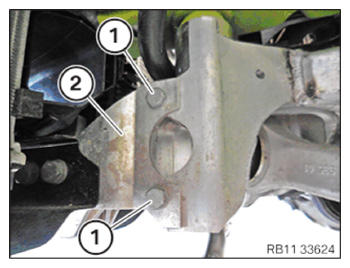

• Tighten the screws (1)  on the front subframe (2) at the left front  .
  TIGHTENING TORQUE SPECIFICATIONS



  Adapter, front axle support to front axle support
  M8x70	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

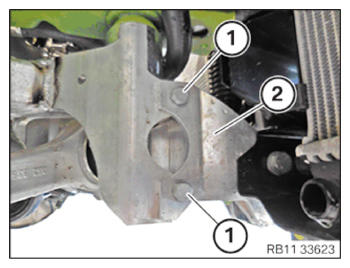

• Tighten the screws (1)  on the front subframe (2) at the right front  .
  TIGHTENING TORQUE SPECIFICATIONS



  Adapter, front axle support to front axle support
  M8x70	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

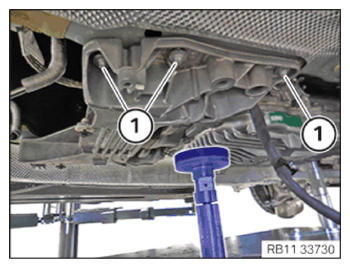

• Tighten the screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Transmission cross member to body
  M8	Tightening torque	19 Nm

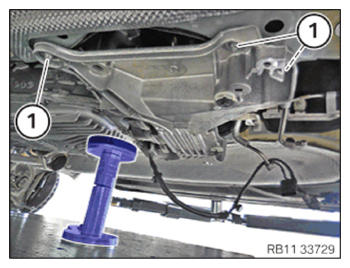

• Tighten the screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Transmission cross member to body
  M8	Tightening torque	19 Nm

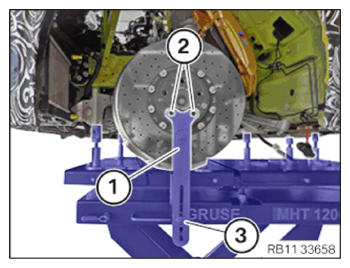

• Release the lug bolts (2) at the left front  .
• Release the adjustment screw (3)  and feed out the mount (1)  and set aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the lug bolts (2) at the right front  .
• Release the adjustment screw (3)  and feed out the mount (1)  and set aside.
• Slowly lower the lifting table and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.

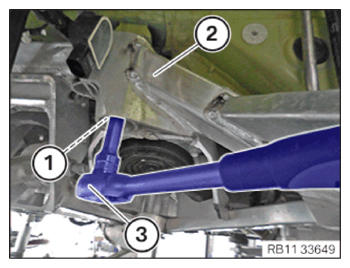

• Tighten the screw (1)  on the front subframe (2) at the left center  with a commercially available tool (3)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe on front/center of body
  M12 Replace screws.	Tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

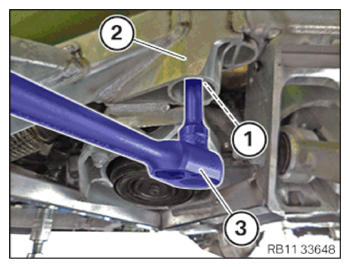

• Tighten the screw (1)  on the front subframe (2) at the right center  with a commercially available tool (3)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe on front/center of body
  M12 Replace screws.	Tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
