Installing the headlining (lowered)
NOTE:
RISK OF DAMAGE
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
- Guide the headlining past the parapet of the right C-/D-pillar by bending slightly and place it down slowly on the positioned head restraint.

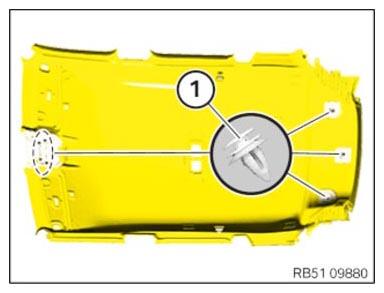

- Check clips (1)
on the headlining for damage and, if necessary, replace them.
- Insert the headlining (2) with the help of an auxiliary person onto the respective edge protection.

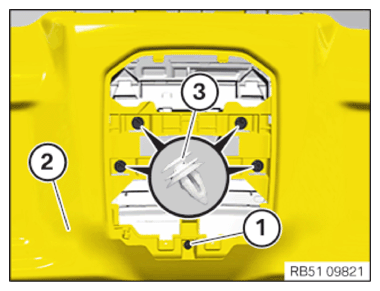

- Position and clip in headlining (2) on the clips (3) .
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Headlining on roof frame | ||
|---|---|---|
| Oval-head screw | Tightening torque | 1.2 Nm |

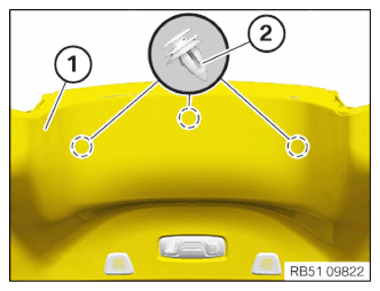

- Clip in headlining (1) on the clips (2) .
Follow-up work
- Refer to INSTALLING D-PILLAR TRIM PANEL .
- Refer to INSTALLING THE HINGE COVER .
- Refer to INSTALLING THE FRONT STORAGE SHELF .
- Refer to INSTALLING COAT HOOK .
- Refer to INSTALLING INTERIOR ROOF LIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
- Refer to INSTALLING THE LEFT AND RIGHT SEATBELT FINISHER STRIP .
- Refer to INSTALLING COVER OF THE LUGGAGE COMPARTMENT SIDE SHELF LEFT AND RIGHT .
- Refer to INSTALLING THE BACKREST SIDE SECTION WITH THE AIRBAG ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE TOP LEFT AND RIGHT OF THE B-PILLAR TRIM PANEL (PARTIALLY REMOVED) .
- Refer to INSTALLING THE COVER FOR THE INTERIOR MIRROR (PARTIALLY REMOVED) .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING FRONT VANITY MIRROR LIGHT .
- Refer to INSTALLING THE SUN VISORS WITH THE COUNTER SUPPORT ON THE LEFT AND RIGHT .
- Refer to INSTALLING A-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE A-PILLAR TRIM PANEL AT THE CENTER LEFT AND RIGHT .
- Refer to INSTALLING THE SIDE COVER ON THE DASHBOARD AT LEFT AND RIGHT .
