(Installing the sun visors with the counter support on the left and right)

Installing the sun visors with the counter support

• Check the guides (1) on the cover of the counter support for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip the counter support (3) into the headlining.
• Make sure the clamps (2) are engaged correctly.
• Clip in the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

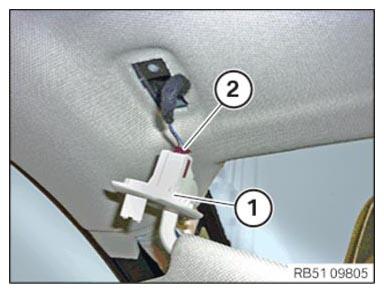

• Install the sun visors (1) and connect and lock the connector (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

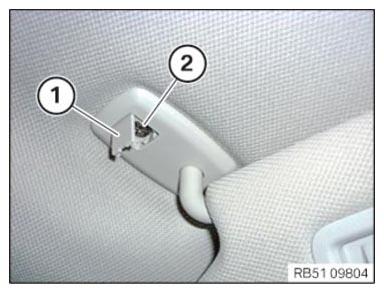

• Tighten down screw (2).
  (TIGHTENING TORQUES SPECIFICATIONS)



  Sun visor to body
  screw	Tightening torque	4 Nm

• Close cover (1).
• Hook the sun visors on the counter support.

Courtesy of BMW OF NORTH AMERICA, INC.
