(Installing the backrest side section with the airbag on the left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

NOTE: Perform the steps on the left and right side.

WARNING: Pyrotechnic components .
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

WARNING: Airbag unit .
Danger! Immobilization period-threatening injuries!

Before working on the airbag, disconnect the negative battery cable from the battery.
Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

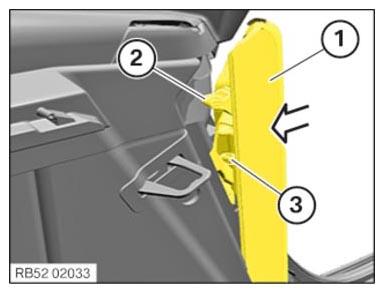

Feed the backrest side section (1) with the airbag correctly in arrow direction into the bottom retaining tabs (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the backrest side section (1) with the airbag as shown.
Connect connectors (3) and lock.
Carefully snap-in the detent (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.
Make sure that the retainer (1) of the backrest side section (2) is positioned correctly with the airbag.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the screw (1).
Parts: Screw

Tighten down screw (1).

(TIGHTENING TORQUES SPECIFICATIONS)

Backrest side section with airbag on body
Hexagon screw M6x16 Replace screw.	Tightening torque	11.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.
