(Install cover of the luggage compartment side shelf left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components  .
Scratches, surface damage  .

• Protect working area.
• Handle tools and components carefully.

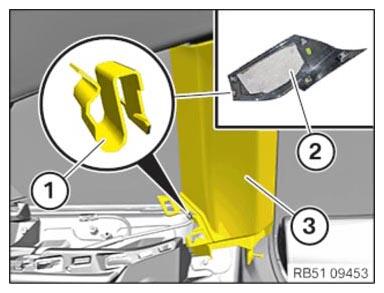

• Make sure that the clamp (1) must be remounted from the cover (2) on the C-pillar trim panel (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

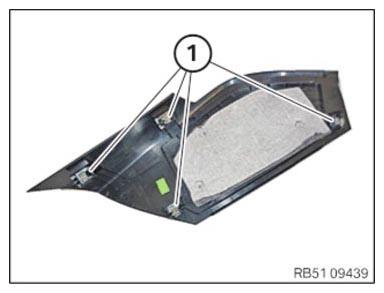

• Check clamp (1) for damage.
• Replace the damaged or missing clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

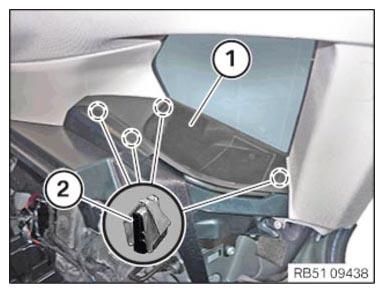

• Position cover (1) correctly and engage it into clamps (2) starting in the rear.

Courtesy of BMW OF NORTH AMERICA, INC.
