Installing D-pillar trim panel

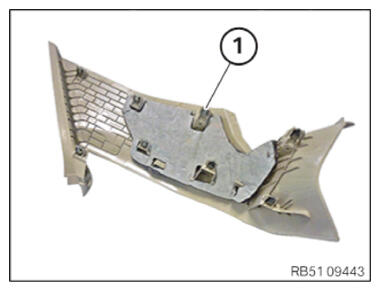

• Check clamps (1)  for damage; replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

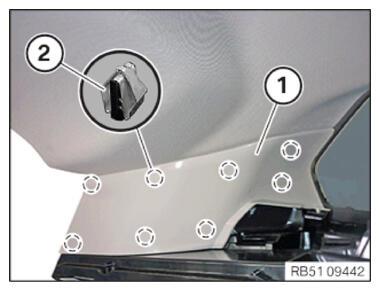

• Position the D-pillar trim panel (1)  correctly and clip it into the clamps (2)  .
• Ensure that the hinge cover fits correctly on the tailgate seal.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE HINGE COVER .
• Refer to INSTALLING THE COVER OF THE LUGGAGE COMPARTMENT .
• Refer to INSTALLING THE FRONT STORAGE SHELF .
