Install interior roof light

Check

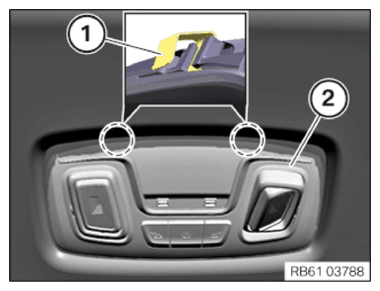

• Check clamp (1)  for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Clamps (1)  are damaged.

Measure

• Replace the interior roof light (2)  .

• Connect connectors and lock.

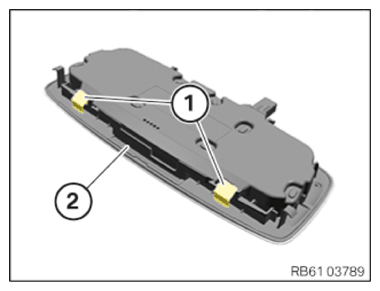

• Clip in the interior roof light (2)  with the clamps (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.
