(Installing the left and right C-pillar trim panel)
NOTE:
Description is for left component only. Procedure on the right side is identical.
WARNING:
Airbag unit
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before working on the airbag, disconnect the negative battery cable from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

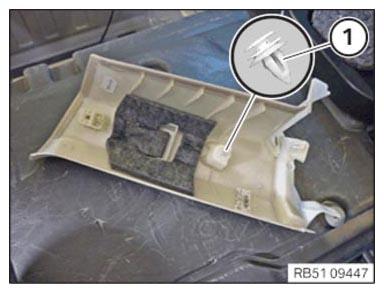

- Check clip (1) for damage and, if necessary, replace it.

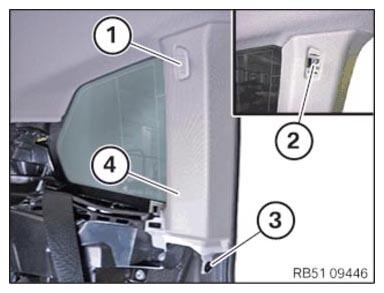

- Feed in and position the C-pillar trim panel (4) correctly.
- Install the expanding rivet (3).
- Tighten down screw (2).(TIGHTENING TORQUES SPECIFICATIONS)
A-pillar trim panel/C-pillar trim panel on body Oval-head screw. Tightening torque 2.6 Nm - Mount the cover (1).
