Installing Roof function center (FZD)

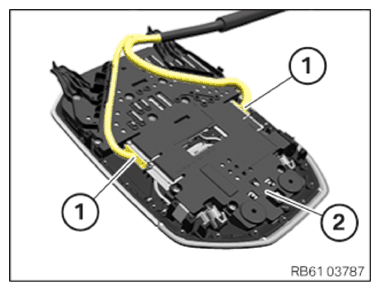

- Connect and lock all connectors (1)
with the roof function center (FZD) (2)
.
- Guide in the roof function center (FZD) (1) at a steep angle into the two guides (2) on the headlining (3) as pictured. Make sure that the headlining is not deformed.
- Clip in roof function center (FZD) (1)
at the top.
- Slide the special tool 2 298 505
in the arrow direction between the frame of the roof function center (FZD) and the headlining along the dashed line in order to adjust the headlining correctly.

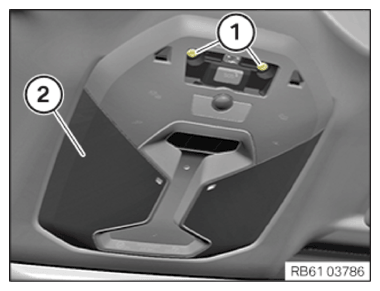

- Tighten screws (1) on the roof function center (FZD) (2) .
TIGHTENING TORQUES SPECIFICATIONS
| Roof function center (FZD) | |
|---|---|
| Tightening torque | 1.2 Nm |

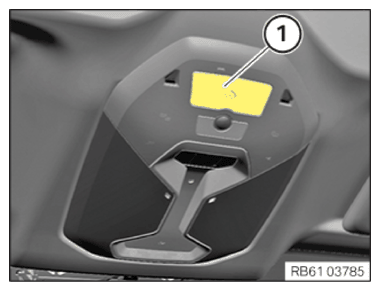

- Close cover (1) .
