(Installing the top left and right of the B-pillar trim panel (partially removed))

NOTE: Description is for left component only. Procedure on the right side is identical.

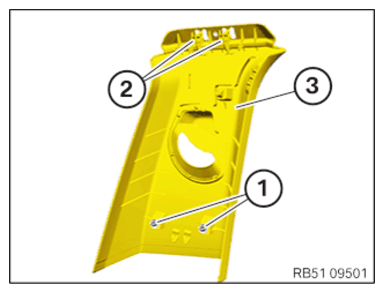

• Check the clips (1) for damage and replace if necessary.
• Check guides (2) for damage and, if necessary, replace B-pillar trim panel (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

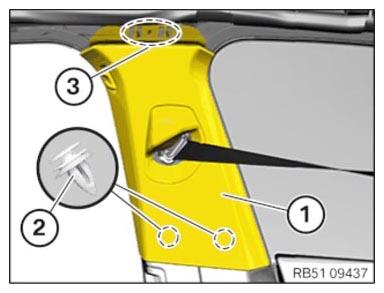

• Fit the B-pillar trim panel (1).
• Guide B-pillar trim panel (1) on the top on the headliner into guides (3).
• Clip B-pillar trim panel (1) into clips (2).
• Check the front and rear of the B-pillar trim panel (1) for the correct fit at the edge protection.

Courtesy of BMW OF NORTH AMERICA, INC.
