Installing the headlining with the panoramic glass sunroof (lowered)

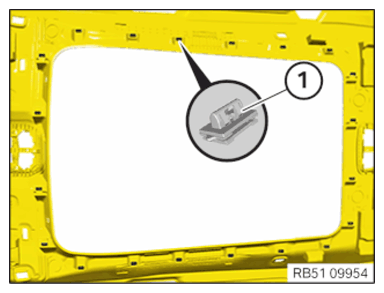

• Check all the clips (1)  on the headlining for damage and, if necessary, replace them.

  Courtesy of BMW OF NORTH AMERICA, INC.

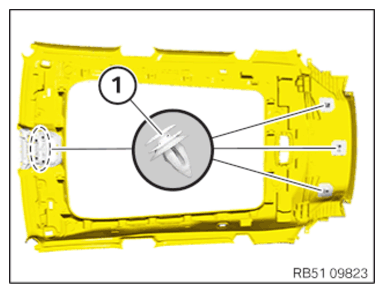

• Check clips (1)  on the headlining for damage and, if necessary, replace them.

Courtesy of BMW OF NORTH AMERICA, INC.

• Place headlining (1)  in the vehicle through the windshield opening with a support person.
• Feed in headlining (1)  at the respective edge protection.
• Clip in headlining (1)  on the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

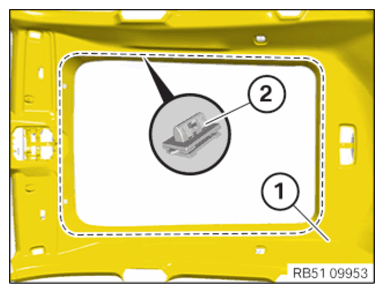

• Clip in the headlining (1)  along the dotted line at the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position and clip in headlining (2)  on the clips (3)  .
• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING D-PILLAR TRIM PANEL .
• Refer to INSTALLING THE HINGE COVER .
• Refer to INSTALLING THE FRONT STORAGE SHELF .
• Refer to INSTALLING COAT HOOK .
• Refer to INSTALLING INTERIOR ROOF LIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
• Refer to INSTALLING THE LEFT AND RIGHT SEATBELT FINISHER STRIP .
• Refer to INSTALLING COVER OF THE LUGGAGE COMPARTMENT SIDE SHELF LEFT AND RIGHT .
• Refer to INSTALLING THE BACKREST SIDE SECTION WITH THE AIRBAG ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE TOP LEFT AND RIGHT OF THE B-PILLAR TRIM PANEL (PARTIALLY REMOVED) .
• Refer to INSTALLING THE COVER FOR THE INTERIOR MIRROR (PARTIALLY REMOVED) .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING FRONT VANITY MIRROR LIGHT .
• Refer to INSTALLING THE SUN VISORS WITH THE COUNTER SUPPORT ON THE LEFT AND RIGHT .
• Refer to INSTALLING A-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE A-PILLAR TRIM PANEL AT THE CENTER LEFT AND RIGHT .
• Refer to INSTALLING THE SIDE COVER ON THE DASHBOARD AT LEFT AND RIGHT .
