Installing the Head-Up Display (HUD)

NOTE: TECHNICAL INFORMATION
Make sure the sleeves are correctly positioned in the support of the instrument panel before the installation of the Head-Up Display.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the associated connector with the head-up display and lock.

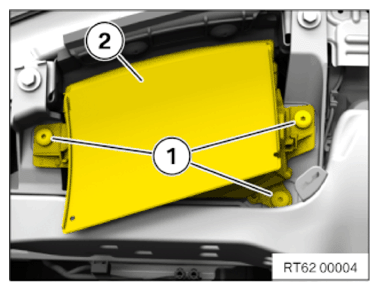

Guide the Head-Up Display (2) into the support.

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATION

Head-Up Display on support for instrument panel
Screw with tappet	tightening torque	8 Nm

Follow-up work

Refer to INSTALLING THE DASHBOARD TRIM .
Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
Refer to INSTALLING SPORTS STEERING WHEEL .
Refer to INSTALLING AIRBAG UNIT .
Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
Refer to INSTALLING AUDIO CONTROL UNIT .
Refer to INSTALLING DECORATIVE STRIP ON CENTER OF DASHBOARD .
Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
Refer to INSTALLING THE TRIM ON THE LEFT AND RIGHT DASHBOARD .
Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
Refer to INSTALLING THE TOP WINDSHIELD PANEL TRIM (BOTTOM PART) .
Refer to INSTALLING THE LEFT AND RIGHT VANITY MIRROR LIGHT .
Refer to INSTALLING THE COUNTER SUPPORT FOR THE SUN VISOR .
Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
Refer to INSTALLING THE MID-RANGE SPEAKER IN THE INSTRUMENT PANEL .
Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
Refer to INSTALLING GLOVE COMPARTMENT .
Refer to INSTALLING THE CENTER CONSOLE .
Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
Refer to INSTALLING THE CENTER STACK TRIM .
Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
Refer to INSTALLING RIGHT FOOTWELL TRIM .
Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
