Installing the dashboard trim

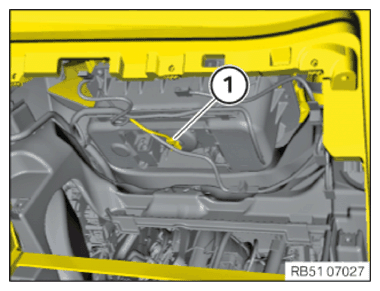

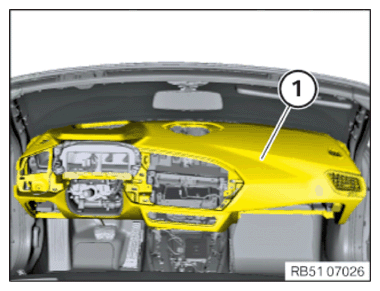

• Carefully insert dashboard trim (1)  in the vehicle while guiding in the cables.
• Carefully guide in dashboard trim (1)  further and position it correctly.
• Ensure that no cables are jammed.

  Courtesy of BMW OF NORTH AMERICA, INC.

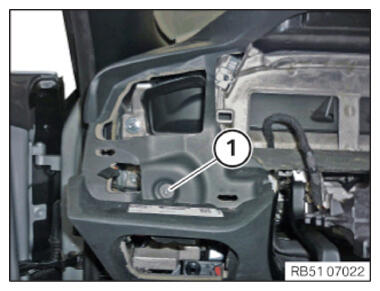

• Tighten down screw (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Dashboard
  Screw	Tightening torque	2.6 Nm

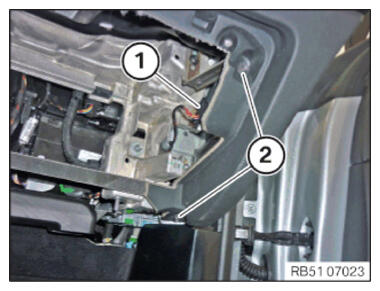

• Connect and lock the connector (1)  at the front passenger airbag.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Dashboard
  Screw	Tightening torque	2.6 Nm

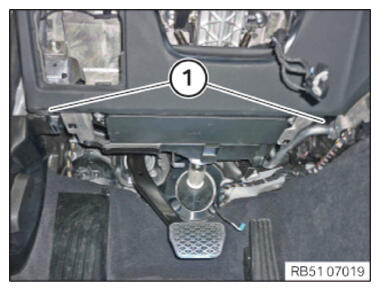

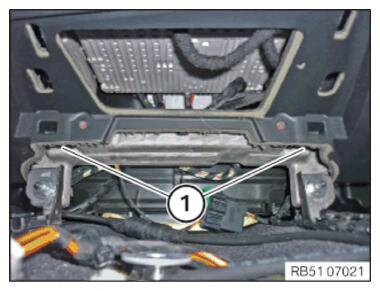

• Mount connector (1)  on the dashboard trim.
• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Dashboard
  Screw	Tightening torque	2.6 Nm

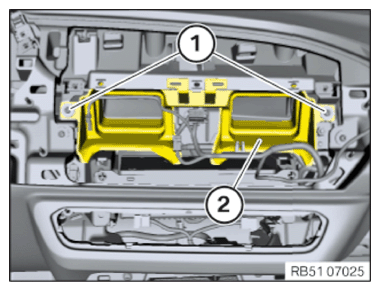

• Install air duct (2)  .
• Replace screws (1)  .

  Parts  : Screws

• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Air duct to dashboard support
  Screw Replace screws.	tightening torque	1.8 Nm

• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Dashboard
  Screw	Tightening torque	2.6 Nm

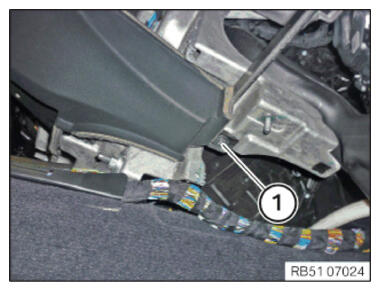

• Tighten down screw (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Dashboard
  Screw	Tightening torque	2.6 Nm

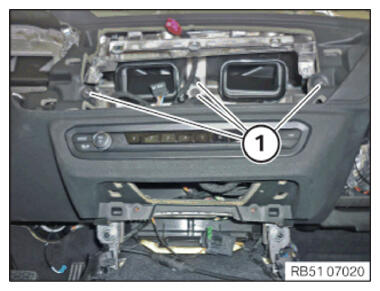

• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Dashboard
  Screw	Tightening torque	2.6 Nm

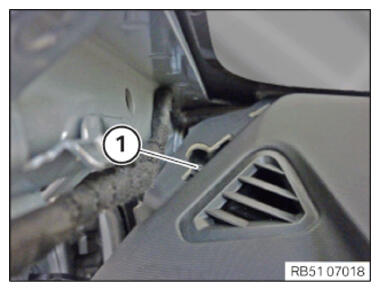

• Tighten down screw (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Dashboard
  Screw	Tightening torque	2.6 Nm

Installing the trim for the head-up display

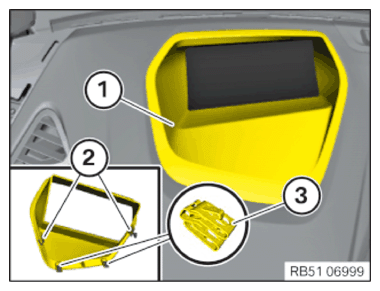

• Check the clamps (2)  and (3)  for damage.

  Malfunctioning or missing clamps (2)  and (3)  need to be replaced.

• Correctly position the trim (1)  and engage it in the clamps (2)  and (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
• Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
• Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING SPORTS STEERING WHEEL .
• Refer to INSTALLING AIRBAG UNIT .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING AUDIO CONTROL UNIT .
• Refer to INSTALLING DECORATIVE STRIP ON CENTER OF DASHBOARD .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
• Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
• Refer to INSTALLING THE TRIM ON THE LEFT AND RIGHT DASHBOARD .
• Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to INSTALLING THE TOP WINDSHIELD PANEL TRIM (BOTTOM PART) .
• Refer to INSTALLING THE LEFT AND RIGHT VANITY MIRROR LIGHT .
• Refer to INSTALLING THE COUNTER SUPPORT FOR THE SUN VISOR .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING THE MID-RANGE SPEAKER IN THE INSTRUMENT PANEL .
• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to INSTALLING GLOVE COMPARTMENT .
• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
• Refer to INSTALLING THE CENTER STACK TRIM .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to INSTALLING RIGHT FOOTWELL TRIM .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
