(Installing the trim on the left and right dashboard)

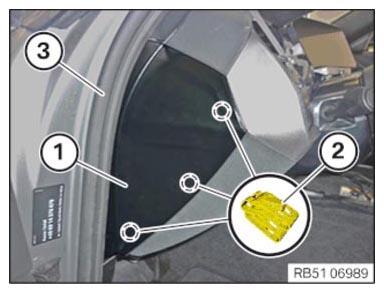

Installing the trim on the dashboard

• Check clamp (2) for damage.

  Defective or missing clamps (2) need to be replaced.

• Carefully feed in the trim (1) on the edge protection (3) and correctly position it.
• Carefully engage the trim (1) on the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

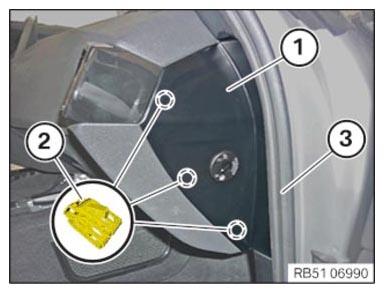

Install the trim on the dashboard on the right

• Check clamp (2) for damage.

  Defective or missing clamps (2) need to be replaced.

• Position the trim (1) and connect and lock the existing connector.
• Carefully feed in the trim (1) on the edge protection (3) and correctly position it.
• Carefully engage the trim (1) on the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
