Install glove compartment

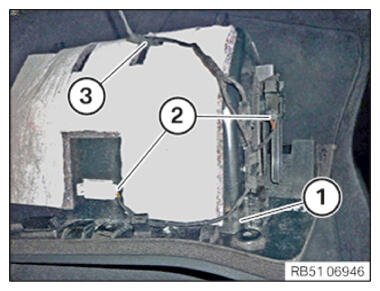

Position glove compartment (1) .
Clip the wiring harness (3) in at the clip.
Connect and lock both connectors (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

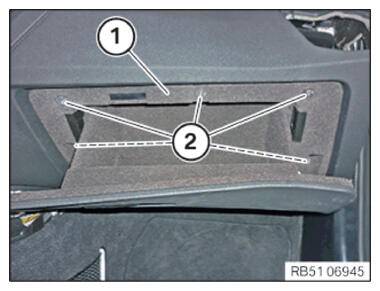

Install glove compartment (1) .
Open the glove compartment (1) .

Tighten down screws (2) .

G16578517

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Glove compartment to dashboard
Oval-head screw	tightening torque	2.8 Nm
