(Install A-pillar trim panel, left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

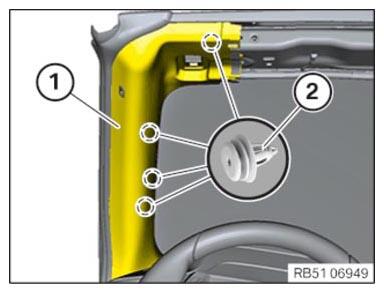

Install the A-pillar trim panel (1) and, if necessary, connect and lock the connector.
Correctly position A-pillar trim panel (1) and clip in at the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
