Installing the instrument cluster (KOMBI)

Courtesy of BMW OF NORTH AMERICA, INC.

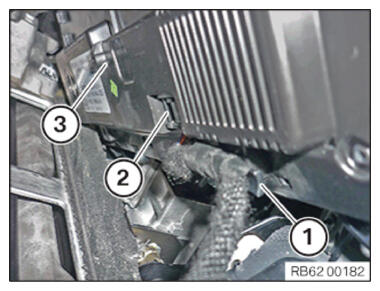

• Connect the connector (2)  to the instrument cluster (KOMBI) (3)  and lock it in place.
• Clip in the cable bracket (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

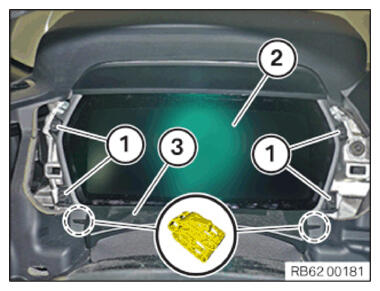

• Guide in the instrument cluster (KOMBI) (2)  and correctly position it.
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Instrument cluster (KOMBI) to support
  Screw	tightening torque	1.8 Nm

• Correctly position the cover (3)  and clip it into the detents at the marked points.

Follow-up work

• Refer to INSTALLING DECORATIVE STRIP ON CENTER OF DASHBOARD .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
• Refer to INSTALLING THE TRIM ON THE DASHBOARD .
