(Install the center stack trim)
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.

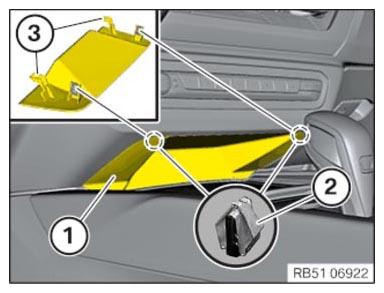

- Check the guides (3) and the clamps (2) on the trim of the center stack (1).
Defective or missing clamps (2) need to be replaced.
In case of defective guides (3), the trim of the center stack (1) needs to be replaced.
- Insert the trim of the center stack (1) into the guides (3) in back and clip it in upward on the clamps (2).
