Install the decorative strip on the dashboard on the left
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

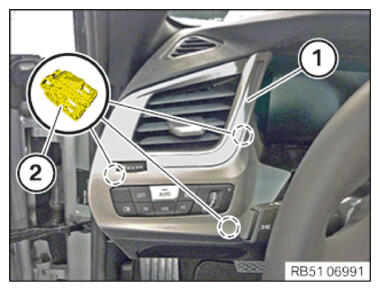

- Check clamps (2)
for damage.
Defective or missing clamps (2) need to be replaced.
- Install the decorative strip (1) and connect and lock the present connector.
- Correctly position the decorative strip (1)
and engage at clamps (2)
.
Follow-up work
- Refer to INSTALLING THE TRIM ON THE DASHBOARD .
