Installing the center armrest storage compartment

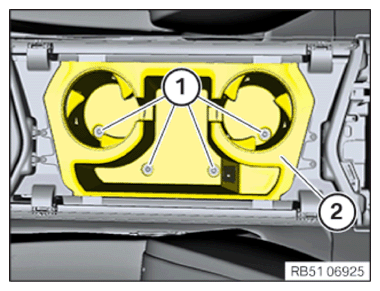

Guide in storage compartment (2) downwards and, if necessary, connect and lock all the connectors.

Tighten down screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Storage compartment on center console
Screw	tightening torque	2.3 Nm
