Installing the mid-range speaker in the instrument panel

• Position the mid-range speaker (2)  .
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

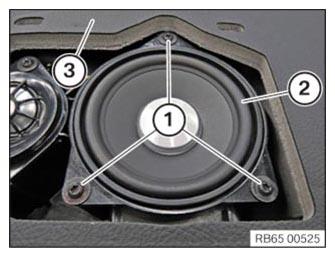

• Insert the mid-range speaker (2)  into the dashboard (3)  .
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Loudspeaker to dashboard/loudspeaker to door
  Screw	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
