Install the center console

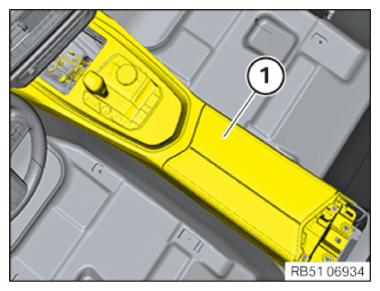

• Feed in and install the center console (1)  .
• Attach any cables to the center console (1)  and connect and lock all the connectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

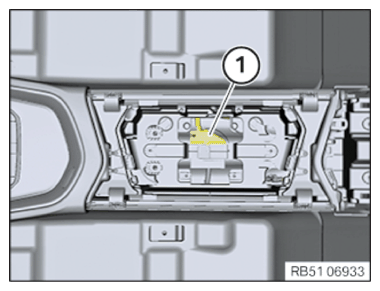

• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

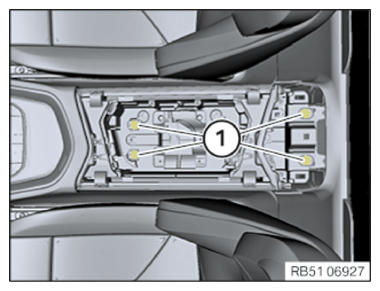

• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Center console to holder
  M6x35 screw	tightening torque	4.6 Nm

• Tighten down screw (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Center console to holder
  M6x35 screw	tightening torque	4.6 Nm

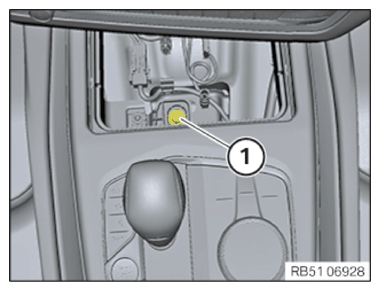

• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Center console to front bracket
  Screw	tightening torque	1.8 Nm

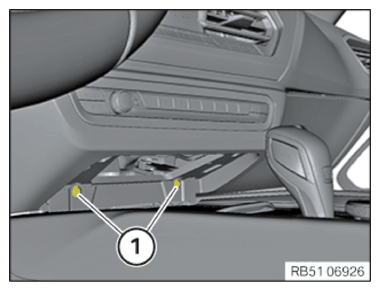

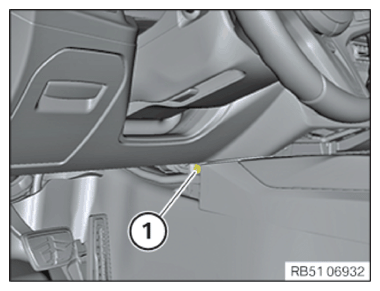

• Tighten down the left and right screw (1)  in the footwell.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Center console to lateral holder
  Screw	tightening torque	2.3 Nm

Follow-up work

• Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
• Refer to INSTALLING THE CENTER STACK TRIM .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to INSTALLING RIGHT FOOTWELL TRIM .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
