Installing the right intake plenum

• Replace the seal (4)  .

  Parts:  Seal

• Only during replacement of the intake plenum:

  Loosen screws (1)  .

  Unlock pressure sensor (2)  on the retaining tab (3)  .

  Remove pressure sensor (2)  .

  Position pressure sensor (2)  .

  Retaining tab (3)  must audibly lock in.

  Tighten down screws (1)  .

  TIGHTENING TORQUE SPECIFICATION



  Pressure sensor
  screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and position the left intake plenum.
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Intake plenum
  M6 screw	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

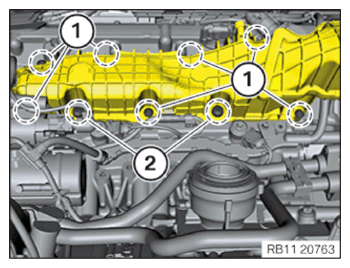

• Tighten down screws (2)  .
  TIGHTENING TORQUE SPECIFICATION



  Intake plenum
  M8 screw	Tightening torque	21.4 Nm

• Connect plug connection (1)  and lock.
• Connect and lock tank vent line (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fix wiring harness fasteners (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.
