Secure the wishbone on the top left and right on the swivel bearing

NOTE: Perform the steps on the right and left side.

Replace screw and nuts on right.
Parts: Screw

Parts: Nut

Fastening the wishbone to the top of the swivel bearing

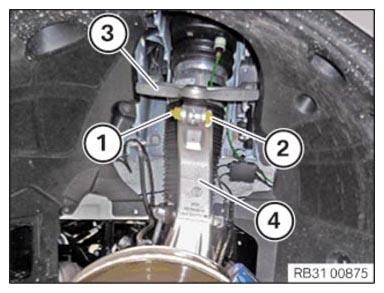

Position the pin of the top control arm (3) in the bore of the swivel bearing (4).
Replace the screw (2) and the nut (1).
Parts: Nut

Parts: Screw
Insert screw (2).

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Upper wishbone to swivel bearing
M10 Replace screw and nut.	Tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
