Installing the upper oil sump section

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

NOTE: TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.

NOTE: TECHNICAL INFORMATION
Microencapsulated screws must be replaced and may not be reused.
The screw lining must be completed within 10 minutes, as the hardening begins after this time period. Microencapsulated screws must not be retightened.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

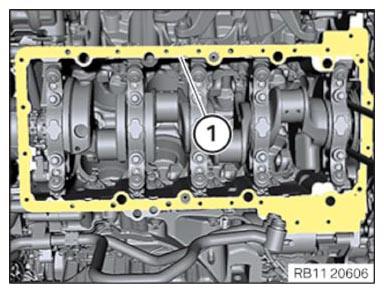

Clean sealing surface (1).

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
Clean sealing surface (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

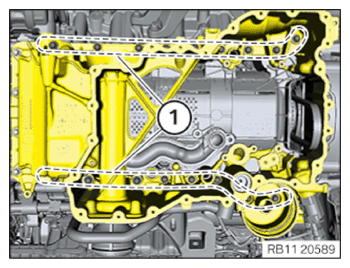

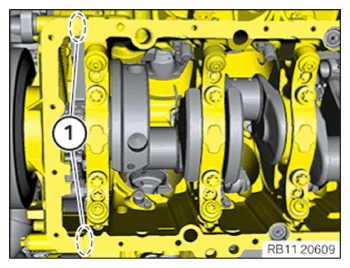

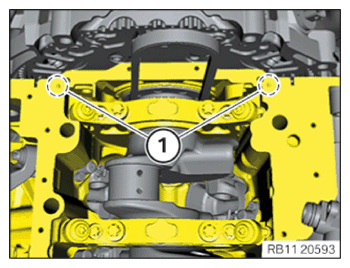

Lightly apply sealing compound at the separation points (1) of the crankcase.

SEALING COMPOUND SPECIFICATION

Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature

50 ml, Cartridge

83190404517

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

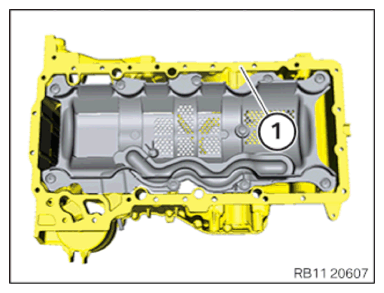

Coat the separation points (1) of the crankcase with sealant.

SEALING COMPOUND SPECIFICATION

Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature

50 ml, Cartridge

83190404517

Courtesy of BMW OF NORTH AMERICA, INC.

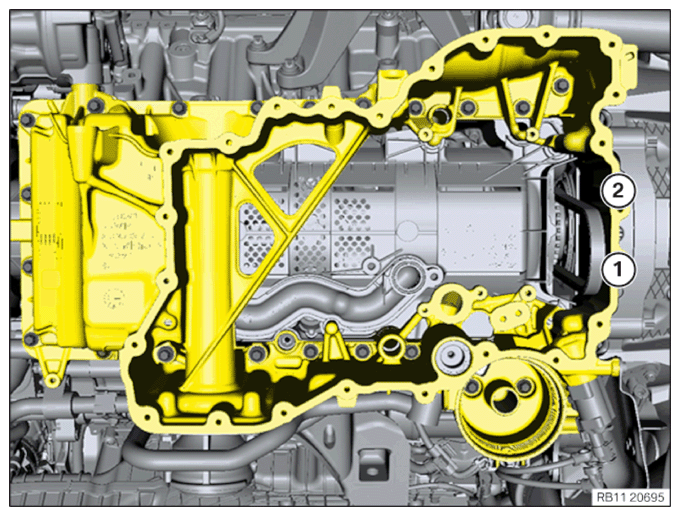

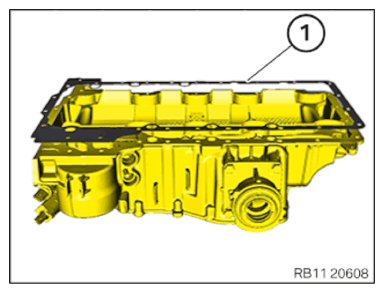

Position seal (1) on upper oil sump section.

Courtesy of BMW OF NORTH AMERICA, INC.

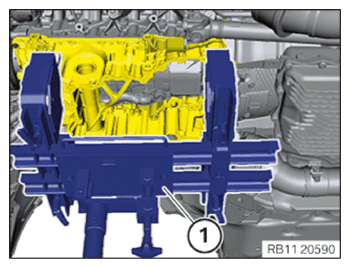

Position oil pan on transmission jack.
Position transmission jack with upper oil sump section.

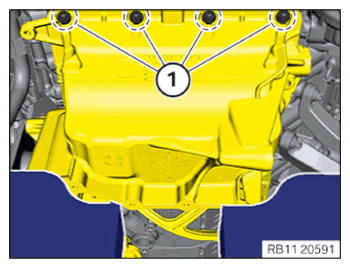

Hand-tighten the bolts (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws (1).
Parts: Screws
Hand-tighten the bolts (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Lower and remove transmission jack (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws in areas (1).
Parts: Screws
Tighten screws in areas (1) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

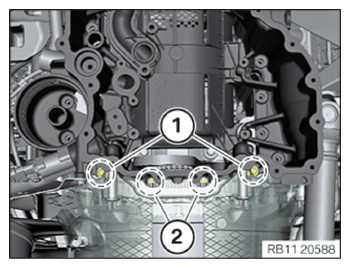

Replace screws (1).
Parts: Screws
Hand-tighten the bolts (1).
Replace screws (2).
Parts: Screws
Using the special tool 0 496 646 (11 4 410), tighten the screws (2) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

Observing the tightening sequence 1 for the upper oil sump section

Upper oil sump section

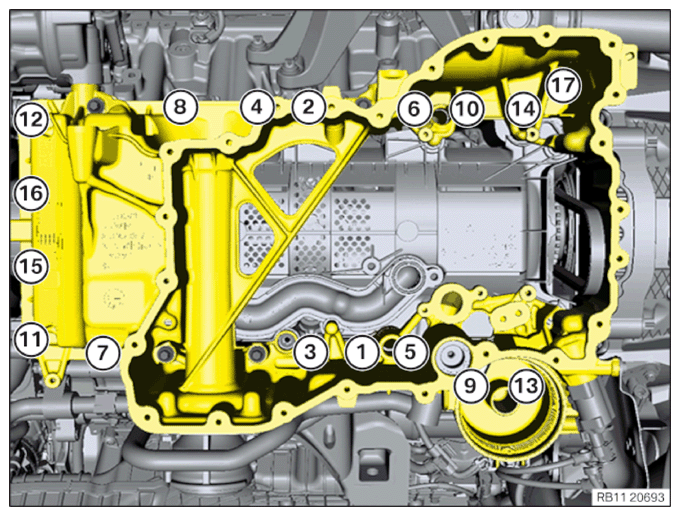

Fig 1: Upper Oil Sump Section Screws Tightening Sequence (1 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws in the sequence (1) to (17).

TIGHTENING TORQUE SPECIFICATIONS

Upper oil sump section to crankcase
M6x25 screw	Tightening torque	10 Nm

Observing the tightening sequence 2 for the upper oil sump section

Upper oil sump section

Fig 2: Upper Oil Sump Section Screws Tightening Sequence (2 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws in the order (1) to (6).

TIGHTENING TORQUE SPECIFICATIONS

Upper oil sump section to crankcase
M8x45 screw Replace screw.	tightening torque	24 Nm

Following the tightening sequence 3 for the upper oil sump section

Upper oil sump section

Fig 3: Upper Oil Sump Section Screws Tightening Sequence (3 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten bolts in ascending order (1) to (17).

TIGHTENING TORQUE SPECIFICATIONS

Upper oil sump section to crankcase
M6x25 screw	Angle of rotation	90°

Following the tightening sequence 4 for the upper oil sump section

Upper oil sump section

Fig 4: Upper Oil Sump Section Screws Tightening Sequence (4 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the bolts in ascending order (1) to (6).

TIGHTENING TORQUE SPECIFICATIONS

Upper oil sump section to crankcase
M8x45 screw Replace screw.	tightening torque	24 Nm

Observing the tightening sequence 5 for the upper oil sump section

Upper oil sump section

Fig 5: Upper Oil Sump Section Screws Tightening Sequence (5 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws in ascending order (1) to (2) with 10 Nm.

TIGHTENING TORQUE SPECIFICATIONS

Upper oil sump section to crankcase
M6x25 screw	Tightening torque	10 Nm

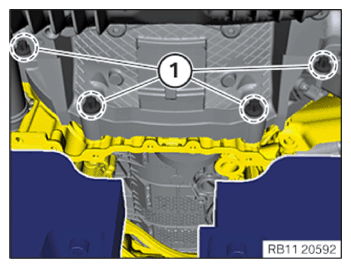

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Transmission to engine
M8	tightening torque	19 Nm
M10	tightening torque	38 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace oil filter element

Replacing the oil filter element with the oil drain plug

Replace oil drain plug (1) with sealing ring (2).
Parts: Oil drain plug with the sealing ring
Coat sealing ring (2) with engine oil.
Manually screw the oil drain plug (1) into the oil filter housing (3) by a few turns.

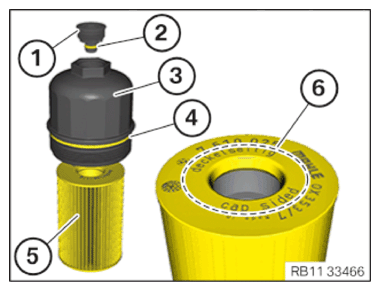

Pull out oil filter element (5) from oil filter housing (3).
Release the sealing ring (4) with a screwdriver from the oil filter housing (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace sealing ring (2) and oil filter (5).
Parts: Sealing ring, oil filter
Mount the sealing ring (4) in the groove on the oil filter housing.
Coat sealing ring (4) with engine oil.
Observe the installation position (6) when inserting the oil filter element (5) into the oil filter housing (3).
Oil filter element (5) must engage audibly.

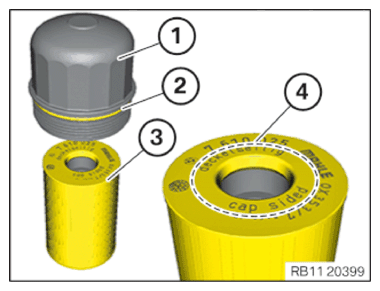

Replacing the oil filter element without the oil drain plug

Pull the oil filter element (3) out of the oil filter housing (1).
Release the sealing ring (2) with a screwdriver from the oil filter housing (1).
Mount the sealing ring (2) in the groove on the oil filter housing.
Replace sealing ring (2) and the oil filter.
Parts: Sealing ring, oil filter
Coat the sealing ring (2) with engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.
Observe the installation position (4) when inserting the oil filter element (3) into the oil filter housing (1).
Oil filter element (3) must engage audibly.

Cleaning the oil filter element and oil filter housing

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

Version A:

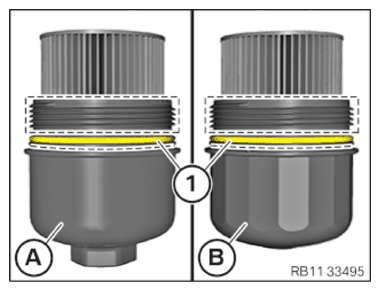

Clean oil residue from the oil filter in the marked areas with brake cleaner and a lint-free rag.
Ensure that sealing ring (1) is coated with engine oil.
Version B:
Clean oil residue from the oil filter in the marked areas with brake cleaner and a lint-free rag.
Ensure that sealing ring (1) is coated with engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.

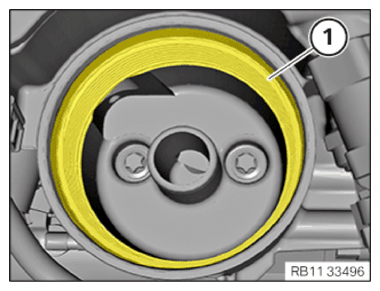

Clean the oil filter housing in area (1) with a brake cleaner and a lint-free cloth to remove the oil residue.

Courtesy of BMW OF NORTH AMERICA, INC.

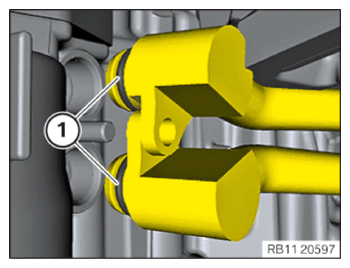

Replace the O-rings (1).
Parts: O-rings
Coat the O-rings (1) with engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.
Position engine oil lines (2).

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Engine oil line to upper oil sump section
Nut M8	Tightening torque	18 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

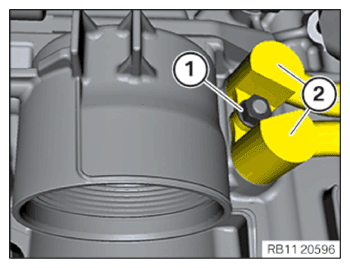

Position oil filter housing (1) with filter, and screw in a few threads by hand.

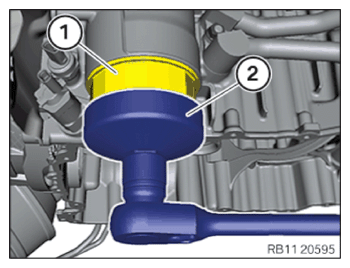

Position special tool 0 493 936 (11 9 240) (2) on the oil filter housing.

Tighten oil filter housing (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Oil filter housing/special tool
S88.5x3	1. Joining torque	40 Nm
	2. Release oil filter housing/special tool.	180°
	3. tightening torque	40 Nm

Connect connectors (1) and lock.
Engage the cable bracket (2).

Courtesy of BMW OF NORTH AMERICA, INC.
