Installing left output shaft

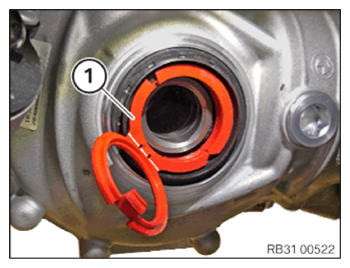

• Fold open the assembly protection ring (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release swivel bearing (1) from the upper wishbone out of special tool 2 413 317.

  Swivel bearing (1) must not hang down from the brake hose.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed the output shaft in the front axle transmission.

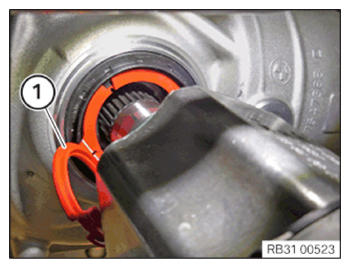

• Pull on the lug (1) of the installation protection ring until one of the two predetermined breaking points breaks.
• Pull out and dispose of the installation protection ring.

  Courtesy of BMW OF NORTH AMERICA, INC.

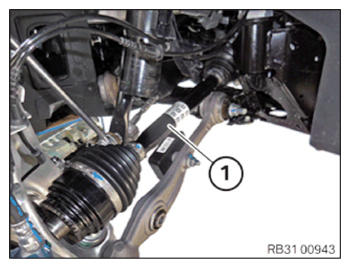

• Slide output shaft (1) up to the stop in the front axle transmission with a jerk.

The output shaft (1) must engage noticeably and audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CHECK/ADD FRONT AXLE TRANSMISSION OIL .
• Refer to INSTALL THE STIFFENING PLATE .
• Refer to INSTALL SPRING SUSPENSION STRUT .
• Refer to FASTENING THE WISHBONE TO THE TOP OF THE SWIVEL BEARING .
• Refer to FASTENING THE BRAKE HOSE AND THE CABLE .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
