Installing windshield panel cover

NOTE: TECHNICAL INFORMATION
Before installing the cowl cover, it is imperative to check the correct routing and firm fit of the 48V line.
An incorrectly laid or attached 48V line can be damaged by the wiper kinematics.

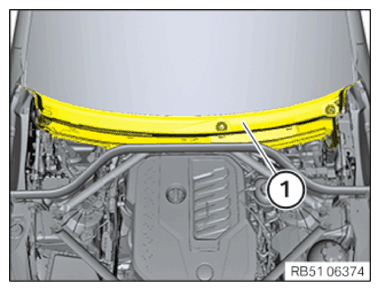

Guide in cowl cover (1) and snap it into the retaining strip, starting on the side.
Engage cowl cover (1) in the detents of the left and right water drain channels.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
