Installing fan cowl

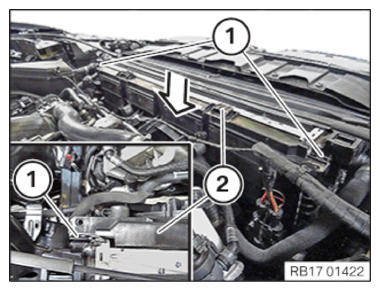

• Insert and install the fan cowl (2) in the direction of the arrow.
• Ensure that the locking mechanisms (1) engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure clamps (3).
• Connect connectors (2) and lock.

  The connector (2) must engage audibly.

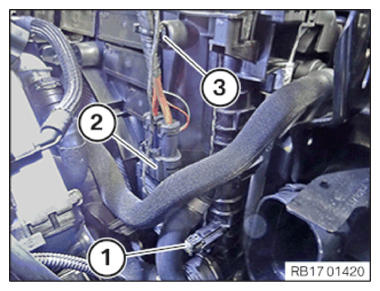

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

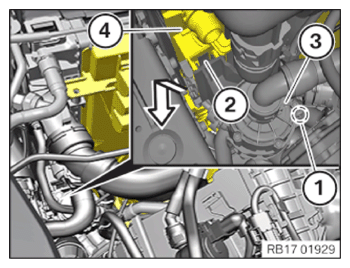

• Feed in auxiliary coolant pump (3) in direction of arrow on the coolant radiator (4) and install.
• Ensure that the locking mechanism (2) engages audibly.
• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

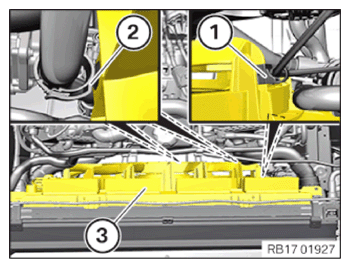

• Secure the bracket (2) to the fan cowl (3).
• Secure the clamp (1) on the fan cowl (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

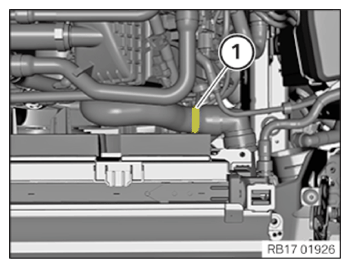

• Clip in the wiring harness mounting (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT and INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
