Securing the transmission oil cooling bracket

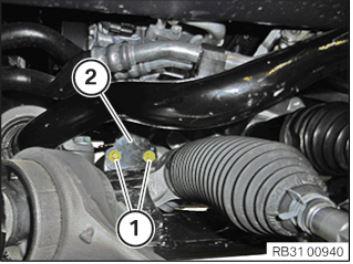

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the bracket (2) on the front axle support.
• Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Standard screw connection
M6	tightening torque	8 Nm

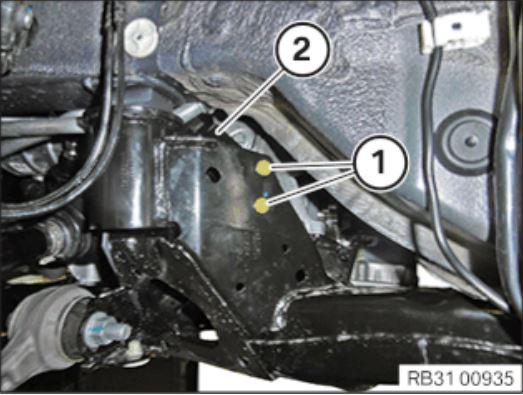

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the bracket (2) on the front axle support.
• Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Standard screw connection
M6	tightening torque	8 Nm
