Body Equipment -- Repair (2 Of 2) X5 M (F95)
>>
51 64 Front Panel, Front End
>>
51 64 035 Removing and installing/replacing the upper section cross connection (X5 M)
>>
Install upper cross connection

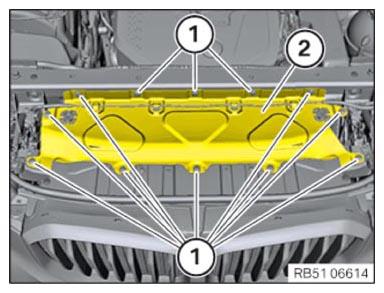

Install upper cross connection
Feed in cross connection (2).
Attach the Bowden cable.
Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
Front cross connection
screw
Tightening torque
19 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT
and
INSTALL THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT
.
