Install the wiring harness section of the transmission wiring harness

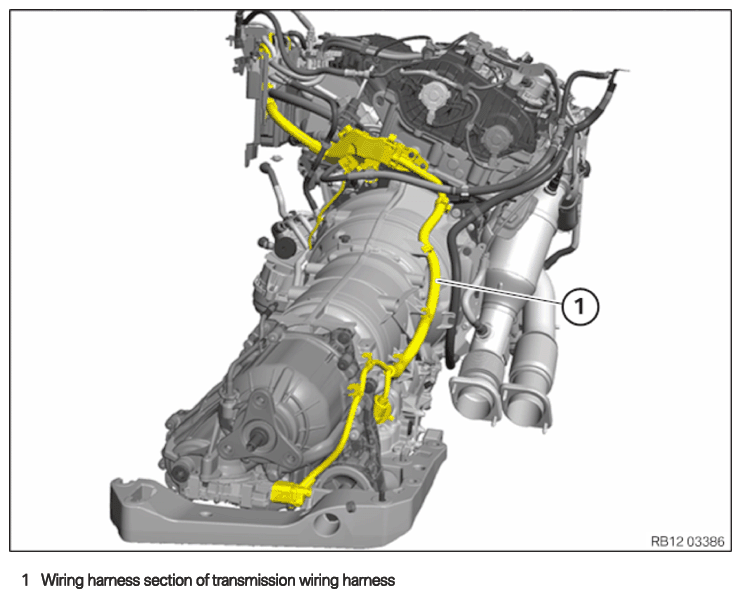

Wiring harness section of transmission wiring harness
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
- Insert and install the wiring harness (1)
for the transmission module.
- Feed in and install the wiring harness section (2) of the transmission wiring harness.

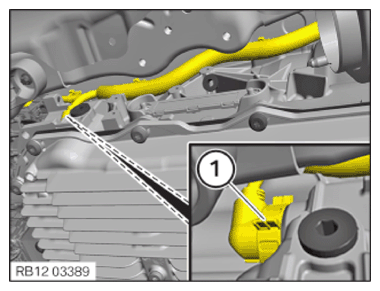

- Secure clamps (1)
.
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.

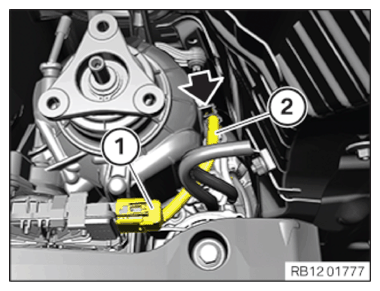

- Thread in the wiring harness section (2) of the supply module and install.
- Secure clamp (arrow).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
Fastening the transmission

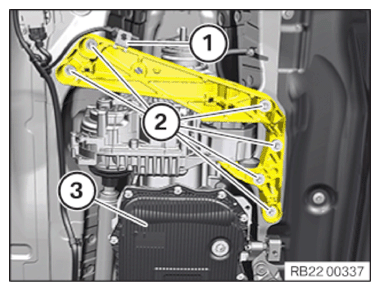

- Move the transmission (3) to the installation position.
- Replace screws (2)
.
Parts: Screws
- Tighten down screws (2) .
TIGHTENING TORQUES SPECIFICATION
| Transmission cross member to body | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |
- Secure the cable with the clamp (1) .
- Loosening the luggage strap (1) .
- Remove special tools 2 219 012 and 0 495 498 (23 4 050) .

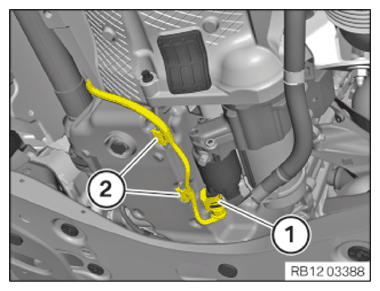

- Secure clamps (2) .
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.

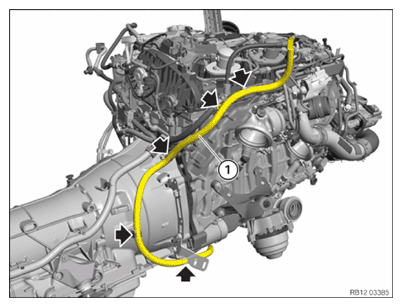

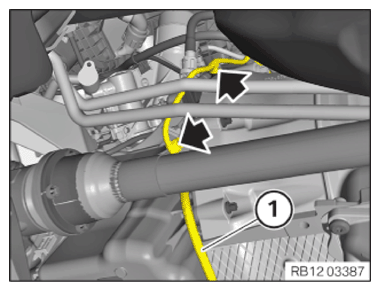

- Feed in and install the wiring harness section (1) of the transmission wiring harness.
- Secure the clamps (arrows).

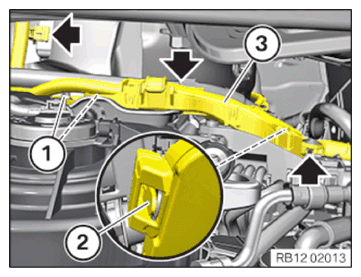

- Feed in and install the wiring harness section (3) of the transmission wiring harness.
- Make sure that the lock (2) engages correctly.
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Cable bracket on rear cylinder head/transmission | ||
|---|---|---|
| M6 x 20 | Tightening torque | 10 Nm |
- Secure the clamps (arrows).

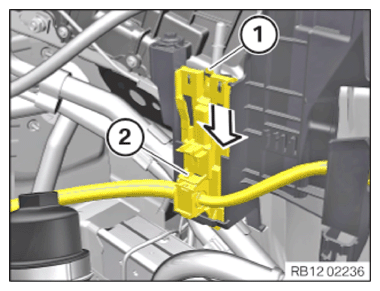

- Insert the cable bracket (2)
in the arrow direction and install it.
The lock (1) must engage audibly.

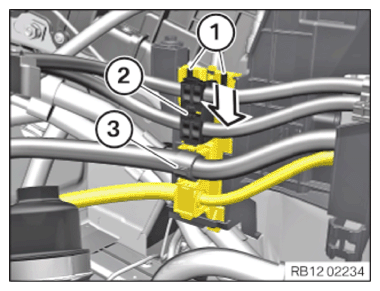

- Guide in and lock cable clip (3)
.
The cable clip (3) must engage audibly.
- Insert the cable bracket (2)
in the arrow direction and install it.
The locks (1) must engage audibly.
Follow-up work
- Refer to INSTALLING TRANSMISSION MOUNTING BRACKET (ALL-WHEEL DRIVE VEHICLE) .
- Refer to INSTALLING THE TRANSMISSION BEARING SUPPORT .
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
- Refer to INSTALLING THE HEAT SHIELDS .
- Refer to INSTALLING THE RETAINING PLATE AND HEAT SHIELD .
- Refer to SECURING UNDERBODY PANELING ON LEFT AND RIGHT SIDE .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING CENTER STIFFENING PLATE .
- Refer to IF INSTALLED: INSTALLING THE RIGHT AND LEFT TORSION STRUTS .
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING COVER OF THE DME CONTROL UNIT .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE SECOND END PANEL UNDERNEATH .
- Refer to INSTALLING THE COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR HOOD SEAL .
