Securing underbody paneling on left and right side

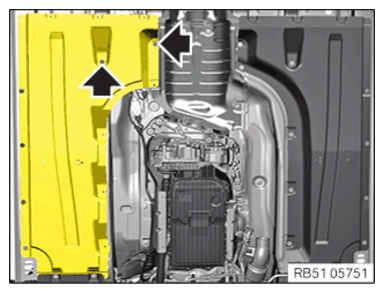

• Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Undershield
Screw	Tightening torque	2.6 Nm
Plastic nut	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

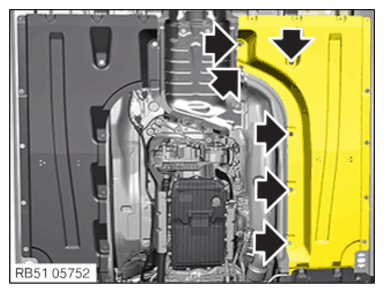

• Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Undershield
Screw	Tightening torque	2.6 Nm
Plastic nut	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
