Install exhaust system

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Check all the rubber mounts (1) of the exhaust system for damage.
Replaced damaged rubber mounts.
Parts: Rubber mount

Courtesy of BMW OF NORTH AMERICA, INC.

Version A:

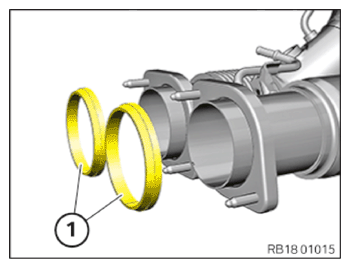

Remove the seals (1) from the catalytic converters (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the seals (1).
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

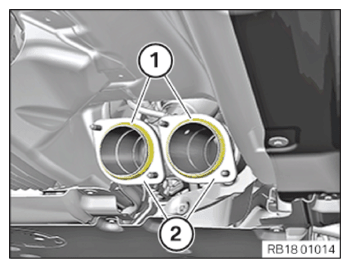

Install the seals (1) on the catalytic converters (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

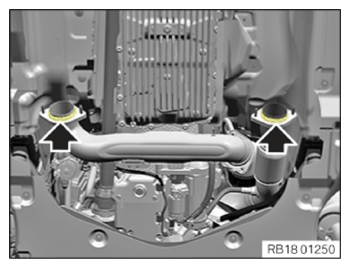

Replace seals (arrows).
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

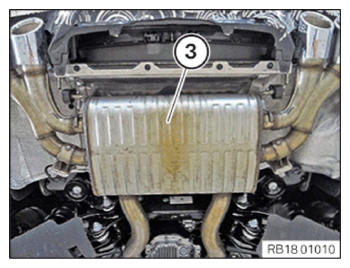

Insert and install the exhaust system (3) with the help of a support person.

Courtesy of BMW OF NORTH AMERICA, INC.

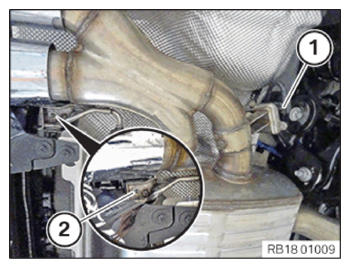

Replace nut (2).
Parts: Nut
Tighten nut (2).

TIGHTENING TORQUES SPECIFICATION

Rear silencer to body/bumper support
M8 Replace nuts.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.

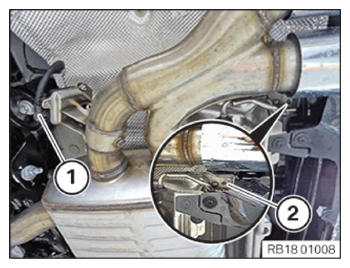

Replace nut (2).
Parts: Nut
Tighten nut (2).

TIGHTENING TORQUES SPECIFICATION

Rear silencer to body/bumper support
M8 Replace nuts.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.
Version A:
Replace nuts (1).

Parts: Nuts
Tighten nuts (1).

TIGHTENING TORQUES SPECIFICATION

Exhaust system to rear axle carrier
M8 Nut Replace nuts.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

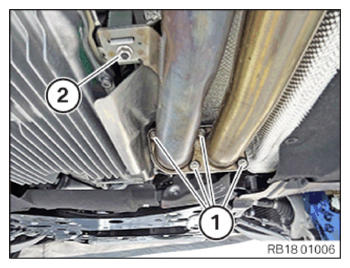

Replace nut (2).
Parts: Nut
Tighten nut (2).

TIGHTENING TORQUES SPECIFICATION

Front pipe/front silencer/gasoline particulate filter to the transmission holder
M8 Replace nut.	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace nuts (1).
Parts: Nuts
Tighten nuts (1).

TIGHTENING TORQUES SPECIFICATION

Exhaust system on catalytic converters
M8 Replace nuts.	1. Tightening torque	5 Nm
M8 Replace nuts.	2. Tightening torque	24 Nm

Version B:

Tighten nuts (1).

TIGHTENING TORQUES SPECIFICATION

Exhaust system to catalytic converters/intermediate pipe
M8 Replace nut.	1. Tightening torque	5 Nm
M8 Replace nut.	2. Tightening torque	24 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nuts (1).

TIGHTENING TORQUES SPECIFICATION

Exhaust system to catalytic converters/intermediate pipe
M8 Replace nut.	1. Tightening torque	5 Nm
M8 Replace nut.	2. Tightening torque	24 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

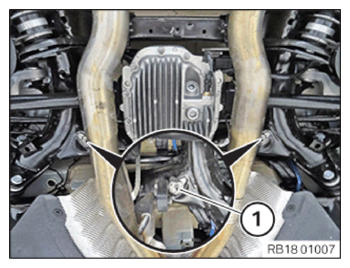

Replace the screw (1).
Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Exhaust system on the transmission cross member
M8x25 Replace screw.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the screw (1).
Parts: Screw
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Exhaust system on the transmission cross member
M8x25 Replace screw.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

If necessary, coat the thread of the union nut with assembly paste.

CONSUMABLE SPECIFICATION

High-temperature assembly paste

10 g, Tube

83230309003

Courtesy of BMW OF NORTH AMERICA, INC.

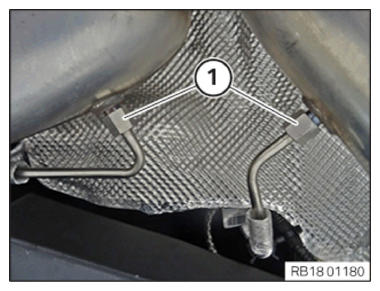

Tighten union nuts (1).

TIGHTENING TORQUES SPECIFICATION

Pressure line union nut
Pressure line union nut	Tightening torque	40 Nm

Follow-up work

Refer to INSTALLING CENTER STIFFENING PLATE .
Refer to IF INSTALLED: INSTALLING THE RIGHT AND LEFT TORSION STRUTS .
Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
