If installed: Install the right and left torsion struts

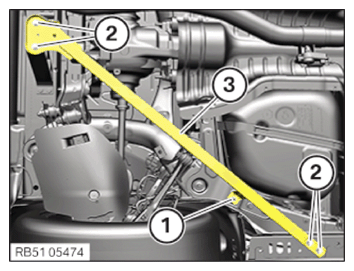

• Insert and install the torsion strut (3) on the left.
• Replace screws (2).

  Parts:  Screws

• Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATION

Torsion strut to mounting
M12 Replace screws.	Tightening torque	100 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Torsion strut to compression strut
M8	tightening torque	28 Nm

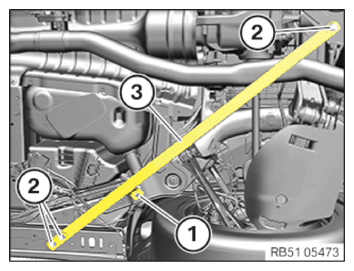

• Insert and install the torsion strut (3) on the right.
• Replace screws (2).

  Parts:  Screws

• Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATION

Torsion strut to mounting
M12 Replace screws.	Tightening torque	100 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Torsion strut to compression strut
M8	tightening torque	28 Nm
