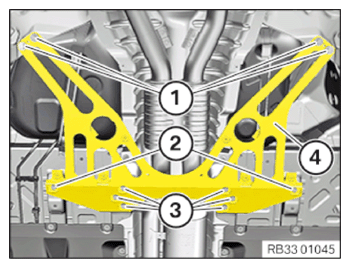

Installing center stiffening plate
- Position the thrust field in the center (4) .
- Pilot screws (1) to (3) .
- Tighten screws (2) and (3) .
TIGHTENING TORQUES SPECIFICATION
| Thrust field, center to body | ||
|---|---|---|
| M8 | Tightening torque | 35 Nm |
- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Center thrust field on thrust arm | ||
|---|---|---|
| M10x21 | Tightening torque | 35 Nm |
Follow-up work
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
