Installing the retaining plate and heat shield
Installing the retaining plate and heat shield

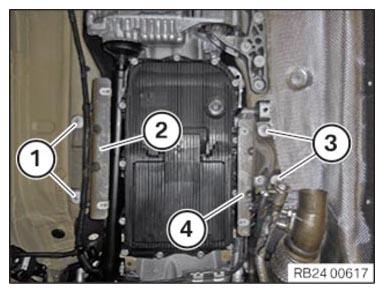

Install the retaining plate (2) and heat shield (4).
Replace the nuts (1) and (3).
Parts:
Nuts
Install the nuts (1) and (3) and tighten.
TIGHTENING TORQUE SPECIFICATION
Retaining plate and heat shield for underbody
Sheet metal nut Replace nuts.
tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
