Install tank cover on left and right
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

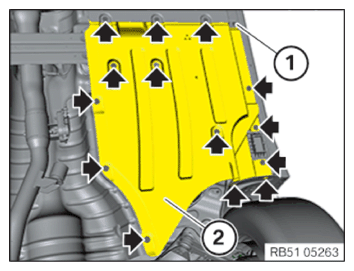

- Guide in tank cover (2) and position correctly.
- Tighten all bolts (arrows) and the plastic nuts (1).
TIGHTENING TORQUE SPECIFICATION
| Undershield | ||
|---|---|---|
| Screw | Tightening torque | 2.6 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
