Install the integrated power supply module (PDM)

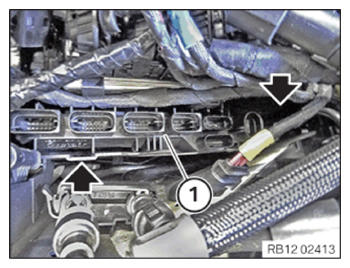

• Insert and install the integrated power supply module (PDM) (1)  .

  The locks (arrows) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

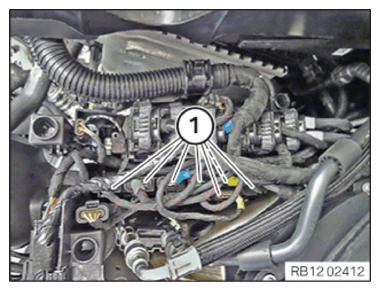

• Connect connectors (1)  and lock.

  The connectors (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING COVER OF THE DME CONTROL UNIT .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
