Adjusting Both Tailgate Hinges

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to REMOVE REAR SEAT BENCH .
• Refer to REMOVING BOTH REAR SIDE TRIM PANELS .
• Refer to REMOVING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
• Refer to REMOVE RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
• Refer to REMOVE THE TRIM PANEL FOR THE STORAGE SHELF .
• Refer to REMOVE LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING THE LOADING EDGE TRIM .
• Refer to REMOVING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to REMOVING THE COVER TO THE STORAGE BOX .
• Refer to REMOVING THE REAR LEFT UPPER SEAT BELT .
• Refer to REMOVING THE SOUND INSULATION ON THE REAR SHELF .

• Left hinge arm:

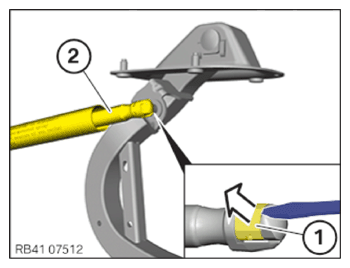

  Lift clamp (1) slightly using a screwdriver, in the direction of the arrow.

• Lift the ball socket of the tension spring (2) for the trunk lid off the ball hub.

  Release the electrical spindle drive on the right hinge arm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Damage to the spindle drive  .
  If the trunk lid is not opened completely, the spindle drive may be damaged  .

  • Remove and install the spindle drive only when the Trunk lid is open to the maximum extent.
  NOTE: TECHNICAL INFORMATION
  The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
  For additional information see: 51 23... Note information on disassembly/installation of ball sockets with clamp
• Unlock plug connection (1) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

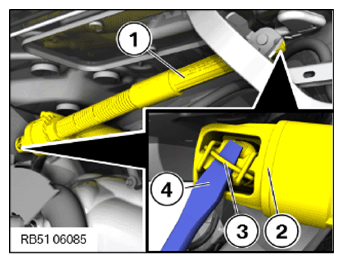

• Before removing the electrical spindle drive (1) for the trunk lid, make sure that the ball socket (2) is relieved.
• Raise each retaining spring (3) on the hinge arm slightly with a small screwdriver (4).
• Detach the electrical spindle drive (1) on the hinge arm from the ball hub and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

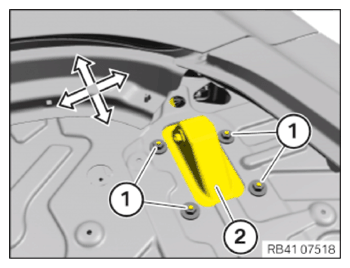

• Slacken nuts (1) until the tailgate hinge (2) can be shifted.
• Shift tailgate hinge (2) horizontally, till the Trunk lid has the specified gap dimension for the side panel.
• Tighten nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Tailgate hinge to body
  Nut M8
  	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

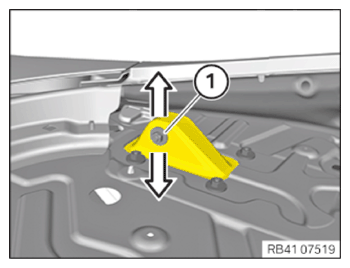

• Slacken the nut (1) until the hinge arm can be shifted.
• Shift the hinge arm vertically until the trunk lid has the specified gap dimension to the side panel.
• Tighten nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Hinge arm to hinge support
  Nut
  	Tightening torque	19 Nm

  Check

• Check the gap dimensions (arrows) between trunk lid and side panels.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Gap dimensions do not correspond to the specifications.

  Measure

  • Adjust tailgate hinge.

  Mounting electrical spindle drive on the right hinge arm

  NOTE: TECHNICAL INFORMATION
  The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
  For additional information see: 51 23... Note information on disassembly/installation of ball sockets with clamp

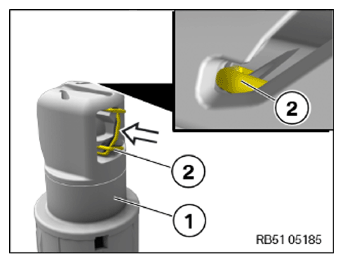

• Before installing the electrical spindle drive (1) at the hinge arm, make sure that the retaining spring (2) is in its initial position.
• Check the retaining spring (2) for damage; if necessary, renew the electrical spindle drive (1) for the tailgate.

  Courtesy of BMW OF NORTH AMERICA, INC.

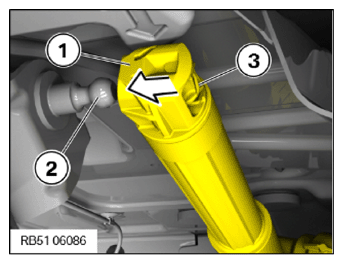

• Press the ball socket (1) onto the ball hub (2) at the hinge arm in the arrow direction until the retaining spring (3) snaps in correctly and audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

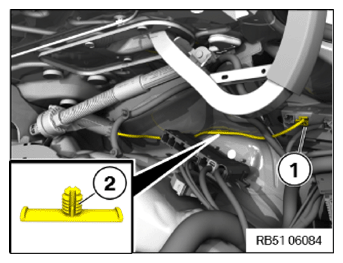

• Clip in the cable clip (2).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: For a better overview the removed condition is shown here.
• Left hinge arm:

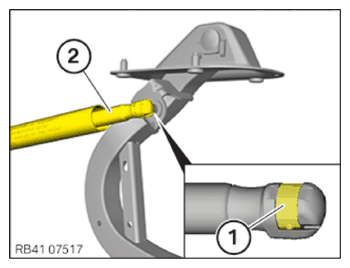

  Check the clamp (1) is fitted correctly.

• Insert the ball socket of the tension spring (2) at the ball pin on the hinge arm.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING SOUND INSULATION ON THE REAR SHELF .
• Refer to INSTALLING THE REAR LEFT UPPER SEAT BELT .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALL LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to INSTALL THE TRIM PANEL FOR THE STORAGE SHELF .
• Refer to INSTALLING THE C-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
• Refer to INSTALLING BOTH REAR SIDE TRIM PANELS .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
