Remove right C-pillar trim panel left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove C-pillar trim panel

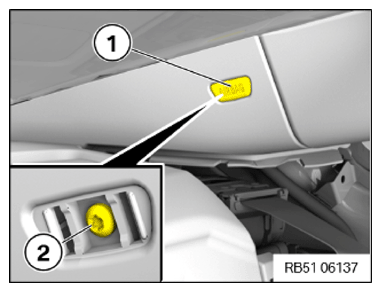

- Unclip the cover (1).
- Loosen screw (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

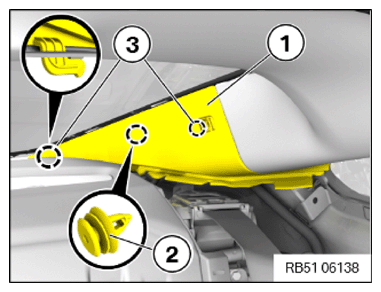

- Unclip clip (2).
- Guide out the C-pillar trim panel (1) from the guides (3) to the front.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
