Installing the C-pillar trim panel on the left and right

Installing C-pillar trim panel

Check

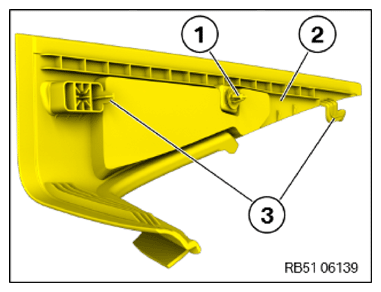

• Check clip (1) on the C-pillar trim panel (2) for damage, replace if necessary.
• Check guides (3) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The guide is damaged.

Measure

• Replace the C-pillar trim panel.

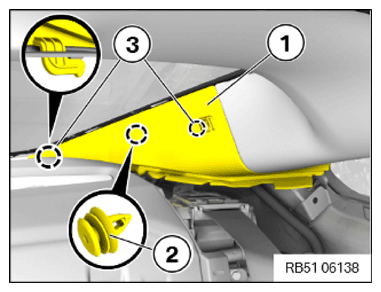

• Thread in C-pillar trim panel (1) in the guides (3) to the rear.
• Clip in the clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

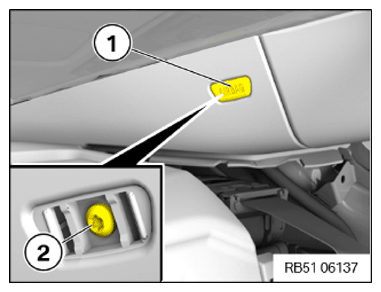

• Tighten down screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the cover (1).
