Removing the sound insulation on the rear shelf

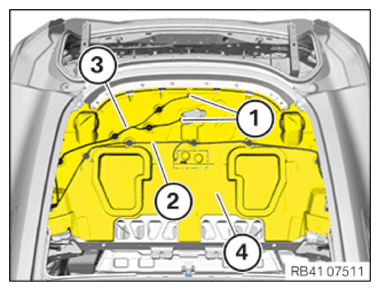

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Unlock and disconnect the plug connections (1).
• Loosen the cable strands (2) and (3) from the luggage compartment floor and set them aside.
• Remove the sound insulation (4).

Courtesy of BMW OF NORTH AMERICA, INC.

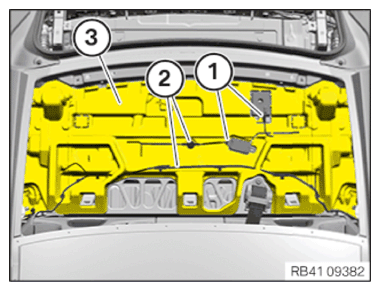

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Unlock and disconnect the plug connections (1).
• Release wiring harness (2) from the cargo area floor and place to one side.
• Remove the sound insulation (3).

Courtesy of BMW OF NORTH AMERICA, INC.
