52 24 005 Removing and installing/replacing rear seat
>>
Remove rear seat bench
Remove rear seat bench

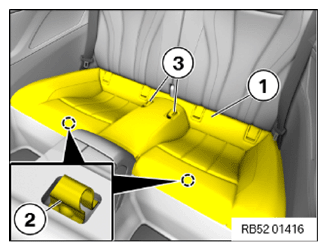

Unclip the rear seat (1) upwards out of the clamps (2) and feed out the seat belt buckles (3).
NOTE:
If a belt lock is available on the safety belt, the screw on the strap fitting does not have to be loosened.
Courtesy of BMW OF NORTH AMERICA, INC.
