Installing sound insulation on the rear shelf

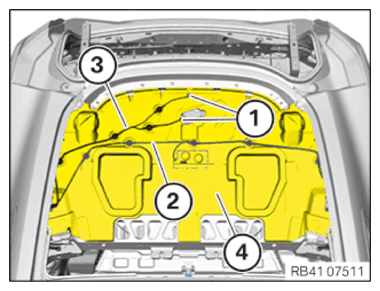

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Install the sound insulation (4).
• Fasten the wiring harnesses (2) and (3) to the luggage compartment floor.
• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

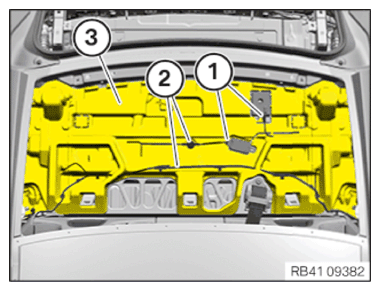

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Install sound insulation (3).
• Fasten wiring harnesses (2) to the cargo area floor.
• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
