Removing both rear side trim panels

NOTE: Description is for left component only. Procedure on the right side is identical.

Remove rear side trim panel

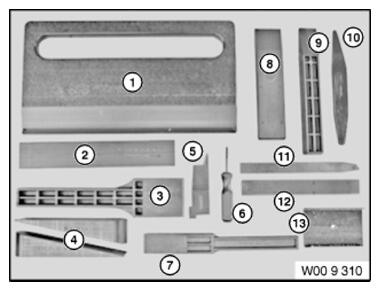

Get the set of special tools 0 493 752 (00 9 329) ready.

Courtesy of BMW OF NORTH AMERICA, INC.

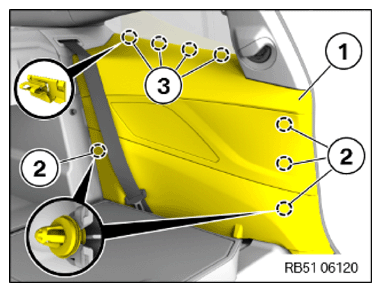

Unclip the rear side trim panel (1) with the clips (2) using a suitable tool.
Unclip the rear side trim panel (1) upwards out of the clamps (3) and feed it out of the edge protection.

Courtesy of BMW OF NORTH AMERICA, INC.

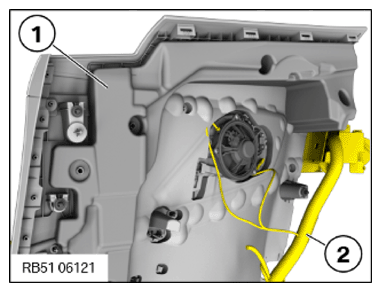

Unlock and disconnect all the plug connections on the rear side trim panel (1) of the wiring harness (2).

Courtesy of BMW OF NORTH AMERICA, INC.
