Installing both rear side trim panels

NOTE: Description is for left component only. Procedure on the right side is identical.

Install rear trim panel

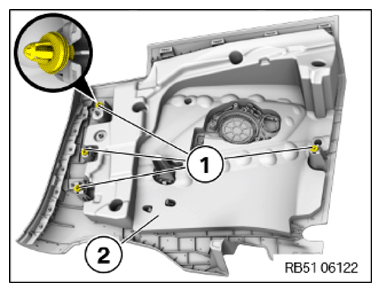

Check the clips (1) on the side trim panel (2) for completeness and damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

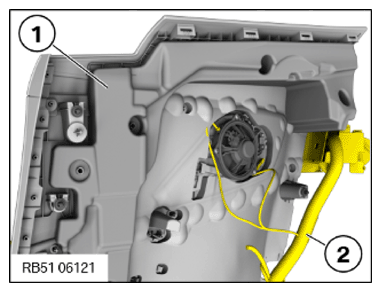

Connect and lock all the connectors on the rear side trim panel (1) of the wiring harness (2).

Courtesy of BMW OF NORTH AMERICA, INC.

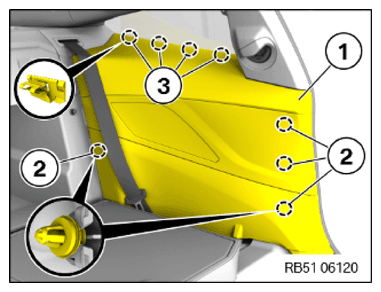

Clip the rear side trim panel (1) into the clamps (3) and feed it into the edge protection.
Clip in the rear side trim panel (1) with the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
